64 11 750 Removing and installing heating control (heater)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio. See 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER (BUILT-IN UNIT)

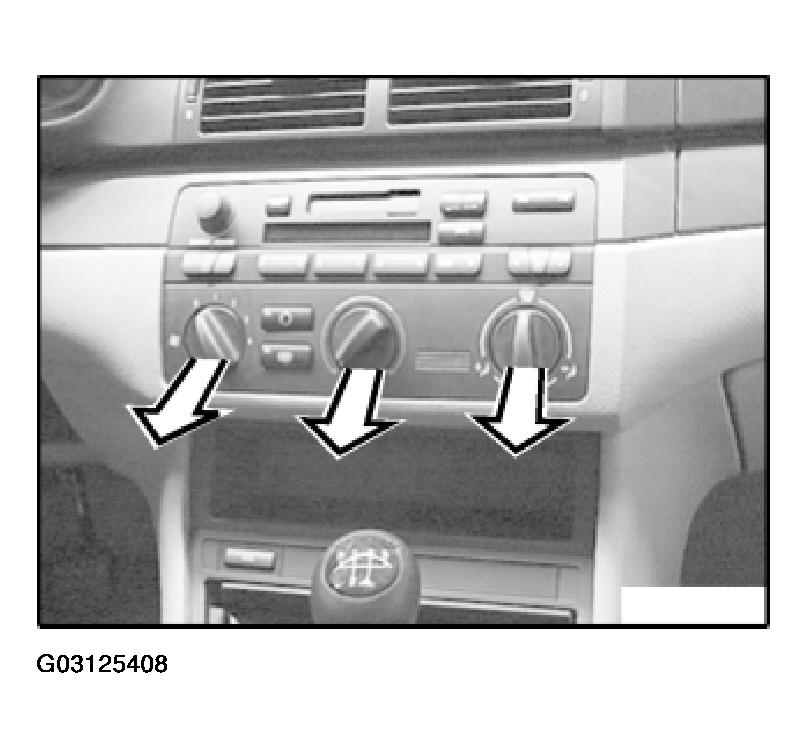

Press down rotary buttons.

Fig 1: Identifying Radio

G03125408

Courtesy of BMW OF NORTH AMERICA, INC.

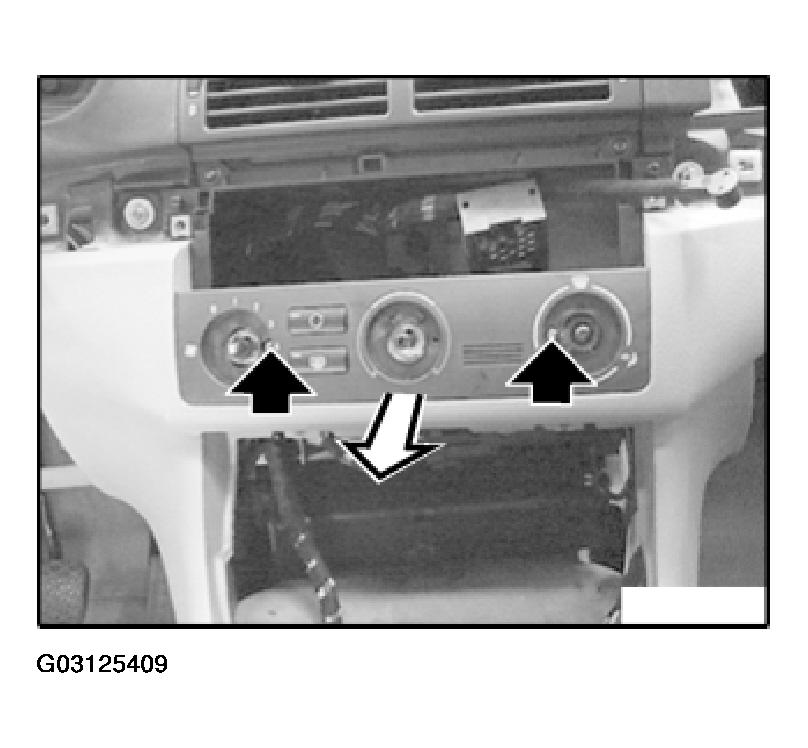

Release screws and remove front panel towards rear.

Fig 2: Removing Front Panel Towards Rear

G03125409

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove center fresh air grill. See 64 22 136 Removing and installing / replacing right fresh-air grill

Unlock retainers (2) and push control panel inwards.

Remove frame (3).

Fig 3: Unlocking Retainers & Push Control Panel Inwards

G03125410

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips and withdraw shaft.

Fig 4: Unlocking Retaining Clips & Withdraw Shaft

G03125411

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips and unclip Bowden cable.

Fig 5: Unlocking Retaining Clips & Unclip Bowden Cable

G03125412

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable.

Fig 6: Removing Bowden Cable

G03125413

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock retaining clips and pull out microswitch (2) in direction of arrow.

Remove heater controls.

Fig 7: Unlocking Retaining Clips & Pull Out Microswitch In Direction Of Arrow

G03125414

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in microswitch with button (1) towards top.

Fig 8: Clipping In Microswitch With Button Towards Top
Courtesy of BMW OF NORTH AMERICA, INC.
