64 11 748 Removing and installing heater controls (A/C control)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 010
Necessary preliminary tasks:
- Remove ignition key from ignition switch.
- Pull fuse 63 from distribution box in glovebox. See

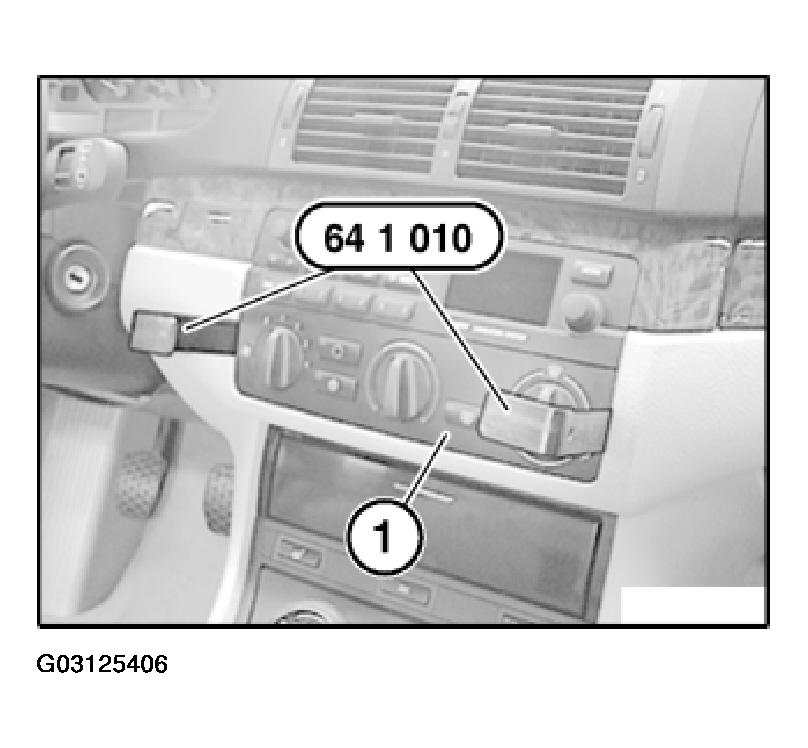

Pull out heater controls (1) with special tool 64 1 010. Unfasten plug connection.
Installation:
Note color coding of plugs.
