64 50... Troubleshooting by pressure measurement (R 134a)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The troubleshooting by pressure measurement described in the following is only possible on A/C systems with uncontrolled compressors.

This includes among others:

E53
E46M47 up to 09/2001
E38 up to 09/1997
E36, E36/7
E34
E32
E31

Connect service station to car and open both valves on the charging hoses. Adjust A/C system at control panel as described for A/C efficiency measurement.

NOTE: The following values apply as normal pressure ranges for ambient temperatures between + 20°C and + 40°C:

Inlet pressure: 1.0 - 2.2 bar
Outlet pressure: 12 - 22 bar

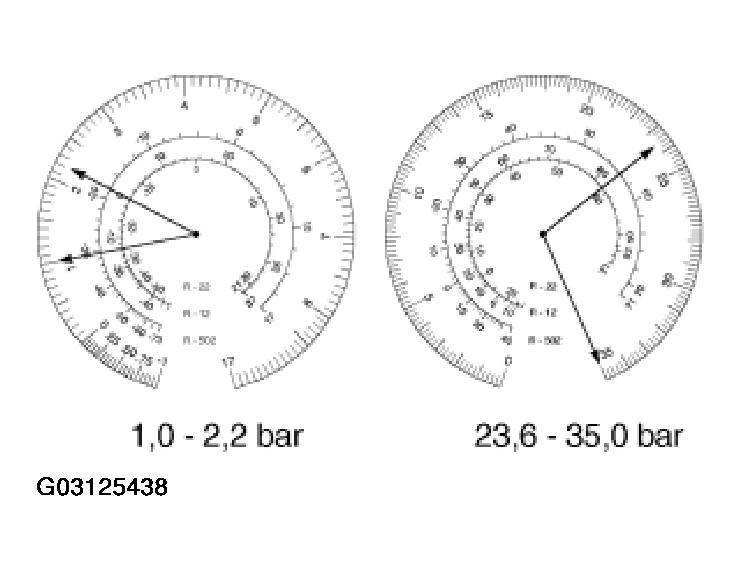

Normal inlet pressure and high outlet pressure indicate an overfilled system, a contaminated condenser or a faulty auxiliary fan.

Remedy:

Draw off, evacuate and refill A/C system. Clean condenser from outside, check auxiliary fan, replace if necessary.

Fig 1: Checking Auxiliary Fan

Courtesy of BMW OF NORTH AMERICA, INC.

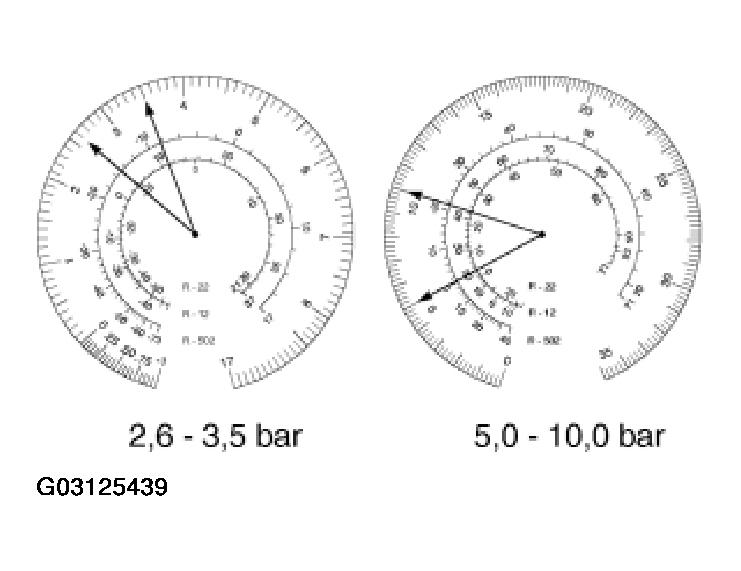

High inlet pressure and low outlet pressure indicate a faulty compressor.

Remedy:

Replace compressor.

Fig 2: Identifying Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

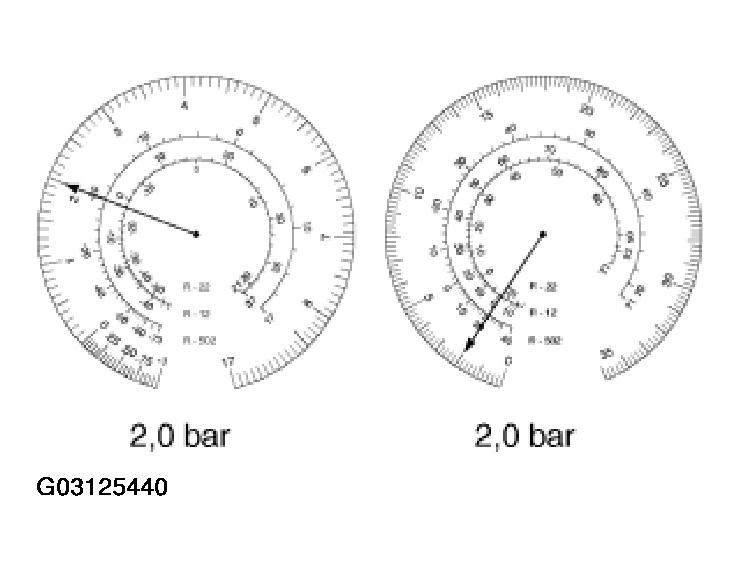

Compressor does not run with equal inlet and outlet pressures.

Remedy:

If the anti-icing facility has shut down the compressor, check evaporator sensor and power supply to clutch. Otherwise check clutch mechanically (by slipping).

Fig 3: Checking Evaporator Sensor & Power Supply To Clutch

Courtesy of BMW OF NORTH AMERICA, INC.

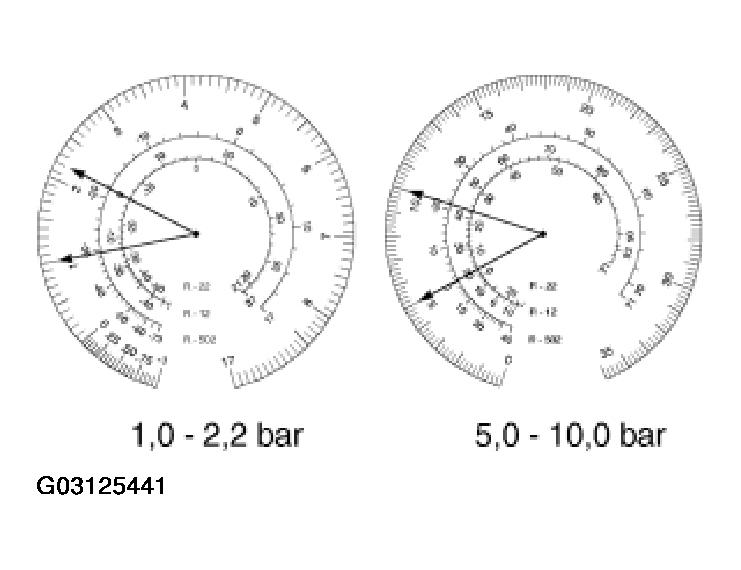

Normal inlet pressure and low outlet pressure indicate an insufficient fill quantity of refrigerant.

Remedy:

Draw off and measure refrigerant.
If the amount drawn off corresponds approx. to the specified fill quantity, check expansion valve for unobstructed through-flow; replace if necessary.
Then evacuate and refill A/C system.

Fig 4: Checking Expansion Valve
Courtesy of BMW OF NORTH AMERICA, INC.

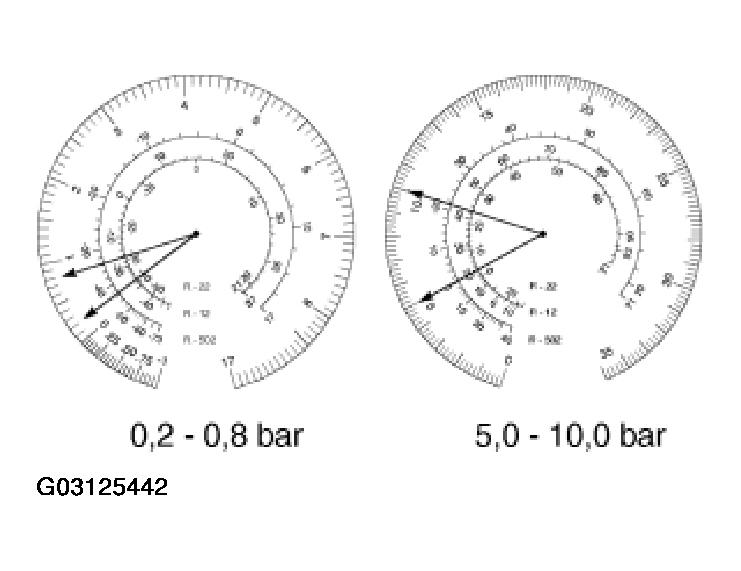

Low inlet pressure and high outlet pressure can be caused by a variety of factors:

Icing of evaporator
Remedy: Check evaporator sensor, replace if necessary.
Obstruction on H.P. side after condenser or on L.P. side
Remedy:

Check drier, expansion valve and pipes in these areas for unobstructed through-flow; clean or replace if necessary.

Fig 5: Checking Drier, Expansion Valve & Pipes
Courtesy of BMW OF NORTH AMERICA, INC.

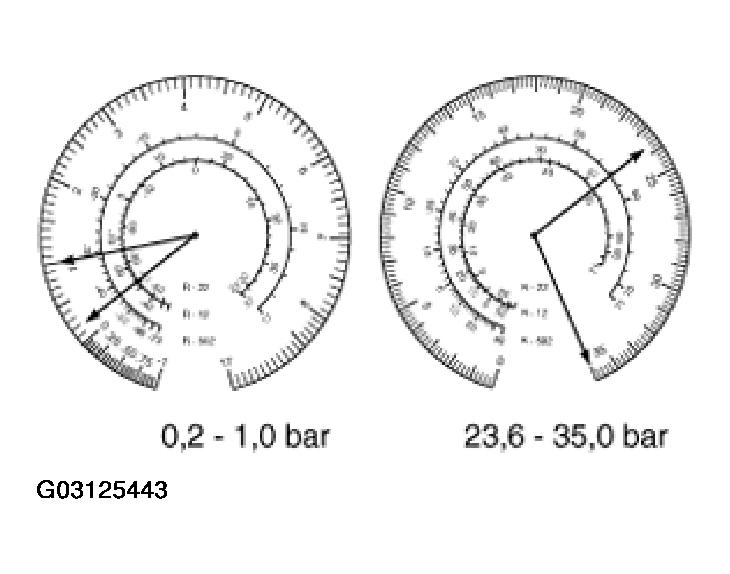

Low inlet pressure and high outlet pressure indicate an obstruction in the condenser area.

Remedy:

Check condenser for unobstructed through-flow; clean or replace if necessary.

Fig 6: Checking Condenser For Unobstructed Through-Flow

Courtesy of BMW OF NORTH AMERICA, INC.
