63 21 180 Removing and installing/replacing left or right rear light (inside panel)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove socket housing for rear light.

Saloon/Sedan, CoupeA and Convertible:

Detach luggage compartment wheel arch liner in rear area. Release nuts and remove rear light towards outside.

CoupeA and convertible only:

Replacement:

Convert side trim on rear light (inside).

Fig 1: Removing Socket Housing For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

touring:

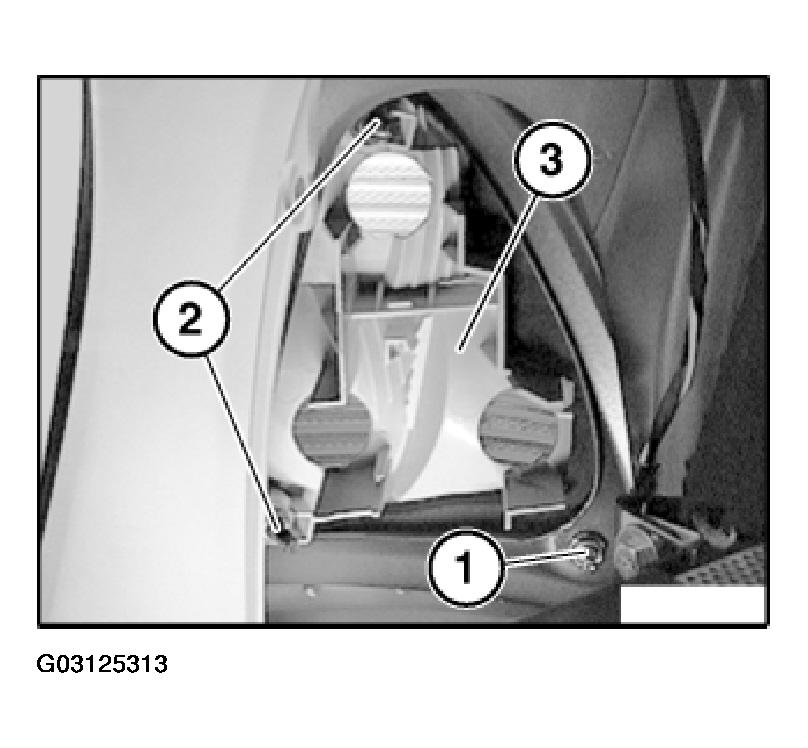

Unscrew nut (1).

Release nuts (2) slightly and remove rear light (3) towards outside.

Fig 2: Removing Rear Light Towards Outside

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Make sure rear light seal is correctly seated, replace if necessary.

Make sure there is a uniform gap all round between outer rear light and side panel.
