63 99 431 Replacing light bulb(s) for ceiling light

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights).

Version with inside reading lamps:

Remove complete ceiling light (with inside reading lamps).

Turn socket housing for bulb counterclockwise and remove. Remove bulb.

Fig 1: Removing Complete Ceiling Light (With Inside Reading Lamps)

Courtesy of BMW OF NORTH AMERICA, INC.

Version without inside reading lamps:

Remove complete ceiling light (without inside reading lamps).

Loosen screws (1).

Remove ceiling light (2) from lens underneath.

Remove bulb(s).

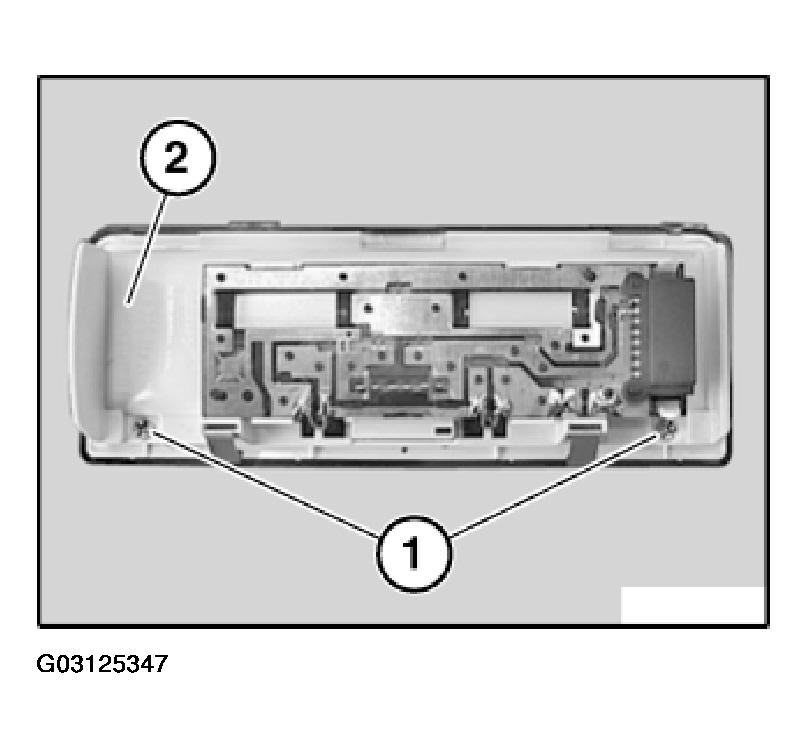

Fig 2: Removing Ceiling Light From Lens Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
