63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Saloon/Sedan/Touring from 09/2001:

CoupeA/Convertible from 03/2003:

Release screws (1).

Remove clip (2).

Feed out cover (3) from front bumper trim (4) and unclip in direction of arrow.

Installation:

Make sure cover (3) is correctly seated on front brake air duct (5).

Fig 1: Feeding Out Cover From Front Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn bulb with bulb holder (2) in direction of arrow and remove.

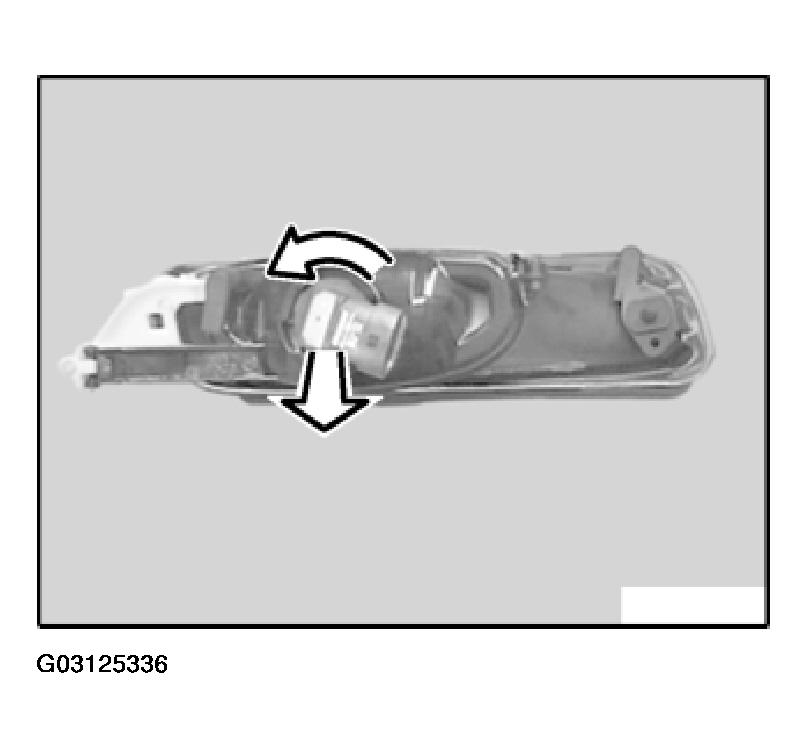

Fig 2: Turning Bulb With Bulb Holder In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Others:

Remove fog lamp insert.

Turn bulb with bulb holder and remove.

Fig 3: Turning Bulb With Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
