63 99 132 Replacing bulb for side marker lamp, front left

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

US only:

Replace bulb for front turn-signal lamp. See 63 13 150 Removing and installing/replacing complete front left or right turn signal lamp

All models except US:

M54 only:

Release intake filter housing and place to one side.

Turn bulb holder for side marker lamp in direction of arrow and pull out towards rear.

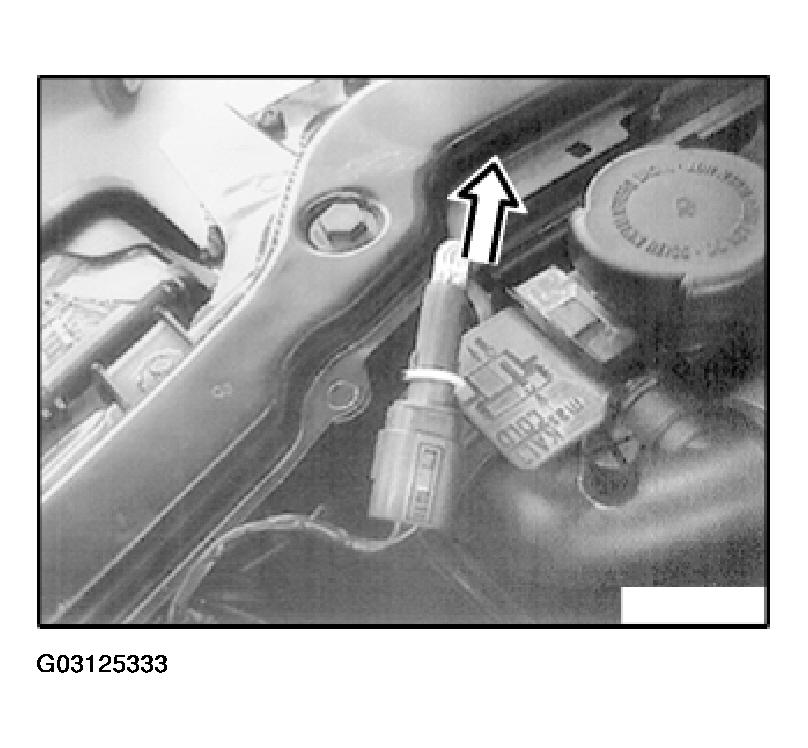

Fig 1: Turning Bulb Holder For Side Marker Lamp In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw bulb from bulb holder for side marker lamp.

Installation:

Note type of bulb.

Fig 2: Withdrawing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
