63 99 002 Replacing halogen bulb for high-beam headlight on left

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Necessary preliminary tasks:

M54, N42 only:

Detach intake muffler housing and place to one side. See 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

CoupeA/Convertible from 03/2003: N40 only:

Detach intake muffler housing and place to one side.

NOTE: For purposes of clarity, illustration shows removed headlight.

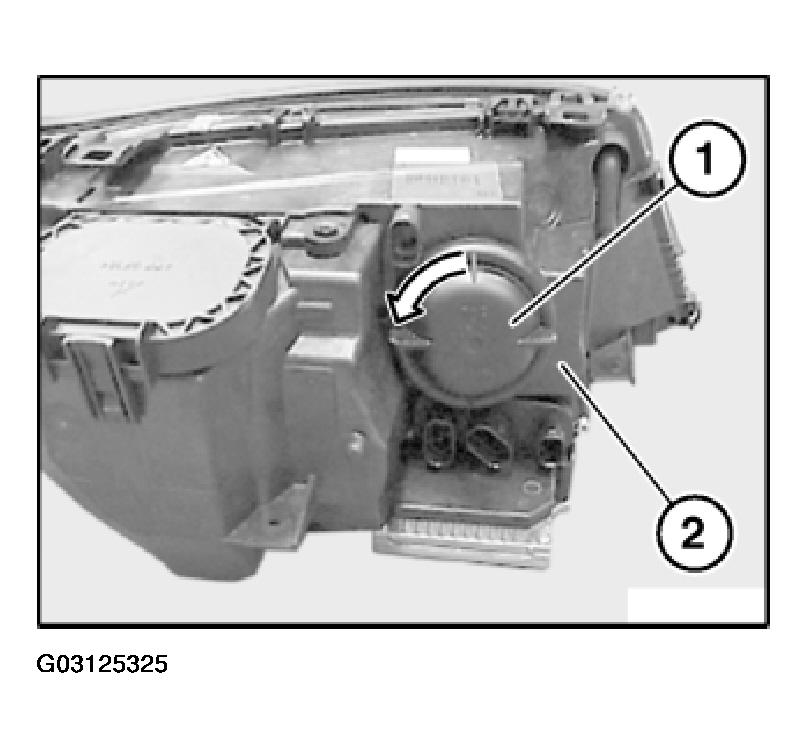

Turn protective cap (1) in direction of arrow and remove from headlight (2).

Fig 1: Turning Protective Cap In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

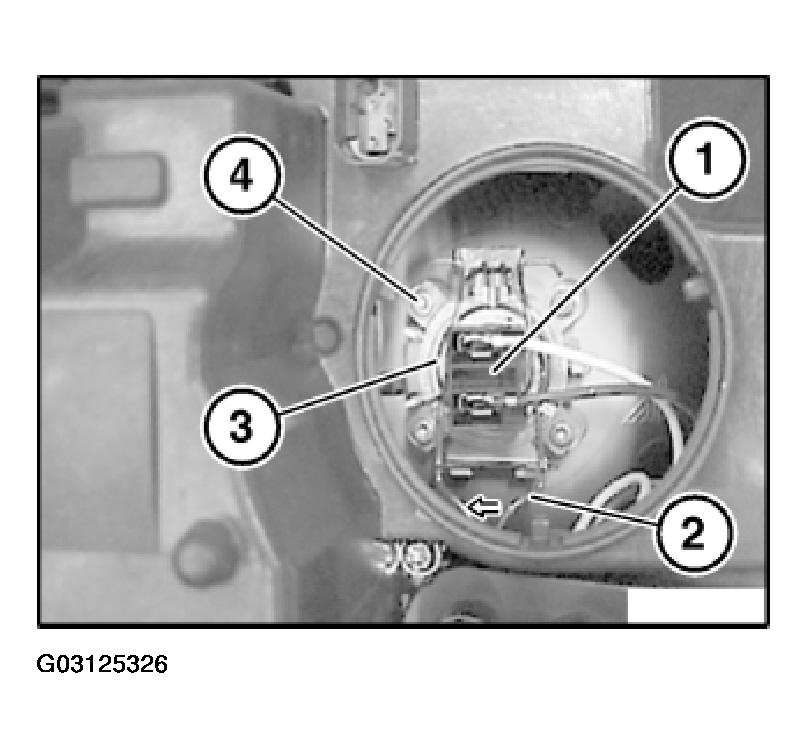

Unfasten plug connection (1) and disconnect.

Disconnect locking clip (2) in direction of arrow and fold upwards.

Remove bulb (3) from headlight (4).

Fig 2: Removing Bulb From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

All others:

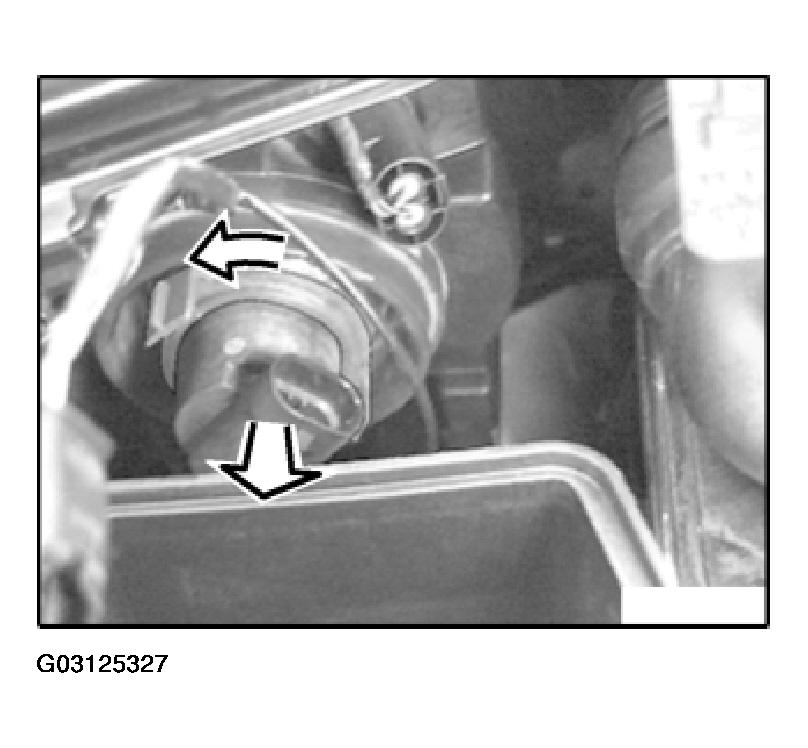

Unfasten plug connection and disconnect.

Turn retaining ring in direction of arrow and remove bulb holder towards rear.

NOTE: If retaining ring is tightly seated, press bulb holder forwards.

Remove bulb from bulb holder.

Fig 3: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
