63 31 150 Removing and installing/replacing glovebox light

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Lever out glovebox light (1) in direction of arrow. Disconnect plug connection and remove glovebox light (1).

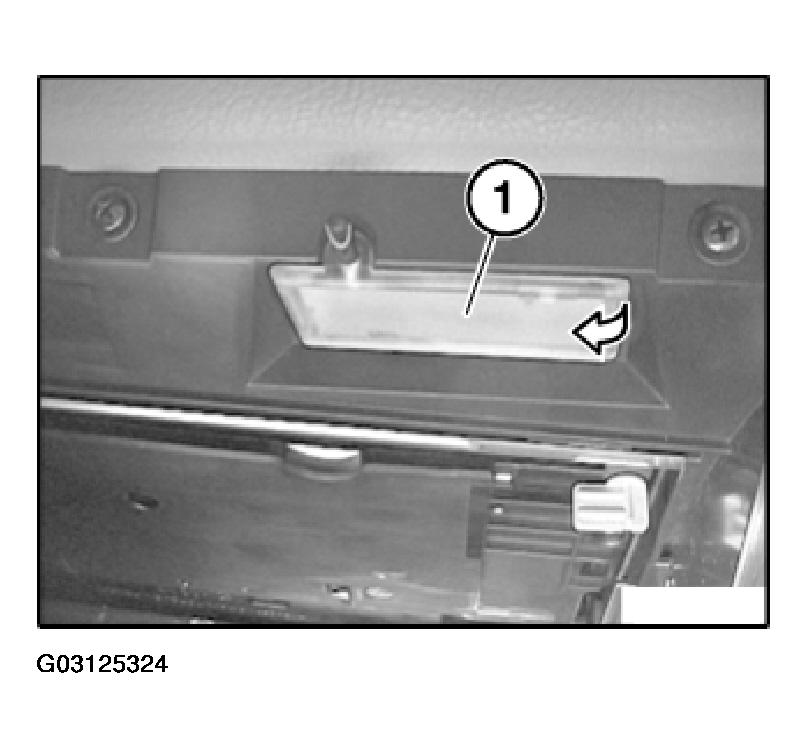

Fig 1: Removing Glovebox Light In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
