63 31 000 Removing and installing/replacing complete ceiling light

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Secure complete ceiling light against falling out.

Version with inside reading lamps:

Lever out complete ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove complete ceiling light (1).

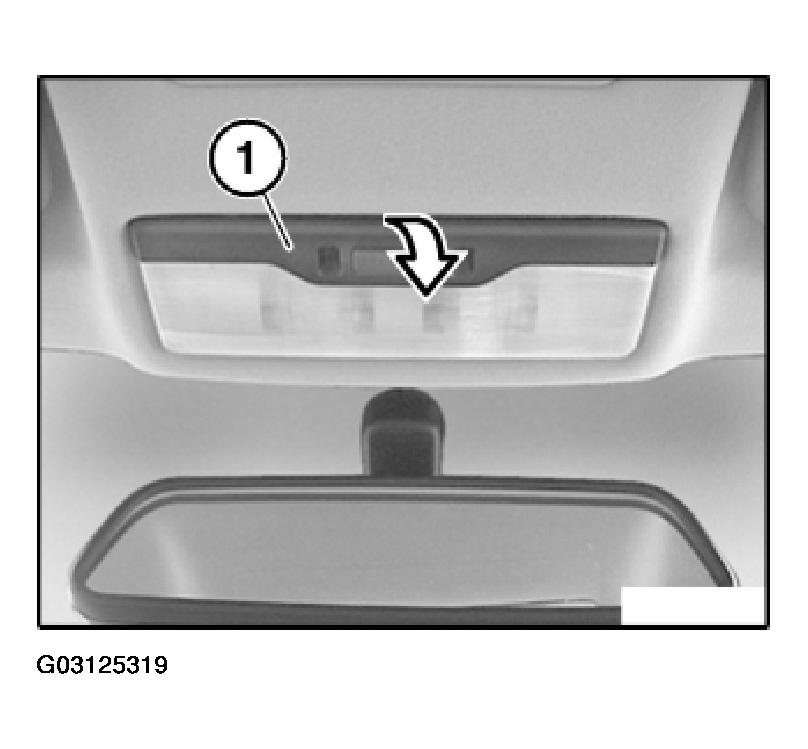

Fig 1: Removing Complete Ceiling Light (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Version without inside reading lamps:

Lever out complete ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove complete ceiling light (1).

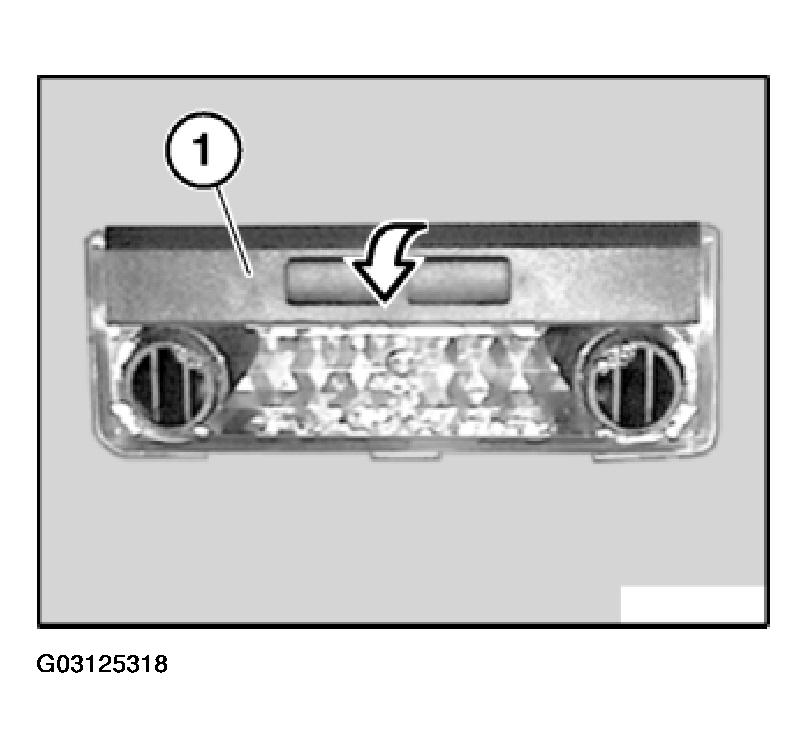

Fig 2: Removing Complete Ceiling Light (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
