63 12 950 Replacing a lower holder for headlight mounting

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlight.

Release screws and remove lower holder.

Installation:

Tighten screws hand-tight only.

Install headlight and align to engine hood.

Tighten down screws.

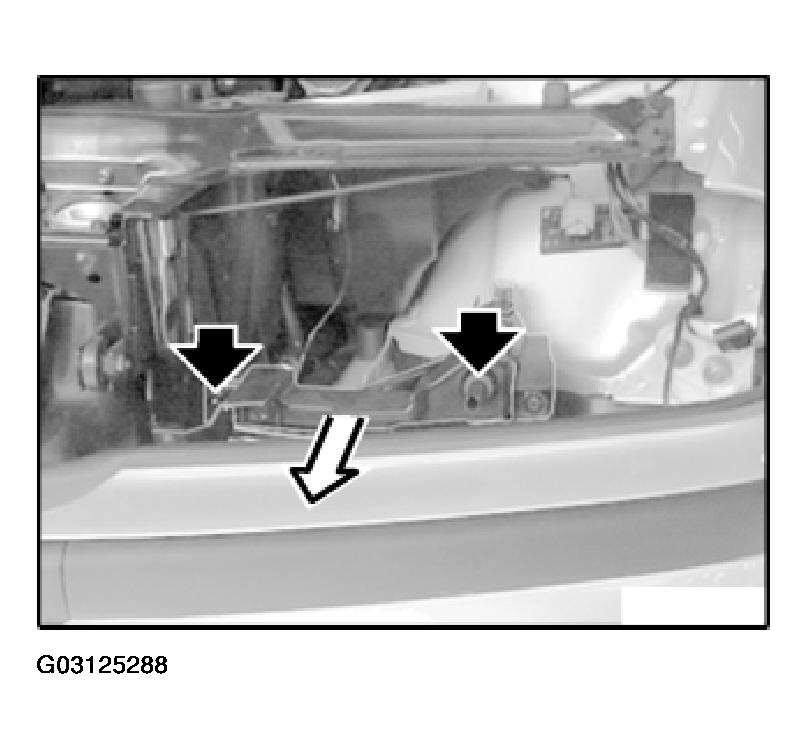

Fig 1: Installing Headlight & Aligning To Engine Hood

Courtesy of BMW OF NORTH AMERICA, INC.

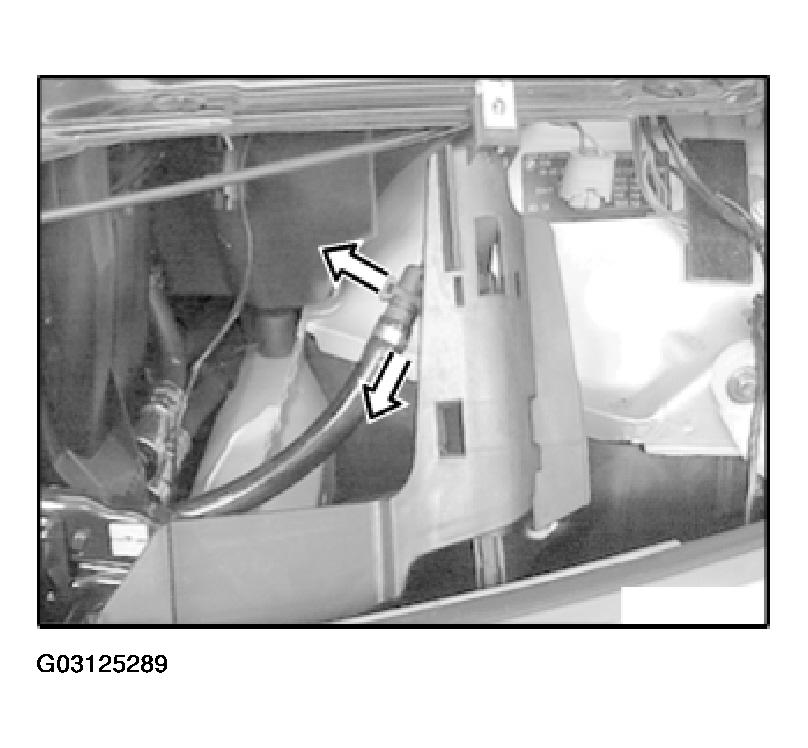

Version with headlight cleaning system: Unclip clip for hose (1) and disconnect hose (2).

Fig 2: Unclipping Clip For Hose

Courtesy of BMW OF NORTH AMERICA, INC.
