61 61 270 Removing and installing complete wiper console

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cowl panel cover. See 51 13 115 REMOVING AND INSTALLING/REPLACING COWL PANEL COVER
Remove heater bulkhead. See 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD

Unfasten plug connection (1) and disconnect. Unscrew bolt (2).

Installation:

Tightening torque. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

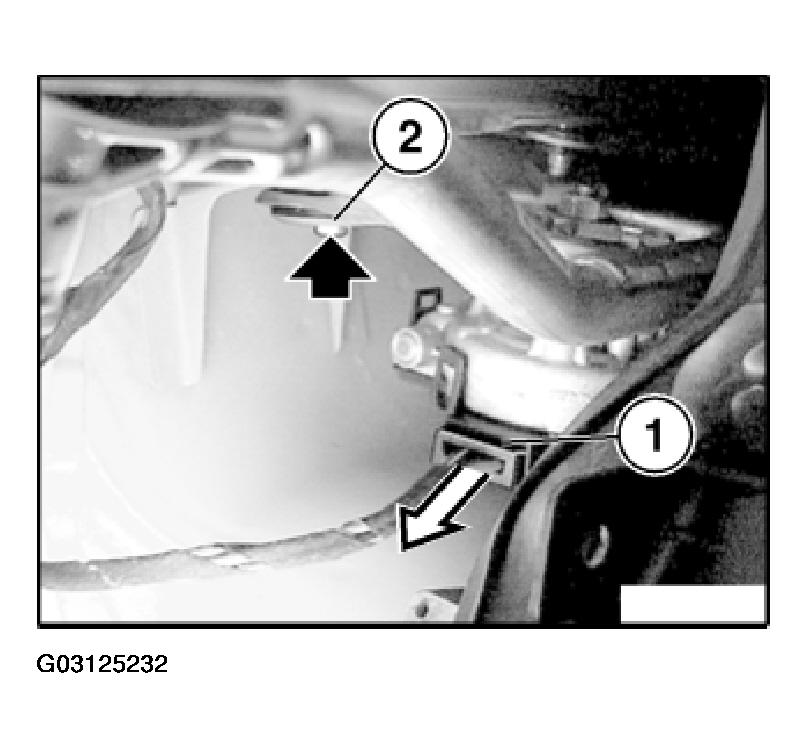

Fig 1: Disconnecting Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit rubber grommet (1) of wiper console on pin (2).

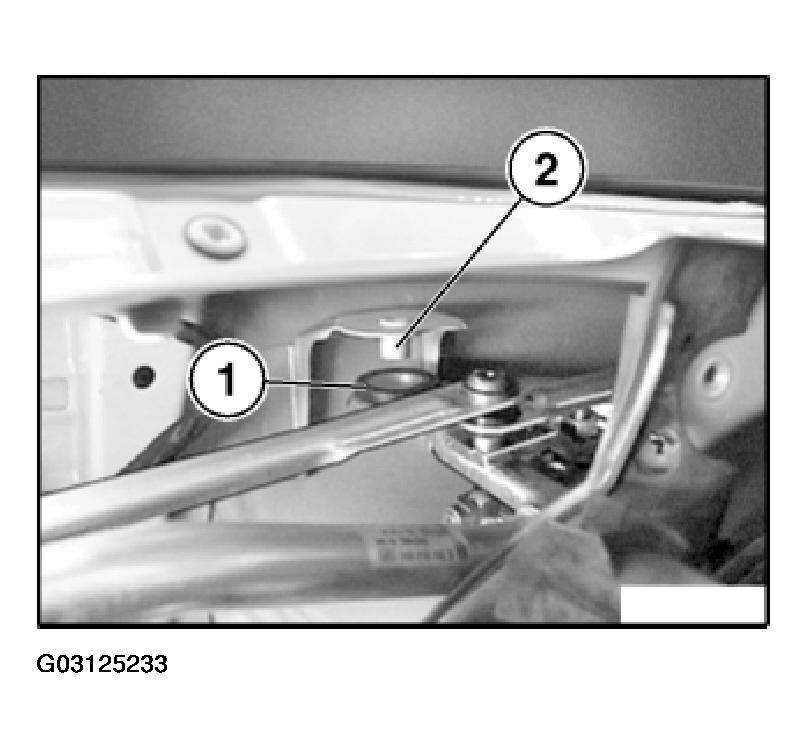

Fig 2: Fitting Rubber Grommet Of Wiper Console On Pin
Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and feed out complete wiper console through opening in heater bulkhead.

Installation:

Tightening torque. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

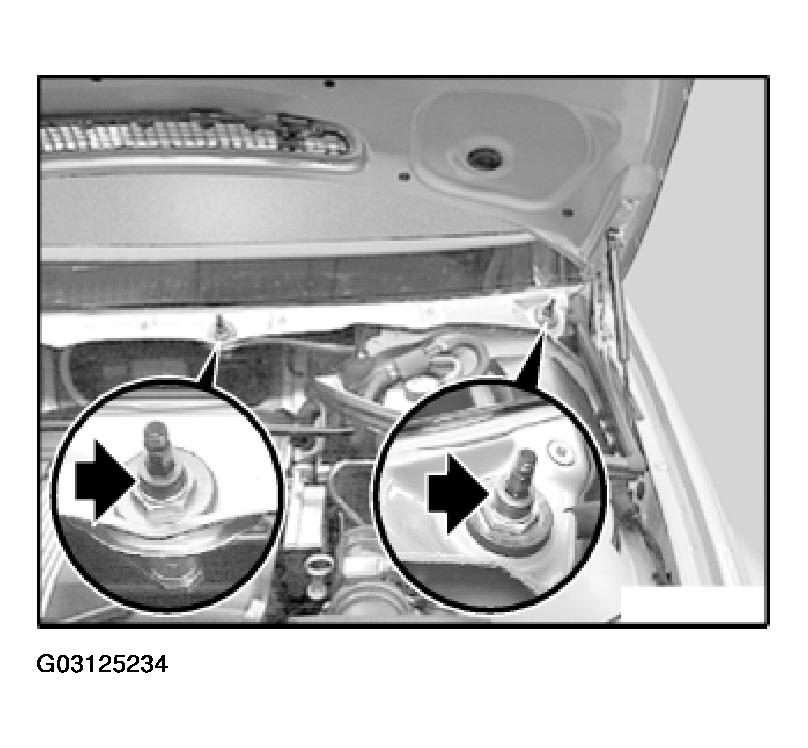

Fig 3: Locating Wiper Arm Nuts
Courtesy of BMW OF NORTH AMERICA, INC.
