Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

61 6 060

Take off cap.

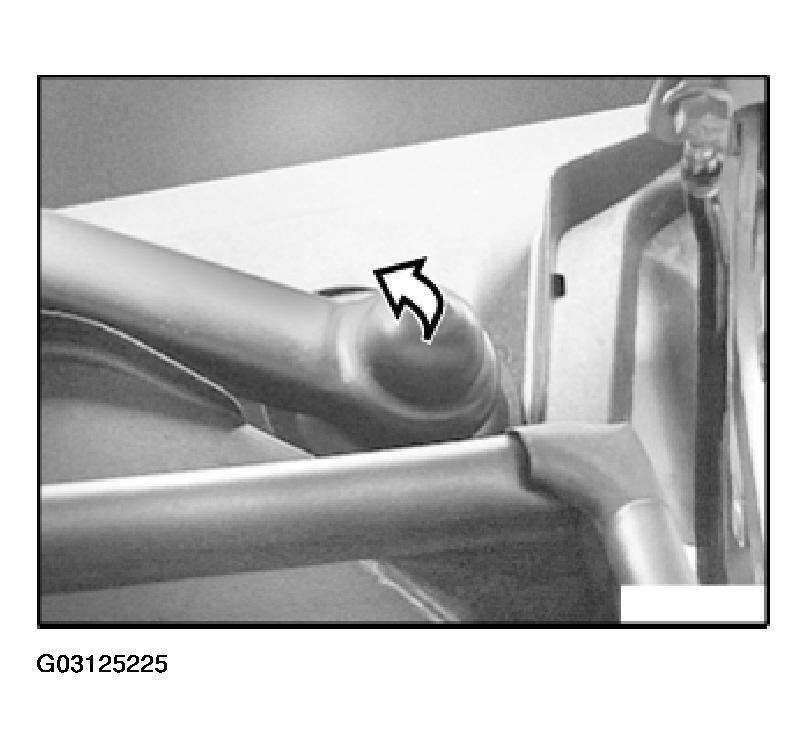

Fig 1: Removing Wiper Arm Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Installation:

Observe tightening torque. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

Fig 2: Unfastening Wiper Arm Nut
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not bend windshield wiper arm during removal (risk of breakage).

Detach windshield wiper arm with special tool 61 6 060.

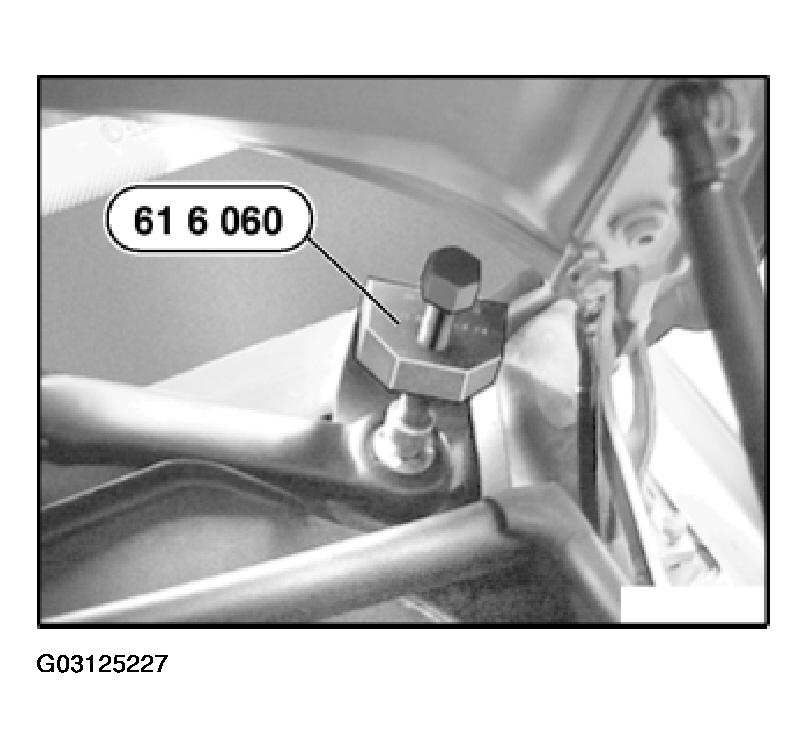

Fig 3: Detaching Windshield Wiper Arm With Special Tool 61 6 060

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check that sleeve (1) is firmly seated. If sleeve (1) is loose, it must be replaced. A sleeve (1) firmly seated in the windshield wiper arm can be reused.

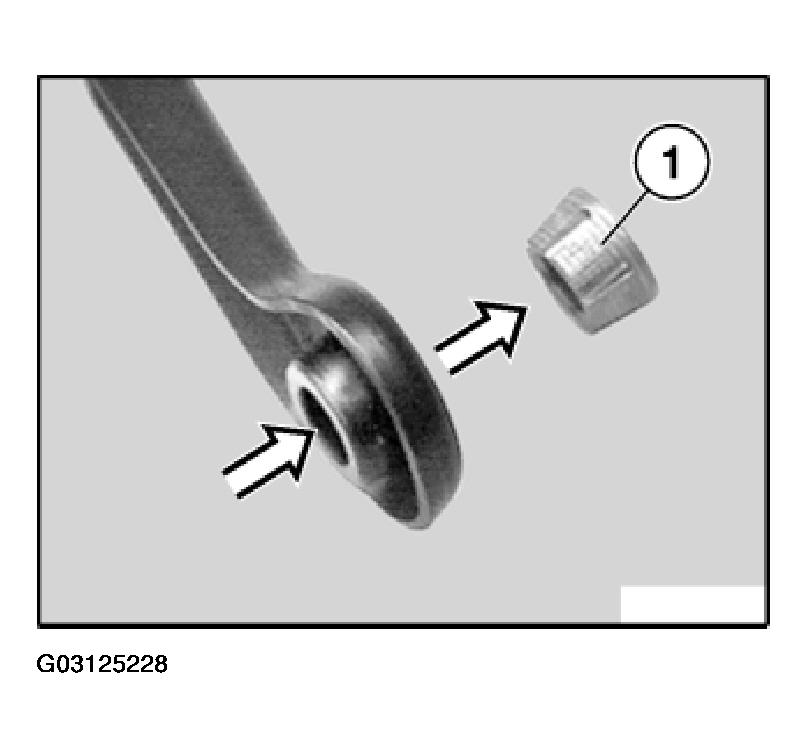

Fig 4: Installing Sleeve In Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.
