61 71 100 Removing and installing/replacing windshield washer pump
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drain fluid tank for windshield washer system Unclip heat shield and place to one side.

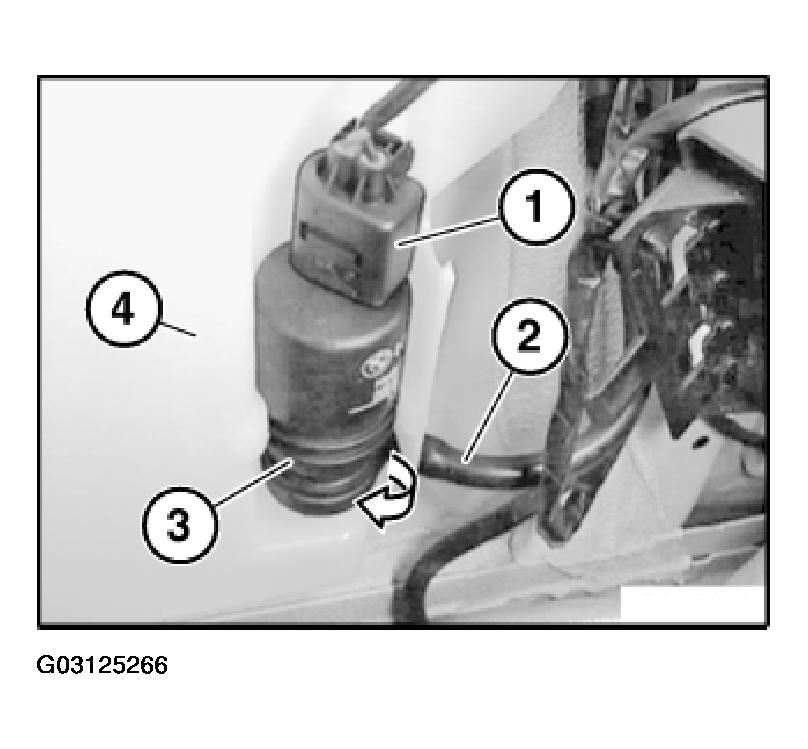

Disconnect plug connection (1).
Detach hose (2) from windshield washer pump (3).
Turn windshield washer pump (3) in direction of arrow, lift out of water reservoir for windshield washer system (4).
Installation:
Replace sealing ring/strainer of washer pump.
Coat sealing ring of washer pump with anti-seize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windshield washer system.
