61 31 245 Removing and installing/replacing rear window button
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove shaft bearing for rear window wiper. See 61 62 090 Removing and installing/replacing shaft bearing for rear window wiper (Touring)
IMPORTANT:

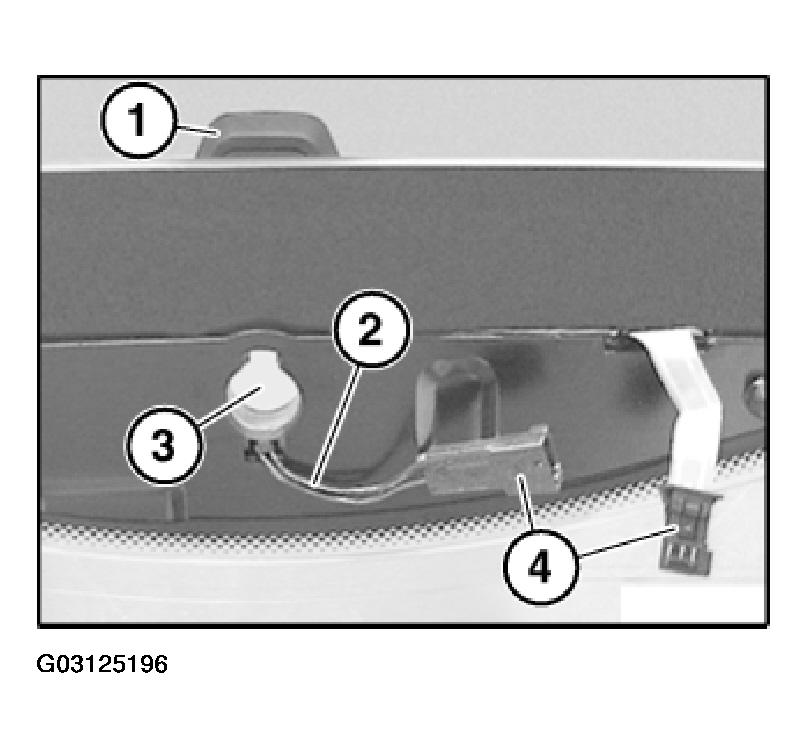

When disconnecting plug connection (2), make sure no tensile load is exerted on foil conductor (risk of damage).
If necessary, remove adhesive tape (1).
Disconnect plug connection (2).
Remove secured rear window button (3).
Installation:
If necessary, replace gasket.
Installation:
Feed in cable (2) of rear window button (1) through bore hole (3).
Connect plug connection (4) and secure with adhesive tape if necessary.
