61 31 228 Replacing switch on sport steering wheel (with connected airbag unit)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove airbag unit. See 32 34 AIRBAG AND AIRBAG STEERING WHEEL

NOTE: There 2 screw variants:

Self-tapping screws
Screws with insert nuts (secure against falling out)

Release screws (1) and (2).

Unclip complete trim (4) in direction of arrow from fixtures (3).

Disconnect plug connection underneath.

Fig 1: Unclipping Complete Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach switch on sport steering wheel (3) in direction of arrow from trim (2).

Installation:

Ensure gap dimension is uniform between trim (2) and switch on sport steering wheel (3).

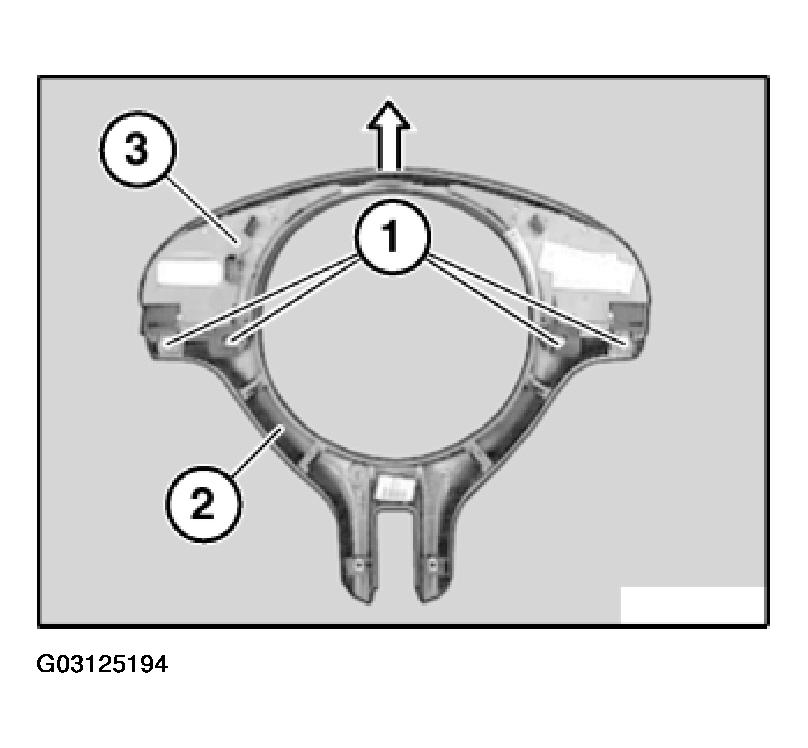

Fig 2: Identifying Direction For Detaching Sport Steering Wheel Switch

Courtesy of BMW OF NORTH AMERICA, INC.
