61 31 033 Removing and installing light switch unit

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip left wooden finisher,

refer to 51 16 221 REPLACING A CLIPPED-IN TRIM (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

Remove left glove box, refer to 51 16 350 REMOVING AND INSTALLING LEFT GLOVE BOX .

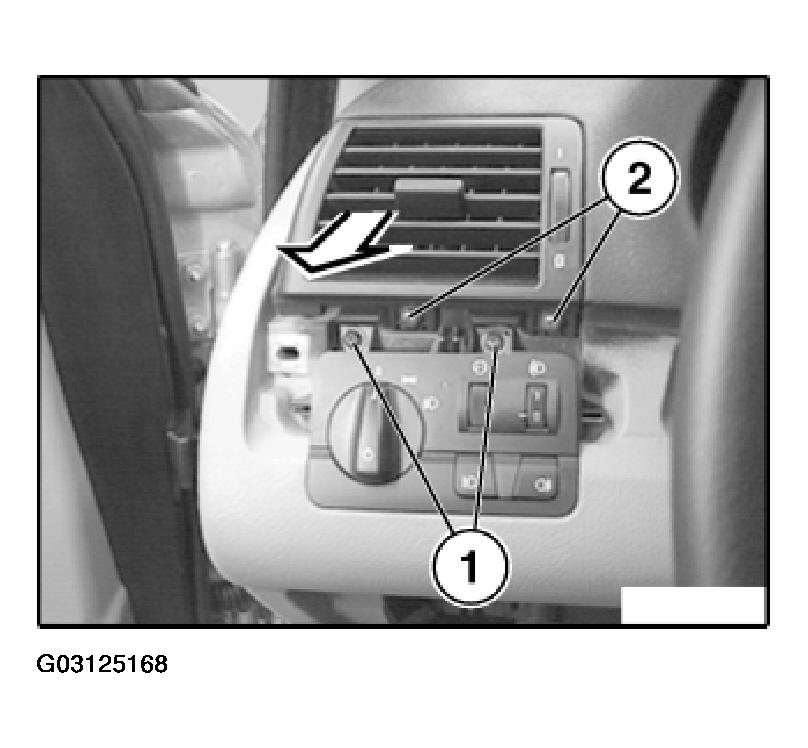

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press switch unit up a little through glove box aperture and then slide back.

Fig 2: Pressing Switch Unit Up A Little Through Glove Box Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug and remove.

Fig 3: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.
