61 13 Special tools for wiring harness repairs

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 1 150
61 1 190
61 4 320
61 8 084
61 9 020
61 9 029
61 9 041
61 9 042
61 9 043
61 9 044

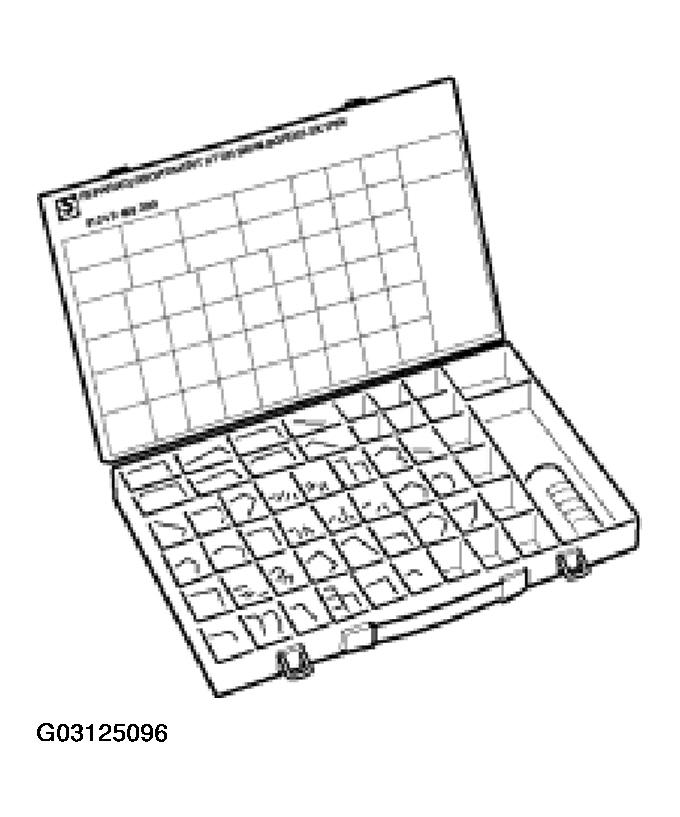

Repair ranges I, II, III for vehicle electrical system

I Order No.: 81 24 9 408 080

II Order No.: 81 24 9 408 300

III Order No.: 81 24 9 408 400

Sourcing reference: BMW Parts Service.

Fig 1: Special Tools For Wiring Harness Repairs (1 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

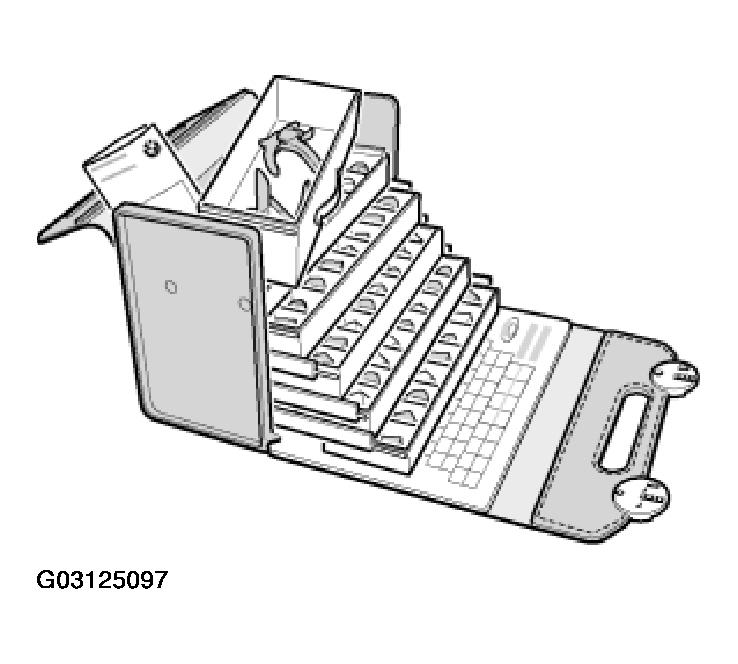

Repair range IV for vehicle electrical system, special tool 61 9 020:

Contents:

Special tool 61 9 041 (hand pliers)
Special tool 61 9 042 (matrix)
Special tool 61 9 043 (wire stripper)
Special tool 61 9 044 (matrix)

Fig 2: Special Tools For Wiring Harness Repairs (2 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

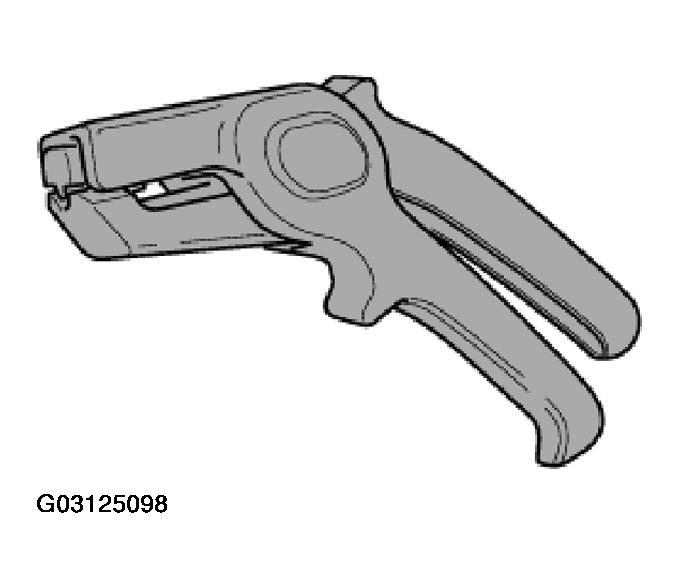

Special tool 61 9 043 (wire stripper with wire cutter) for cutting and stripping wires.

Handling:

Cutting to length and stripping insulating from cables

Fig 3: Special Tools For Wiring Harness Repairs (3 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

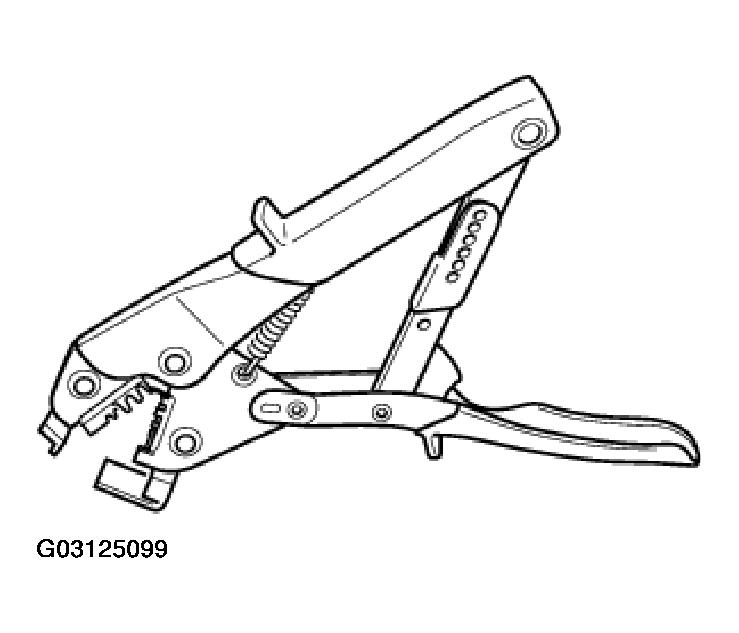

Special tool 61 9 041 (hand pliers) with special tool 61 9 042 (matrix) for crimping connectors and contact tubes for fan connectors up to a wire cross-section of 2.5 mm² and for pushing on contact tubes for fan connectors.

Handling:

Crimping stop parts (contacts).

Fan connector for retrofitting/repairs.

Fig 4: Special Tools For Wiring Harness Repairs (4 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

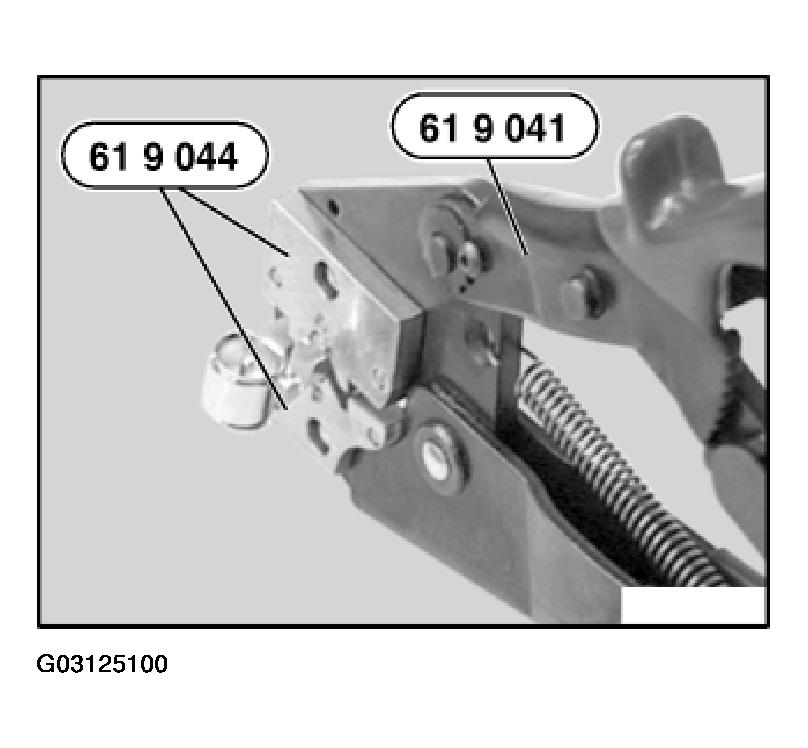

Special tool 61 9 041 (hand pliers) with special tool 61 9 044 (matrix) for crimping cable guide and strain relief device on antenna elbow plug.

Handling:

Antenna elbow plug on radio receiver.

Fig 5: Special Tools For Wiring Harness Repairs (5 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

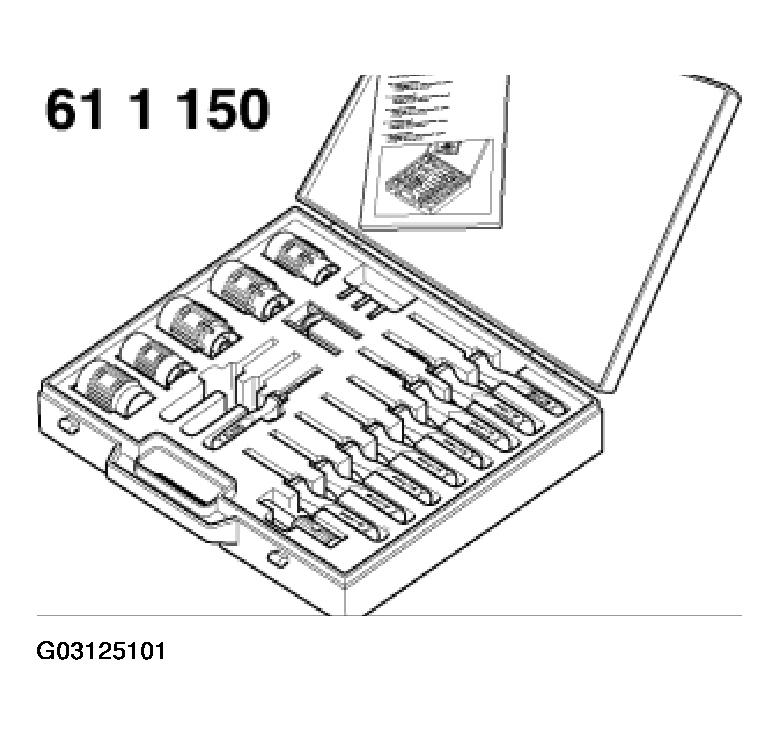

Special tool 61 1 150 (release and pressing-out tool) for:

releasing round plug housings
releasing relay carriers
pressing out contacts
removing indicator lights

Handling:

Opening plug housings and removing contacts of different plug systems

Fig 6: Special Tools For Wiring Harness Repairs (6 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

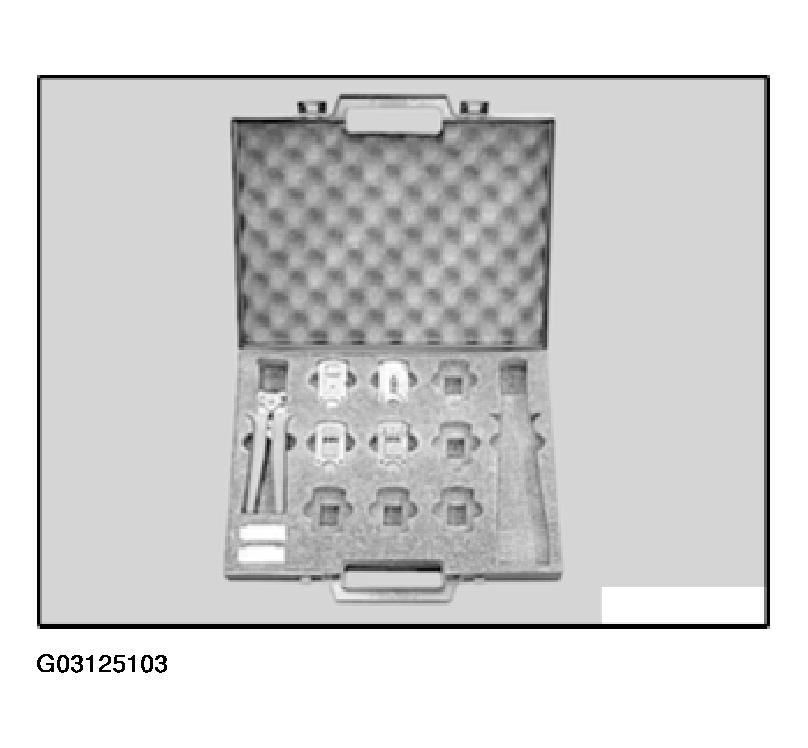

Repair kit for ignition cables and for crimping fan connector receptacles 4 mm²

Handling:

Crimping stop parts (contacts).

Service Information 1 03 89 (037)

Fig 7: Special Tools For Wiring Harness Repairs (7 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

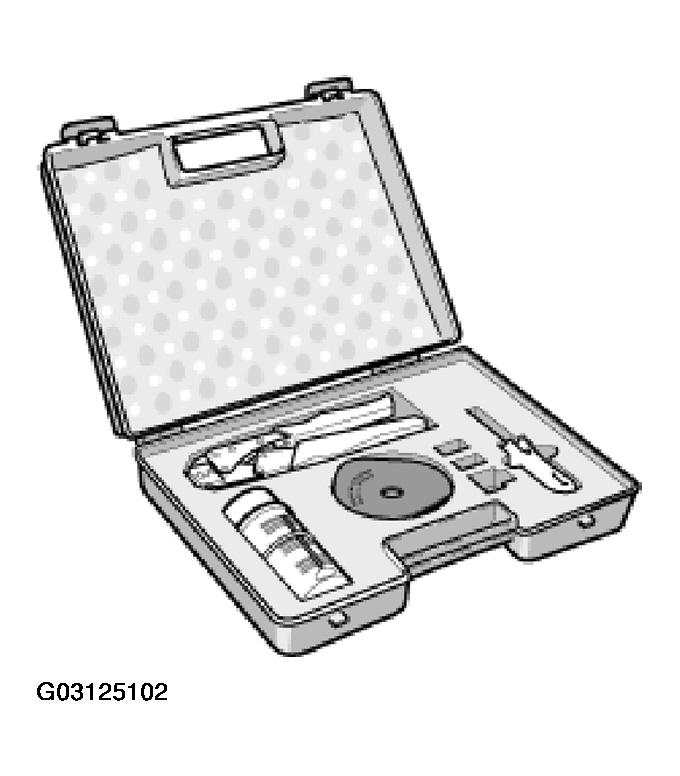

Special tool 61 4 320 (crimping set with pliers) for:

Cutting to length and stripping insulation from optical fibers
Crimping optical fibers
Crimping MPQ contacts
Crimping MQS contacts

Fig 8: Special Tools For Wiring Harness Repairs (8 Of 9)
Courtesy of BMW OF NORTH AMERICA, INC.

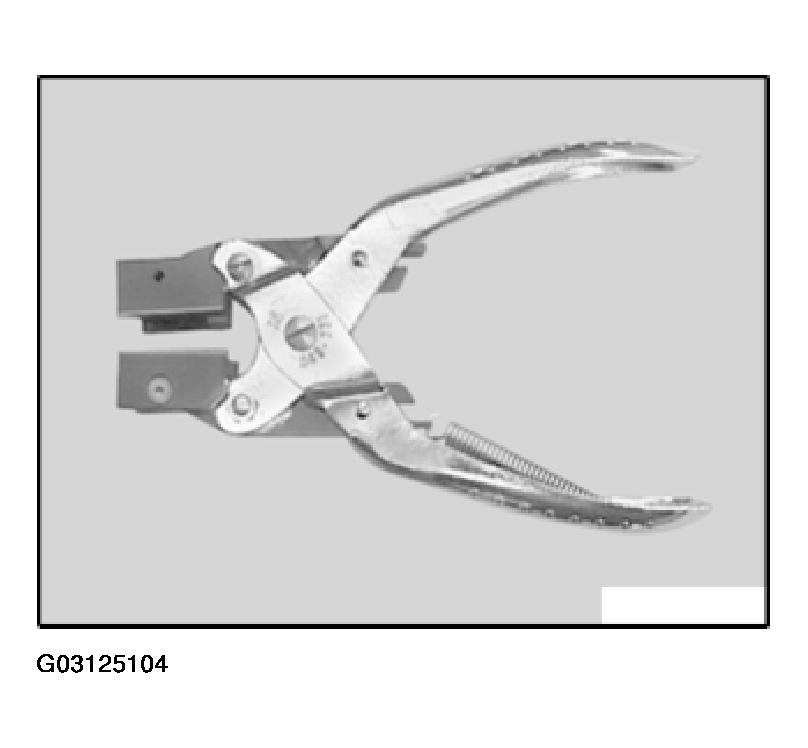

Special tool 61 1 190 pliers for insulation displacement connector for repairing ribbon cables.

Handling:

Repairing ribbon cables.

Fig 9: Special Tools For Wiring Harness Repairs (9 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.
