61 67 010 Removing and installing/replacing washer pump of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain fluid tank for windshield washer system

Disconnect plug connection (1).

Remove clip for hose (2) in direction of arrow. Detach hose (3) from washer pump of headlight cleaning system (4).

Turn washer pump of headlight cleaning system (4) in direction of arrow and lift out of water reservoir for windshield washer system (5).

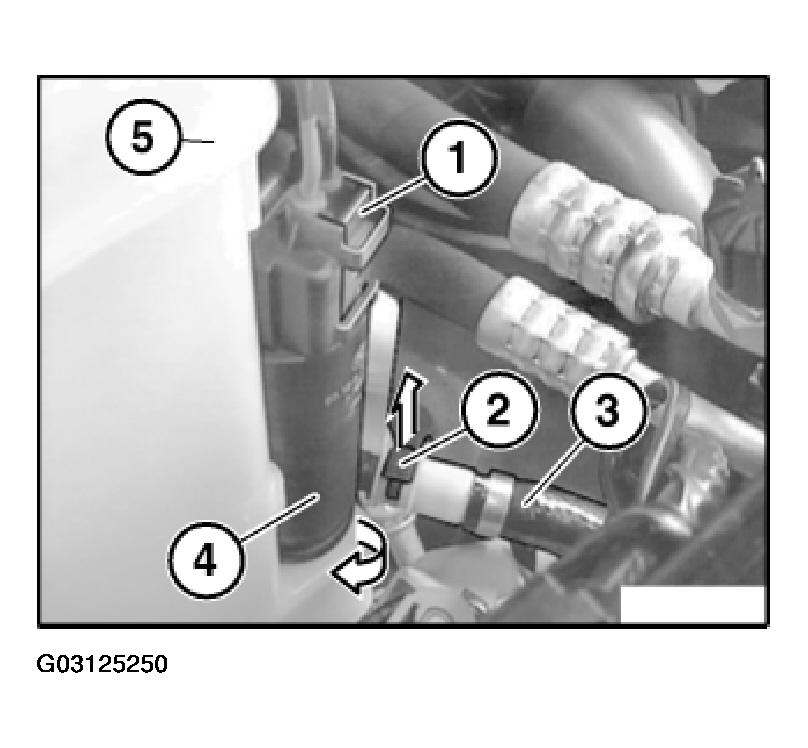

Fig 1: Removing & Installing/Replacing Windshield Washer Pump For Rear Window Washing System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring/strainer of washer pump.

Coat sealing ring of washer pump with anti-seize agent.

Ensure hose is laid without kinks.

Fill fluid tank for windshield washer system.
