54 12... Replacing seal for complete glass slid/tilt sunroof frame

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete glass slide/tilt sunroof (frame), refer to 54 12 211 Removing and installing complete glass slide/tilt sunroof (frame) .

Remove seals (1) and (2) from glass sunroof frame (3). Clean glued area and stick on new seals.

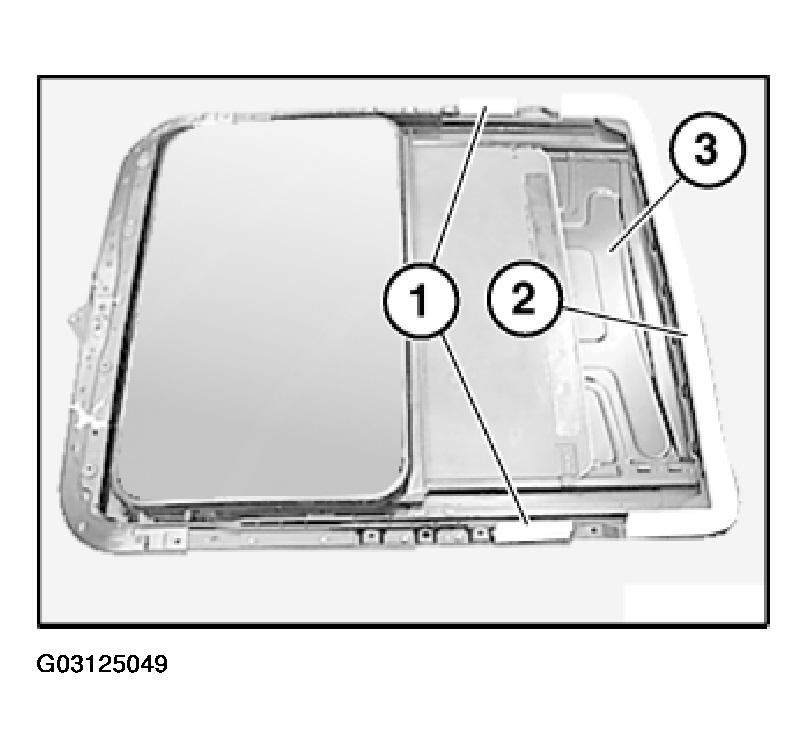

Fig 1: Identifying Seals On Glass Sunroof Frame
G03125049Courtesy of BMW OF NORTH AMERICA, INC.
