52 26... Removing and installing/replacing fixture for roller blind on rear seat (through-loading system) on left/right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover (1) on both sides towards top.

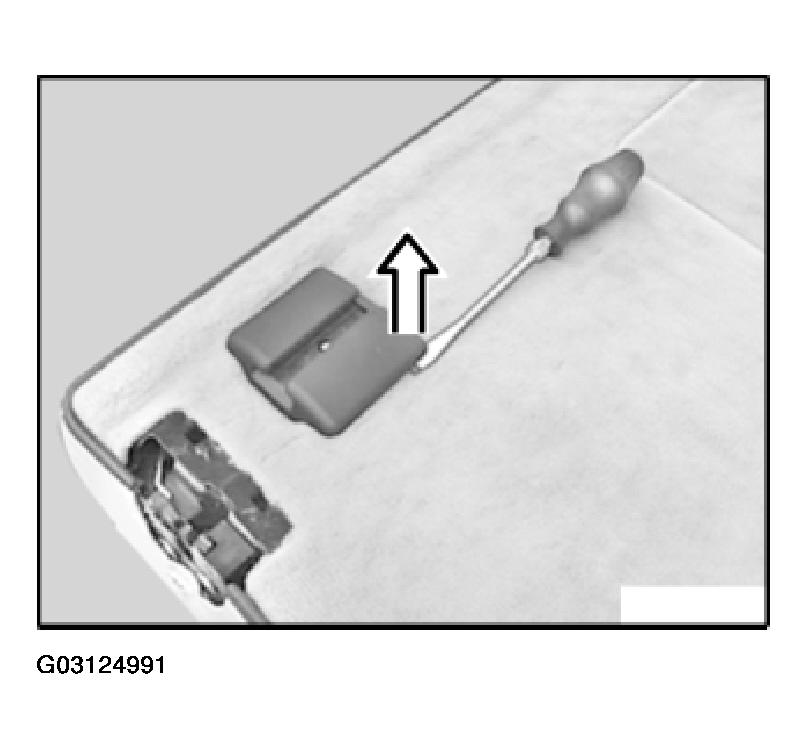

Fig 1: Unclipping Cover On Both Sides Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Installation:

Clips (1) must not be damaged.
Fit opening of cover for upper backrest edge.

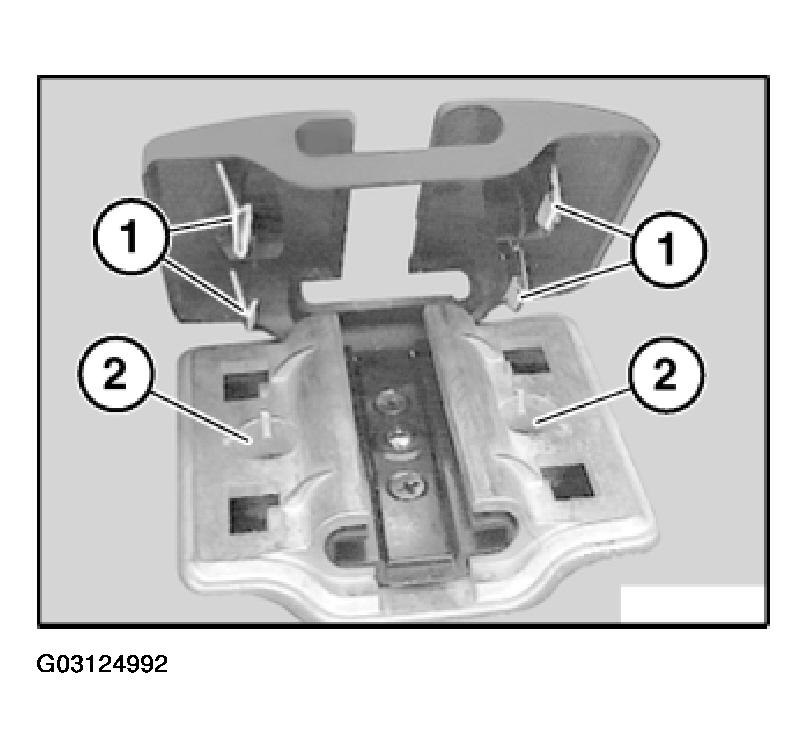

Fig 2: Installing Upper Backrest Edge Cover
Courtesy of BMW OF NORTH AMERICA, INC.
