Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

00 9 317

Slide special tool 00 9 317 behind retaining pin of upper cover section underneath finishing strip and unclip strip towards rear. Repeat procedure if necessary on other side.

Feed finishing strip out of armrest pins.

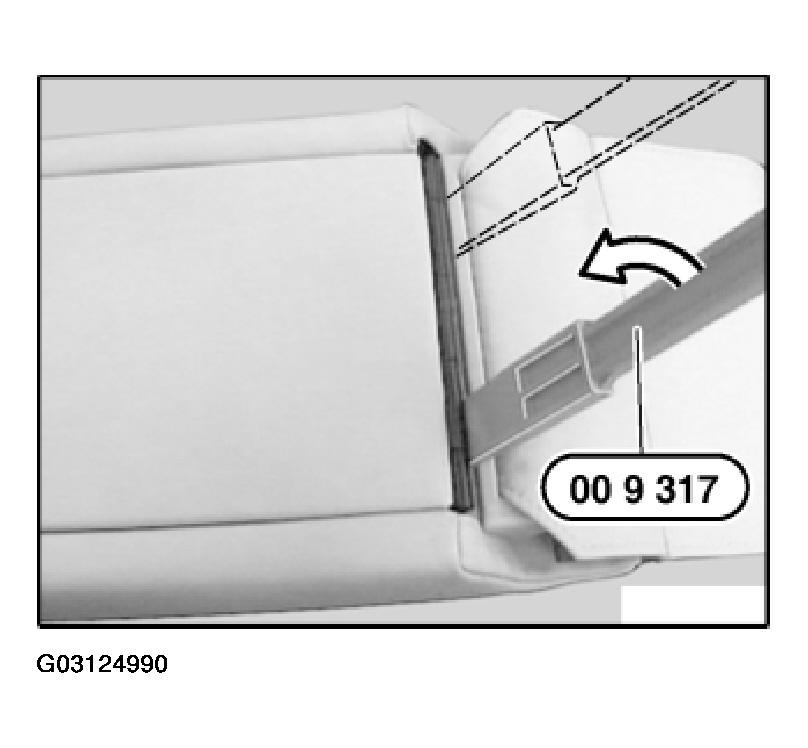

Fig 1: Removing & Installing/Replacing Finishing Strip On Armrest For Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.
