52 26 390 Removing and installing/replacing rear head restraints (through-loading system)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Move head restraint up as far as possible.

Forcefully pull out head restraint or detach by hitting firmly on one side from below.

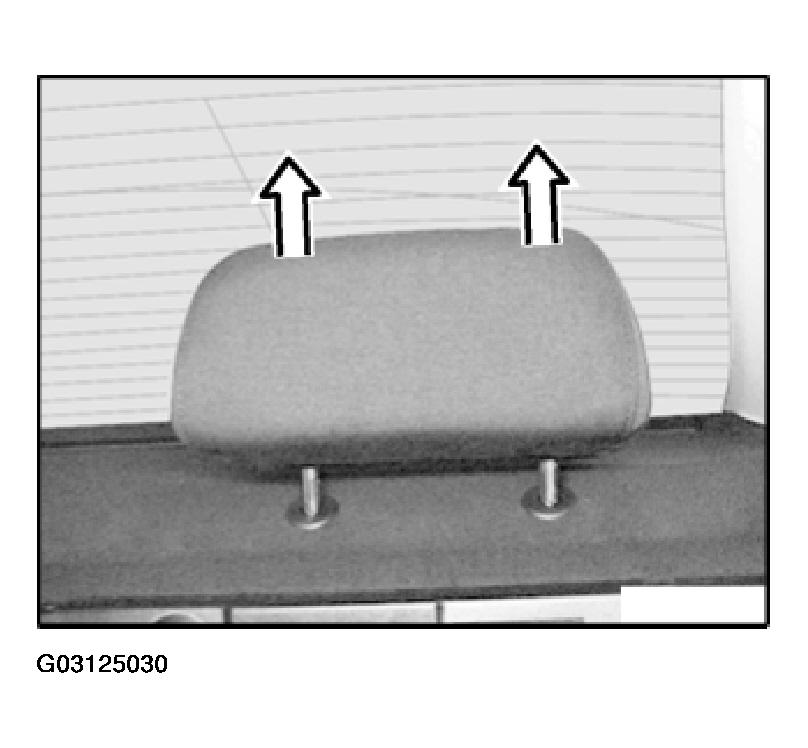

Fig 1: Removing Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out guide rods by twisting them back and forth.

CAUTION: Do not damage rear window.

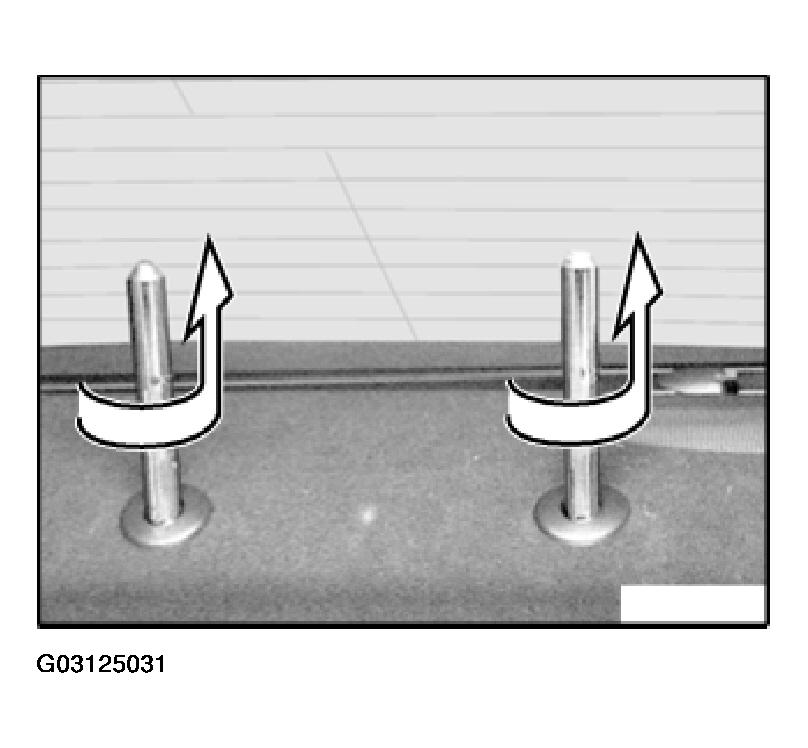

Fig 2: Pulling Out Guide Rods By Twisting Them Back & Forth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Notches (1) on guide rods must point in direction of catch spring (2).

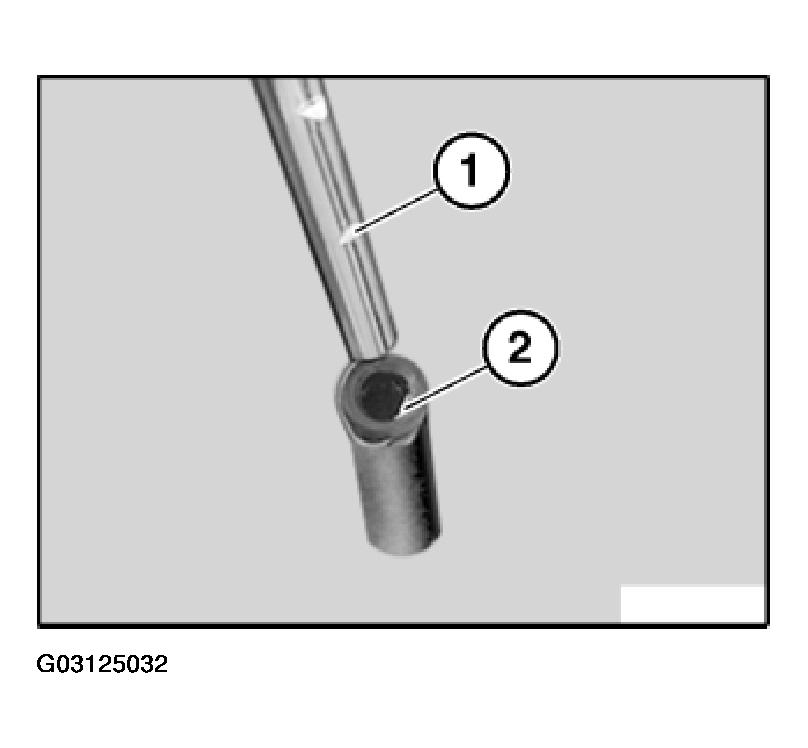

Fig 3: Identifying Direction Of Notches To Catch Spring
Courtesy of BMW OF NORTH AMERICA, INC.
