52 26 309 Removing and installing/replacing lock for left rear seat backrest (through-loading system)

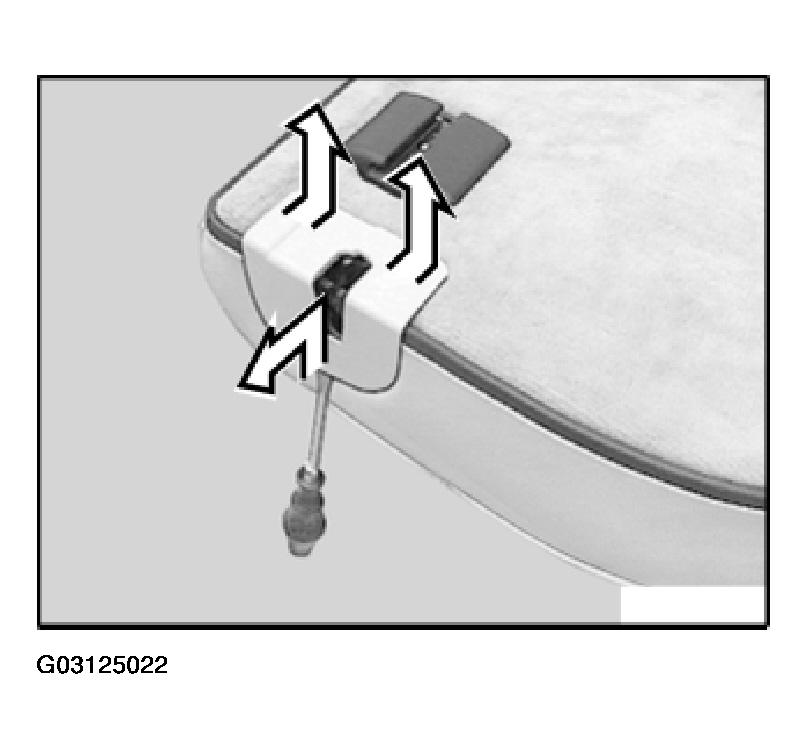

Slide lock trim on edge of backrest side upwards slightly and clip out to one side, then slide trim section on rear side slightly to center, unclip and remove.

Fig 1: Removing Trim Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

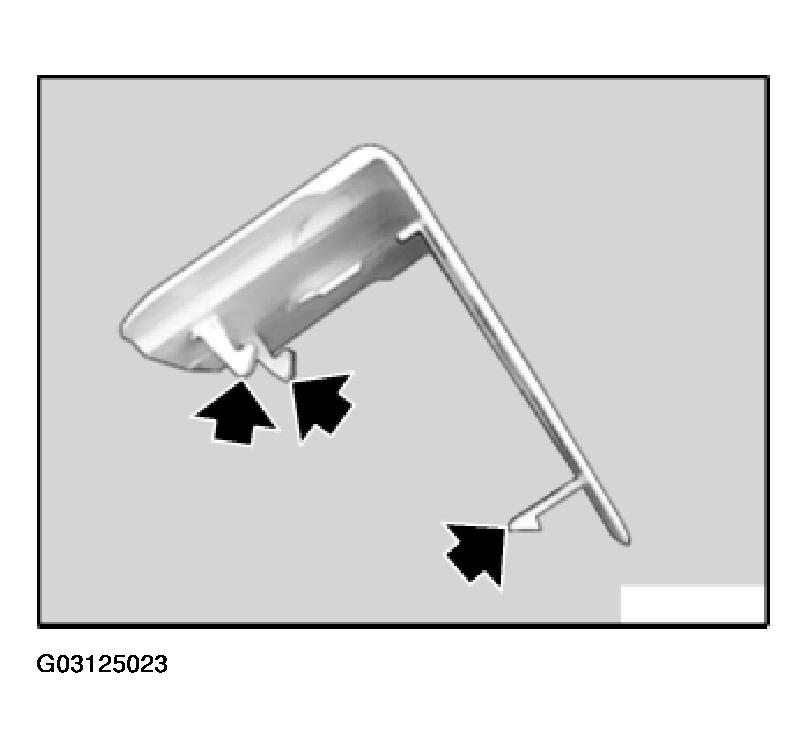

1. Clips of trim must not be damaged.
   Fig 2: Identifying Trim Clips

   Courtesy of BMW OF NORTH AMERICA, INC.

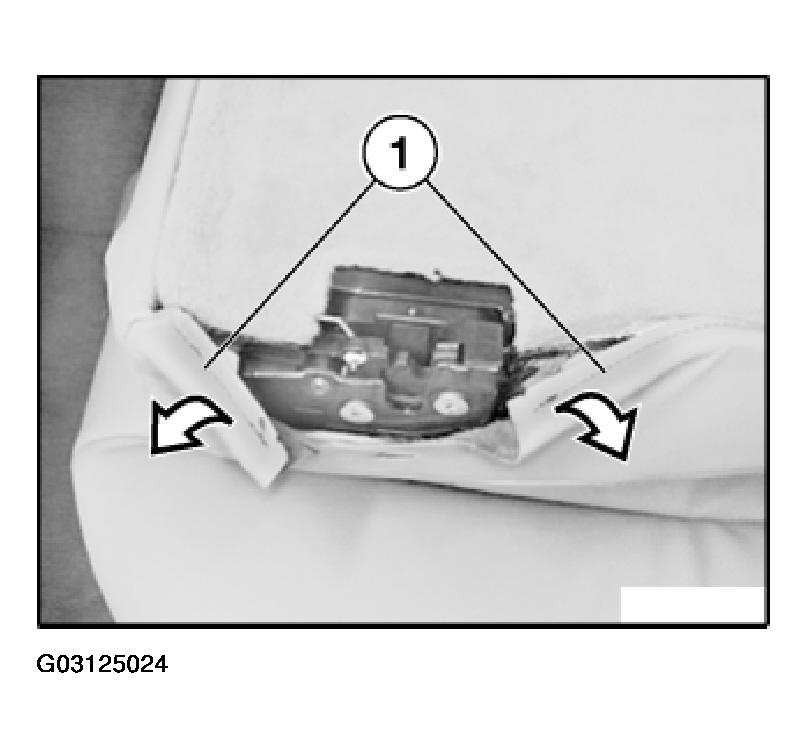

Partially lift cover (1) off rear seat backrest.

Fig 3: Lifting Cover Off Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

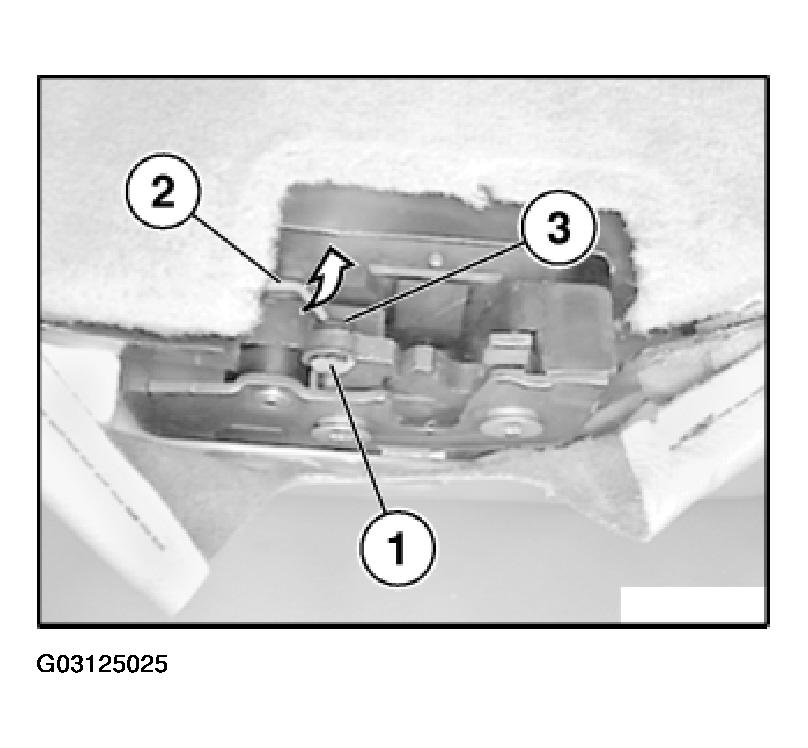

E46 only:

Remove lockplate (1) and unhook actuating rod (2) for seatback release.

E83 only:

Lockplate (1) omitted. Unhook actuating rod (2) for seatback release.

Installation:

1. Fit bush (3) and new lockplate (1).
2. Perform function check with rear seat back-rest folded forward.
   Fig 4: Removing Lockplate & Unhooking Actuating Rod (E46)

   Courtesy of BMW OF NORTH AMERICA, INC.

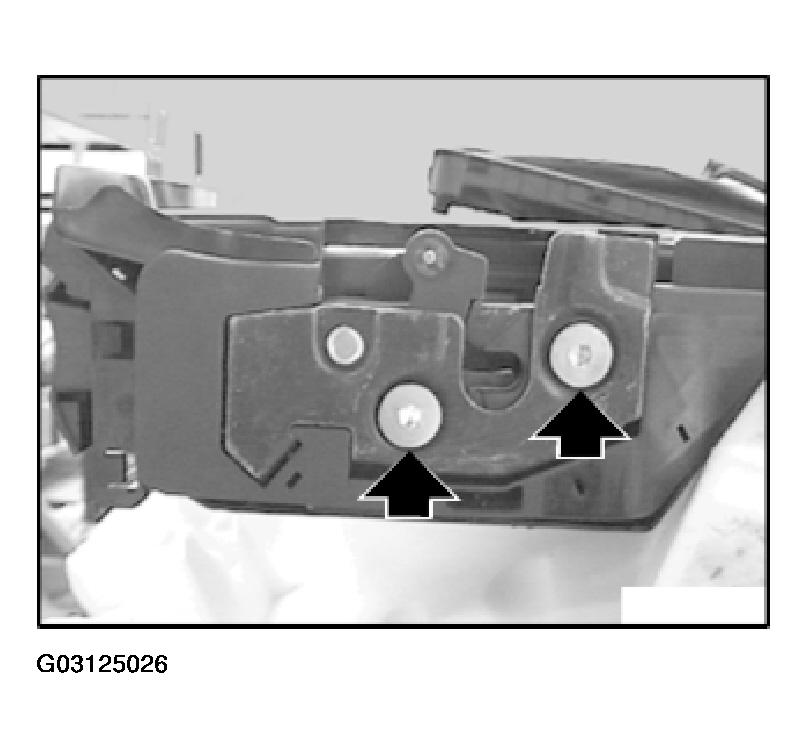

Release screws and fold back backrest lock.

Fig 5: Releasing Screws & Folding Back Backrest Lock

Courtesy of BMW OF NORTH AMERICA, INC.

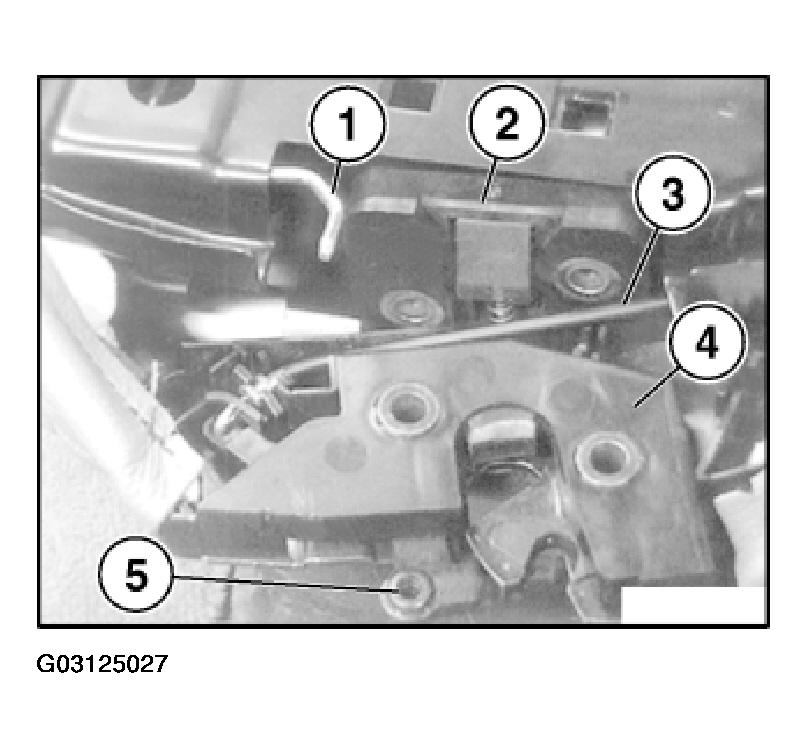

Summary, backrest lock (left):

1. Actuating rod for backrest lock
2. Lower section, backrest lock, left
3. Bowden cable of safety belt
4. Backrest lock, left
5. Bush for mounting of actuating rod backrest locking fixture
   Fig 6: Backrest Lock (Left)

   Courtesy of BMW OF NORTH AMERICA, INC.

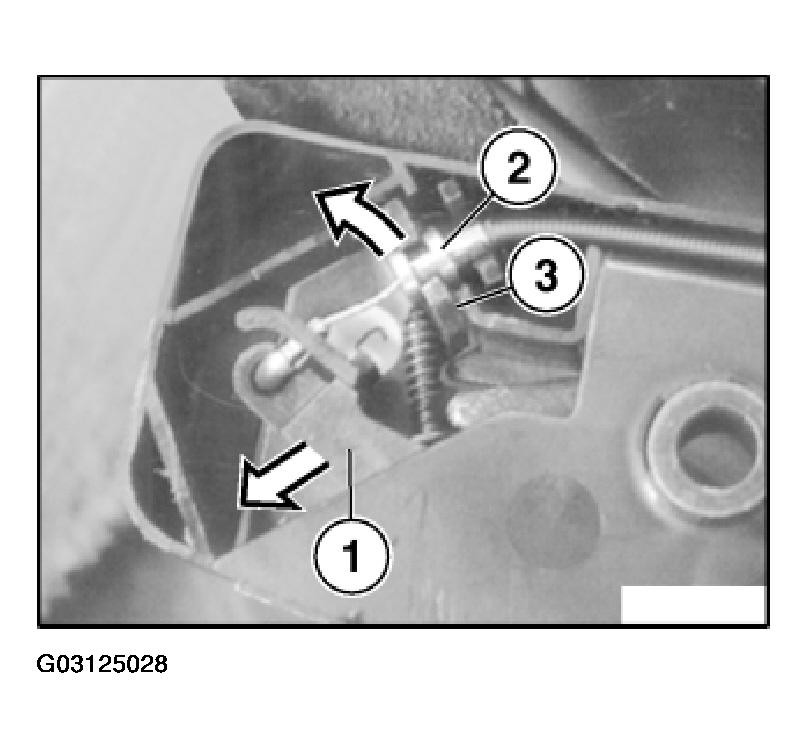

Unhooking seat belt Bowden cable from backrest lock:

Press lever (1) forwards in direction of arrow.

Remove sleeve for Bowden cable (2) from holder (3) in backrest lock.

Unhook Bowden cable from lever (1).

Fig 7: Unhooking Bowden Cable From Lever

Courtesy of BMW OF NORTH AMERICA, INC.

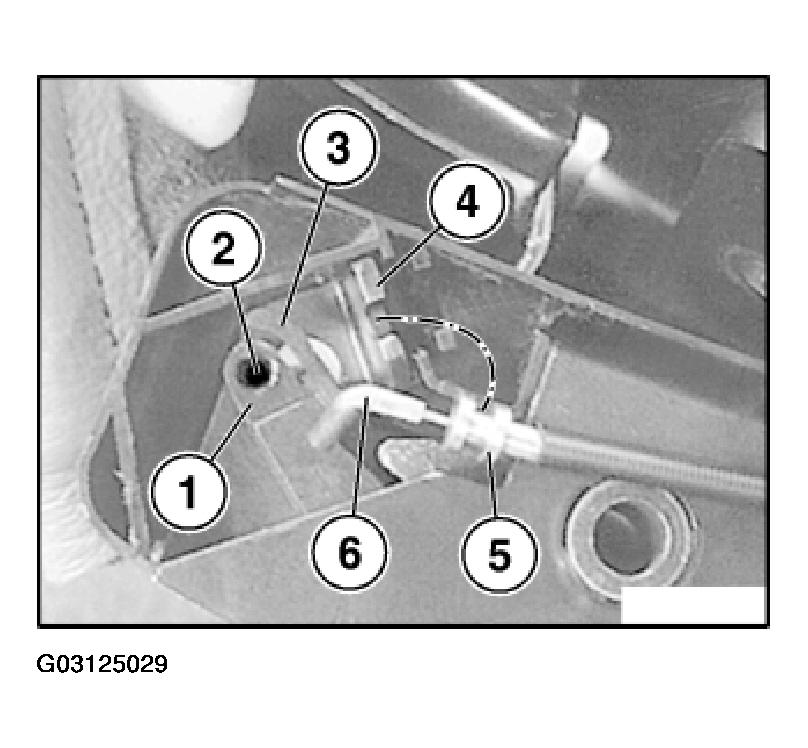

Summary, backrest lock, left:

1. Actuating lever for backrest lock in left backrest lock
2. Hole for Bowden cable of safety belt
3. Retaining lug for Bowden cable on actuating lever for backrest lock
4. Bracket for Bowden cable of safety belt
5. Bowden cable sleeve
6. Bowden cable of safety belt
   Fig 8: Backrest Lock (Left) Bowden Cable Sleeve

   Courtesy of BMW OF NORTH AMERICA, INC.
