52 26 301 Removing and installing/replacing actuating mechanism for left rear seat backrest (through-loading system)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

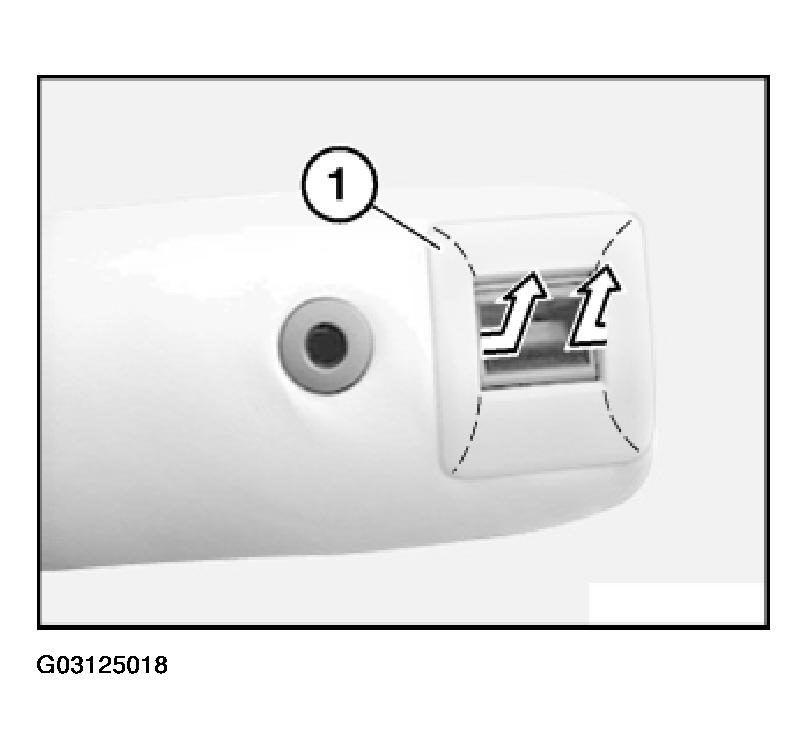

Grasp trim (1) for release lever from inside and pry out upward.

Fig 1: Removing Release Lever Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

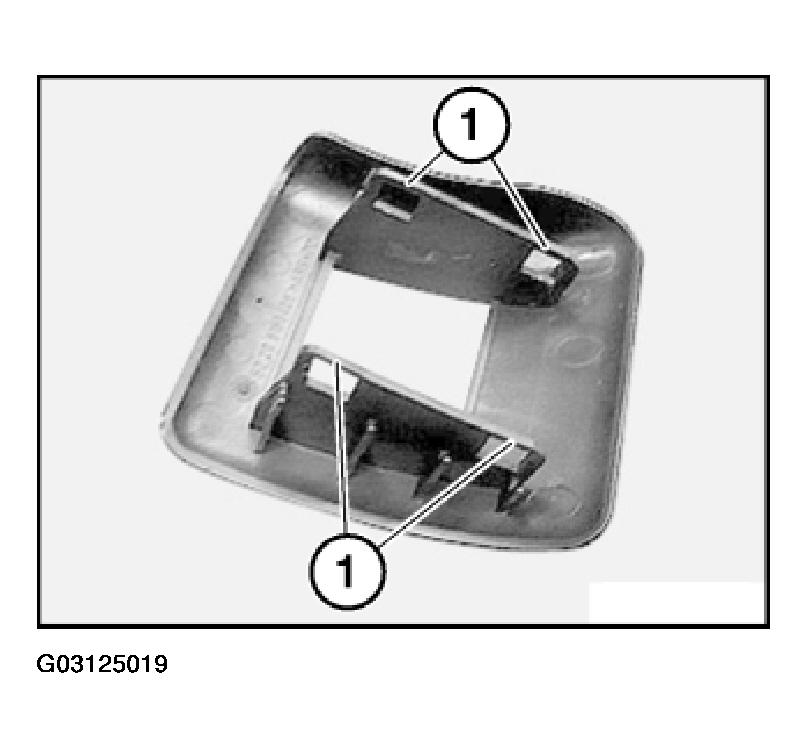

Retaining straps (1) must not be damaged.

Fig 2: Identifying Retaining Straps
Courtesy of BMW OF NORTH AMERICA, INC.

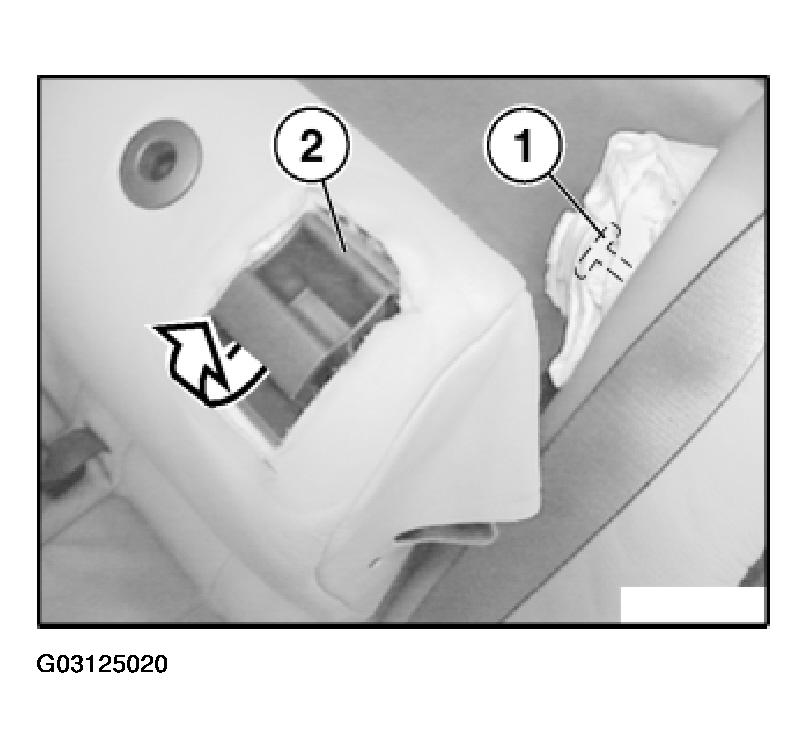

NOTE: Place cloth (1) over locking rod to prevent the rear seat backrest from locking down.

Pry out actuating mechanism (2) by pulling forwards and upwards.

Fig 3: Removing Actuating Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

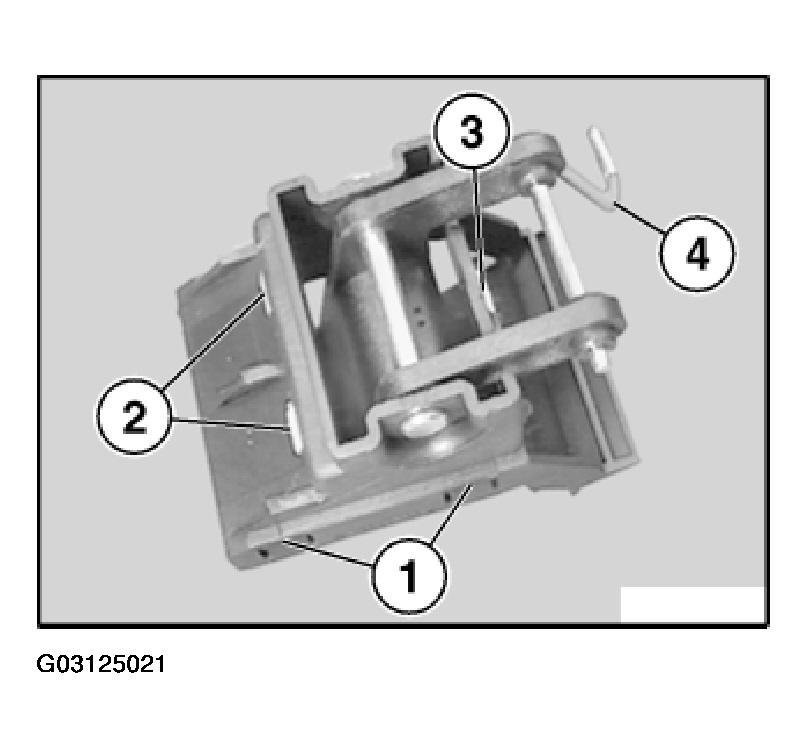

Locking tabs (1) on left/right sides (for trim on actuating mechanism) must not be damaged.
Locking tabs (2) at front and (3) back (for actuating mechanism) must not be damaged.
Actuating rod (4) must be correctly mounted and should not be bent.

Fig 4: Installing Actuating Rod
Courtesy of BMW OF NORTH AMERICA, INC.
