52 26 008 Removing and installing / replacing side section on rear seat backrest (through-loading system) on left or right (Touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Release rear-seat backrest and fold forward.

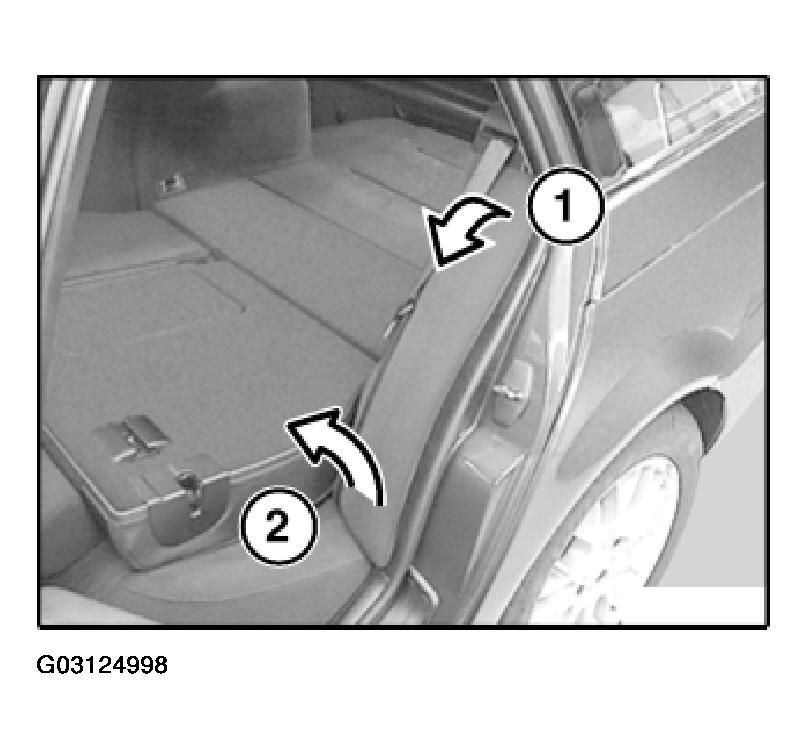

Unclip top section of backrest (1) and pull upwards (2) to remove.

Fig 1: Removing Top Section Of Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To install backrest side section, remove trim (2) at top.
Unlock both catches (1) with a screwdriver and take off trim (2).

Fig 2: Unlocking Catches
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and (2) of trim (3) must not be damaged.

Fig 3: Identifying Catches Of Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Twist clip (1) out of metal plate and slide into backrest side section.

Fig 4: Twisting Clip Out Of Metal Plate & Sliding Into Backrest Side Section
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push guide (1) into bracket (2) and guide (3) into bracket (4).

Fig 5: Installing Guide Into Bracket & Into Bracket
Courtesy of BMW OF NORTH AMERICA, INC.
