52 26 005 Removing and installing/replacing rear seat (through-loading system)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

4-door models only:

Unclip rear seat on left/right towards top.

For optional ext. seat heating only:

Disconnect cable.

Lift out seat.

Installation:

Feed belt buckles and lap belt (1) through intended openings into correct position.

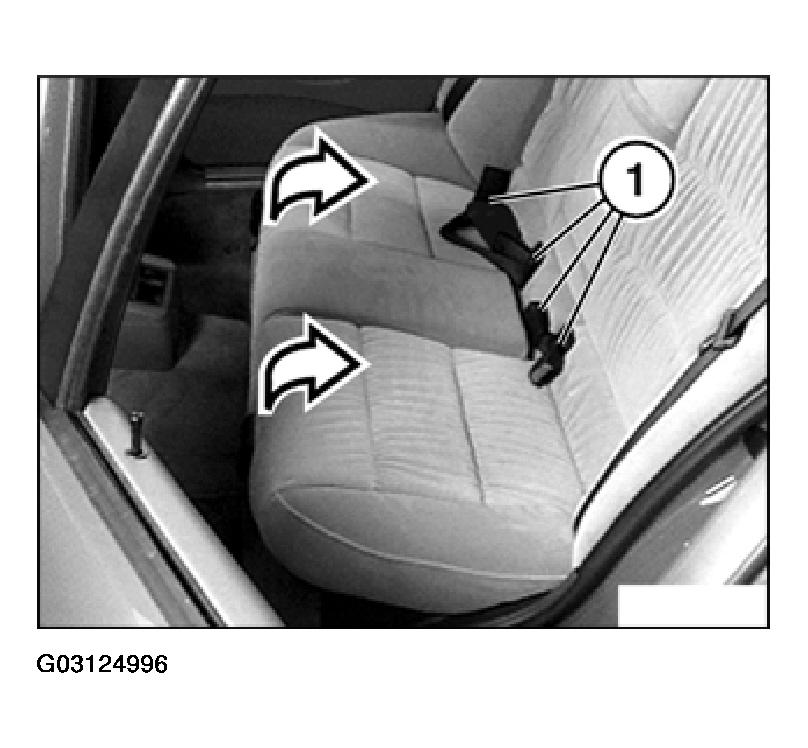

Fig 1: Unclipping Rear Seat On Left/Right Towards Top (4-Door Models Only)
Courtesy of BMW OF NORTH AMERICA, INC.

2-door models only:

Unclip rear seat on left/right towards top.

For optional ext. seat heating only:

Disconnect cable.

Pull out seat (if necessary under armrests) towards front.

Installation:

Feed belt buckles and lap belt through intended openings into correct position.
If necessary, make sure ISOFIX covers are correctly engaged.

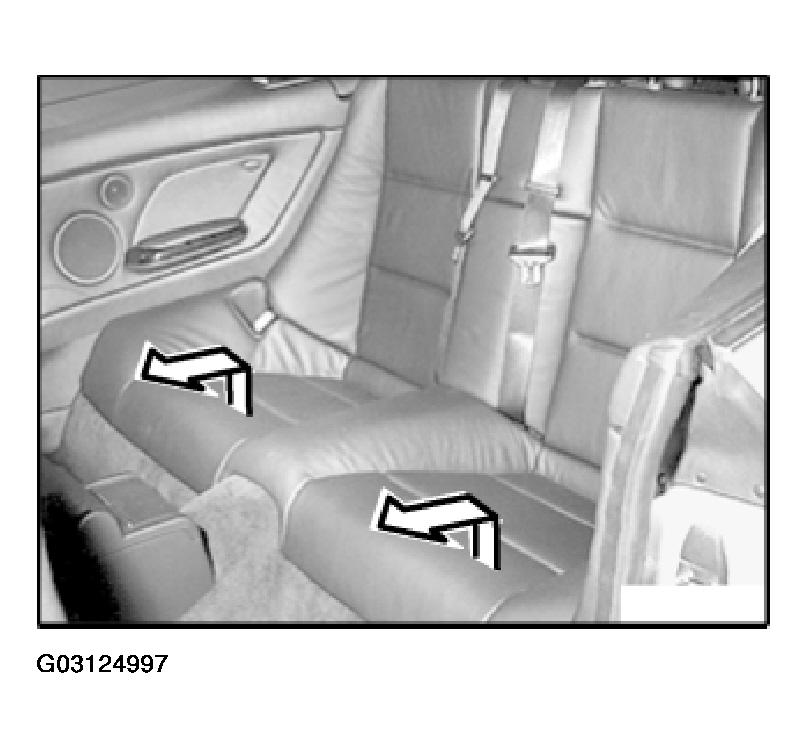

Fig 2: Unclipping Rear Seat On Left/Right Towards Top (2-Door Models Only)
Courtesy of BMW OF NORTH AMERICA, INC.
