52 13... Removing and installing/replacing guide for front left or right head restraint

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear panel on front seat backrest:

Basic seat, refer to REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL) .

Sports seat, refer to REMOVING AND INSTALLING/REPLACING REAR PANEL ON FRONT LEFT OR RIGHT SEAT BACKREST (SPORTS/MANUAL) .

Guide for head restraint with pushbutton:

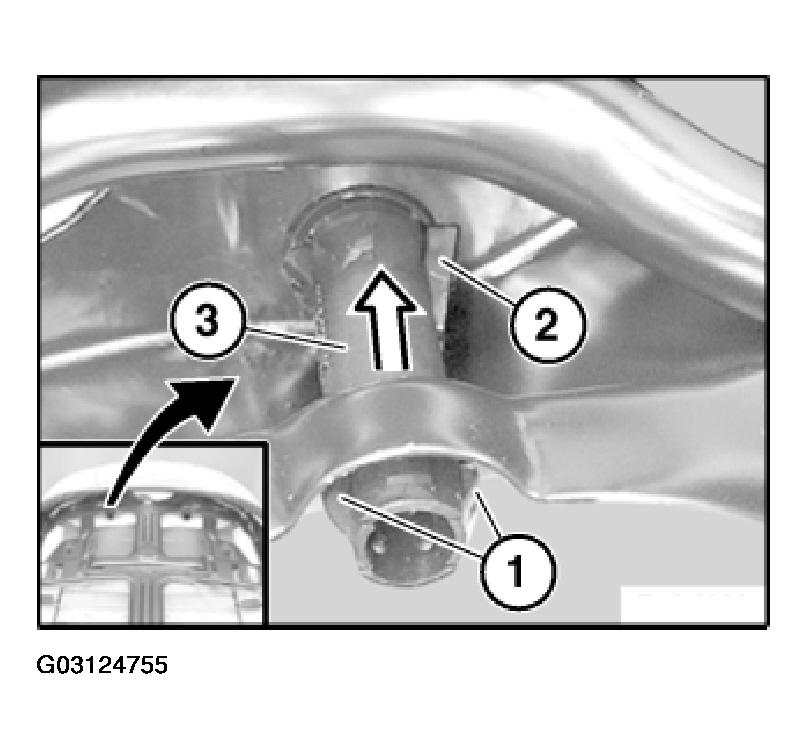

Release catches (1) and (2) and slide guide (3) upwards.

Fig 1: Releasing Catches & Sliding Guide Upwards (Guide For Head Restraint With Pushbutton)

Courtesy of BMW OF NORTH AMERICA, INC.

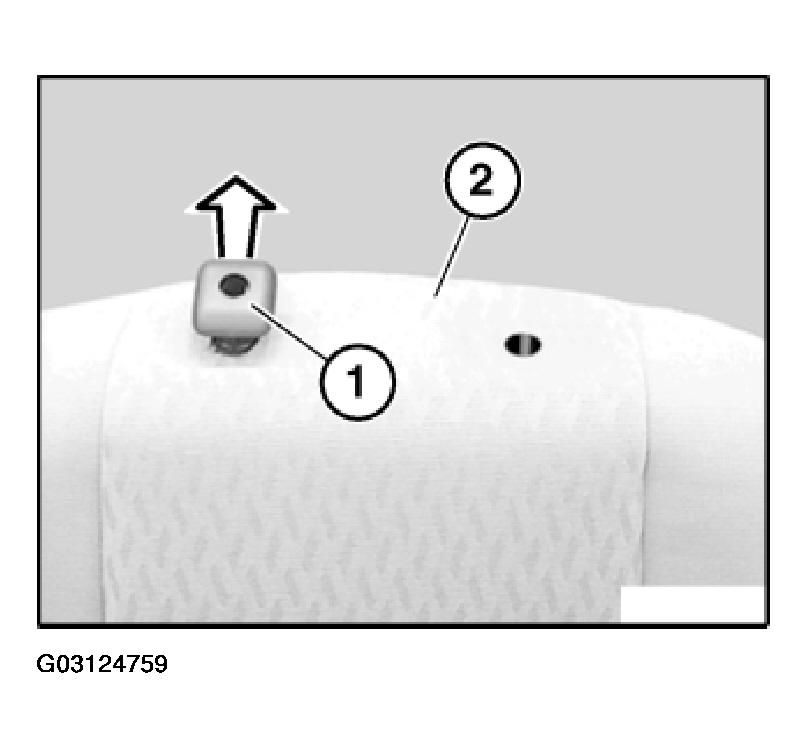

Pull guide (1) out of backrest (2).

Fig 2: Pulling Guide Out Of Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

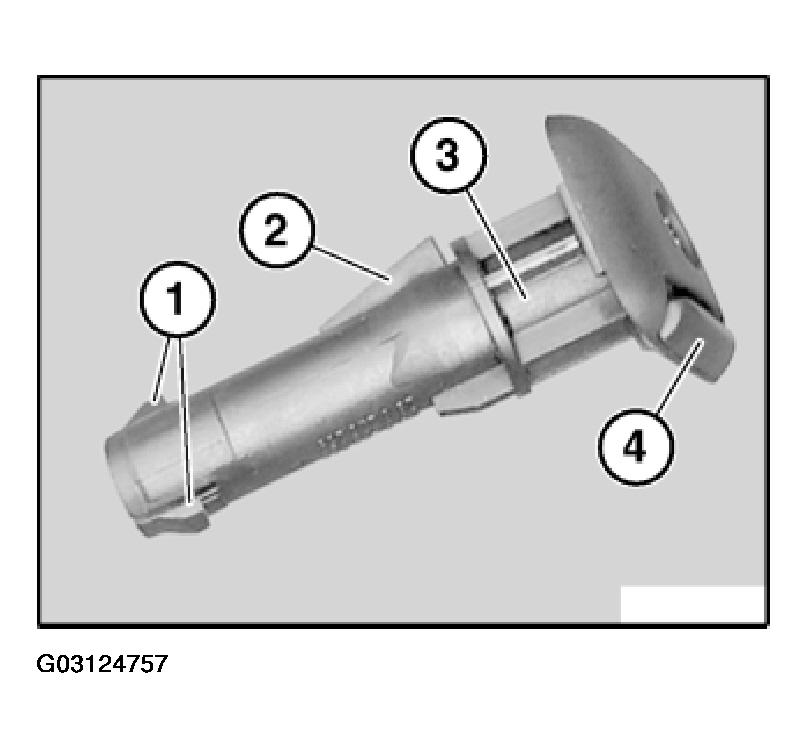

Installation:

Catches (1) and (2) on guide (3) must not be damaged.
Check that pushbutton (4) works properly.
After installing guide (3), make sure it is properly seated.

Fig 3: Installing Guide
Courtesy of BMW OF NORTH AMERICA, INC.

Guide for head restraint without pushbutton:

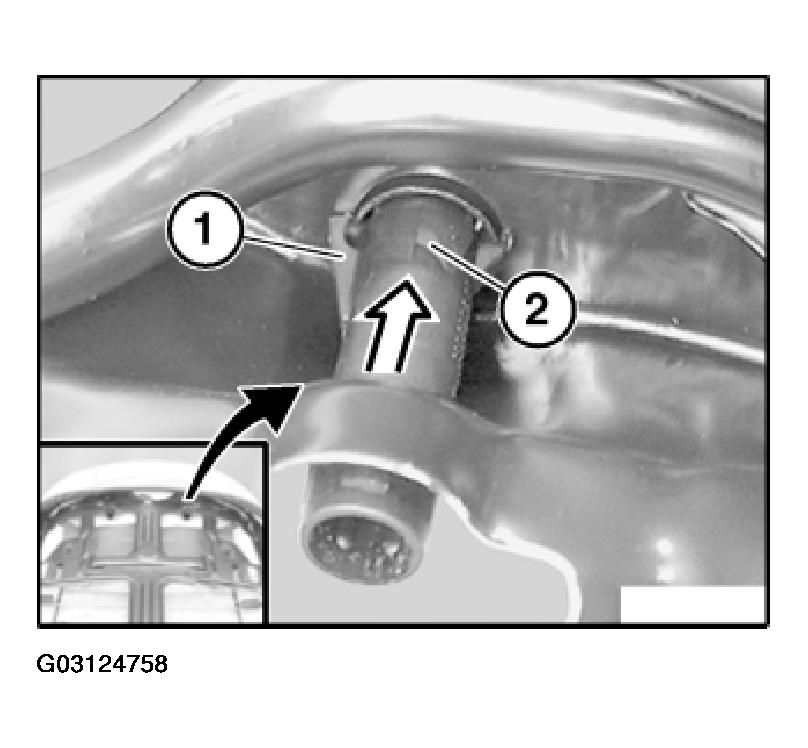

Release catches (1) and slide guide (2) upwards.

Fig 4: Releasing Catches & Sliding Guide Upwards (Guide For Head Restraint Without Pushbutton)

Courtesy of BMW OF NORTH AMERICA, INC.

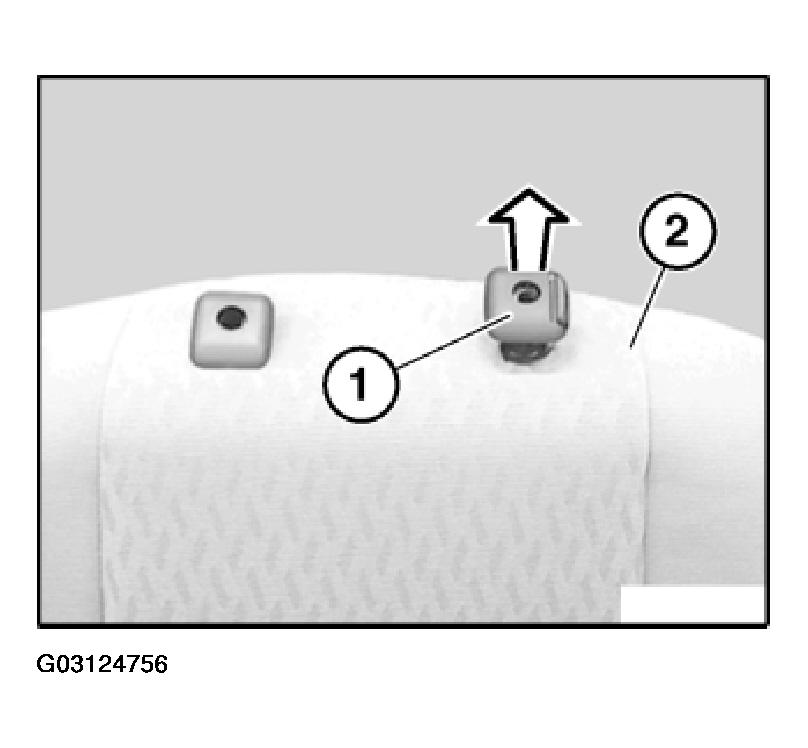

Pull guide (1) out of backrest (2).

Fig 5: Pulling Guide Out Of Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

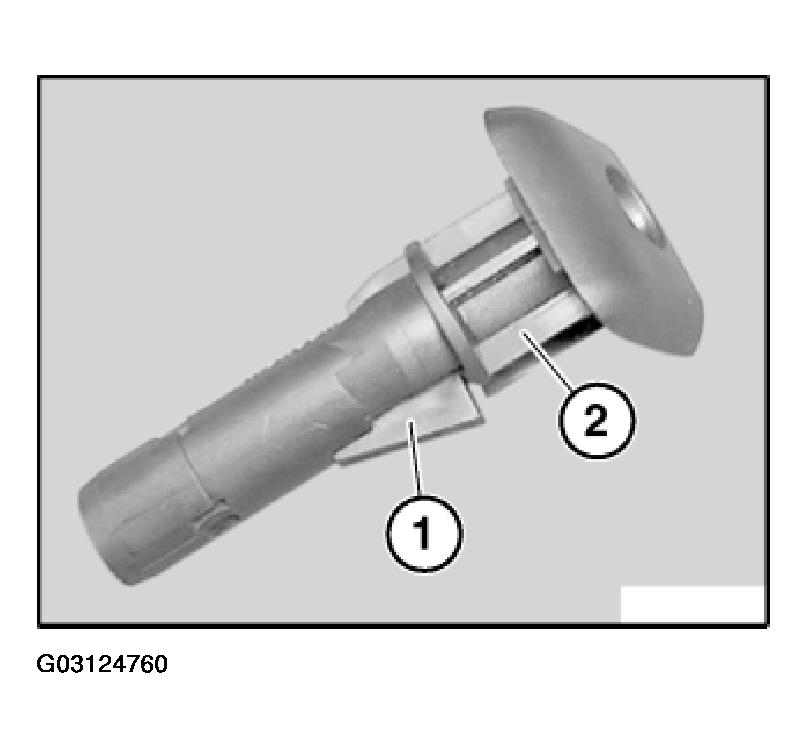

Installation:

Catch (1) on guide (2) must not be damaged.
After installing guide (2), make sure it is properly seated.

Fig 6: Installing Guide
Courtesy of BMW OF NORTH AMERICA, INC.
