Removal & Installation (V12)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Incorrectly connecting knock sensor connectors may cause engine damage. Ensure line routing and plug connections match original routing.

Turn ignition off. Remove appropriate intake manifold to access knock sensor. To remove knock sensor, remove bolt in center of sensor. See Fig 1 and Fig 2 . To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

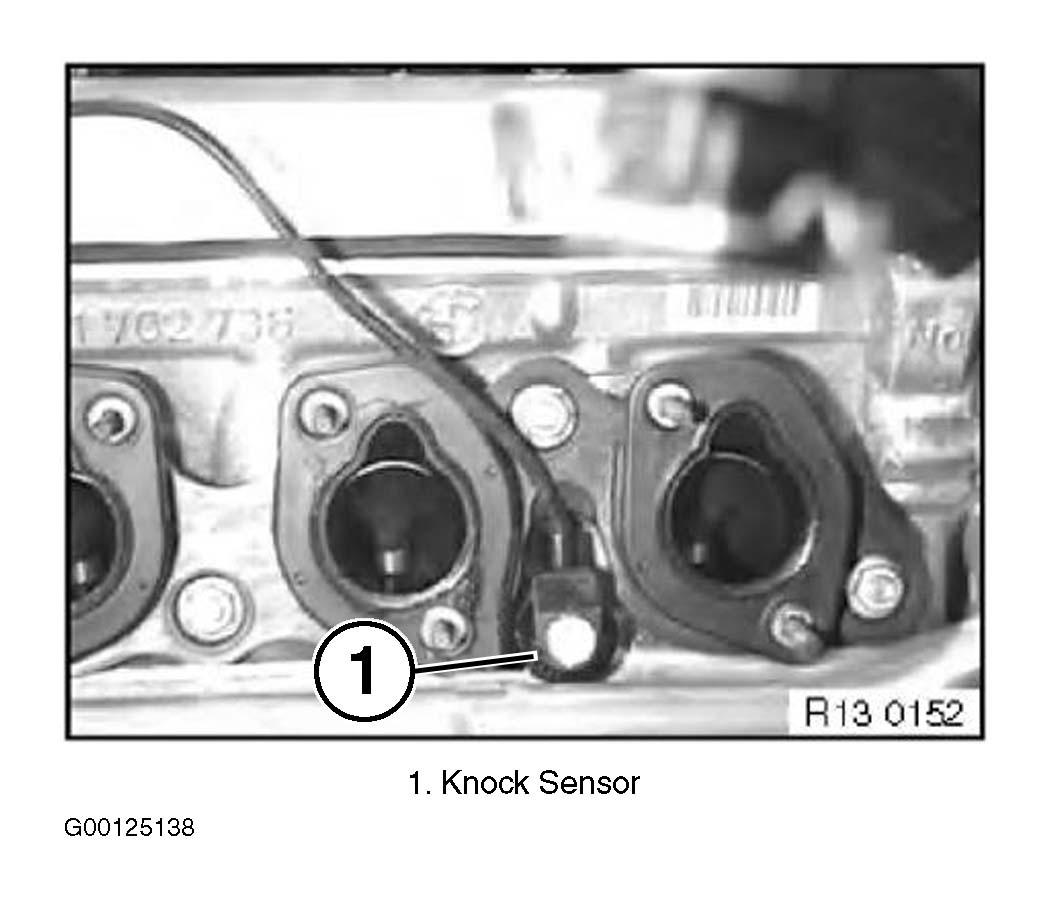

Fig 1: Removing Knock Sensor (Cylinders No. 1-3 Shown; Cylinders No. 7-9 Are Similar) (V12)

Courtesy of BMW OF NORTH AMERICA, INC.

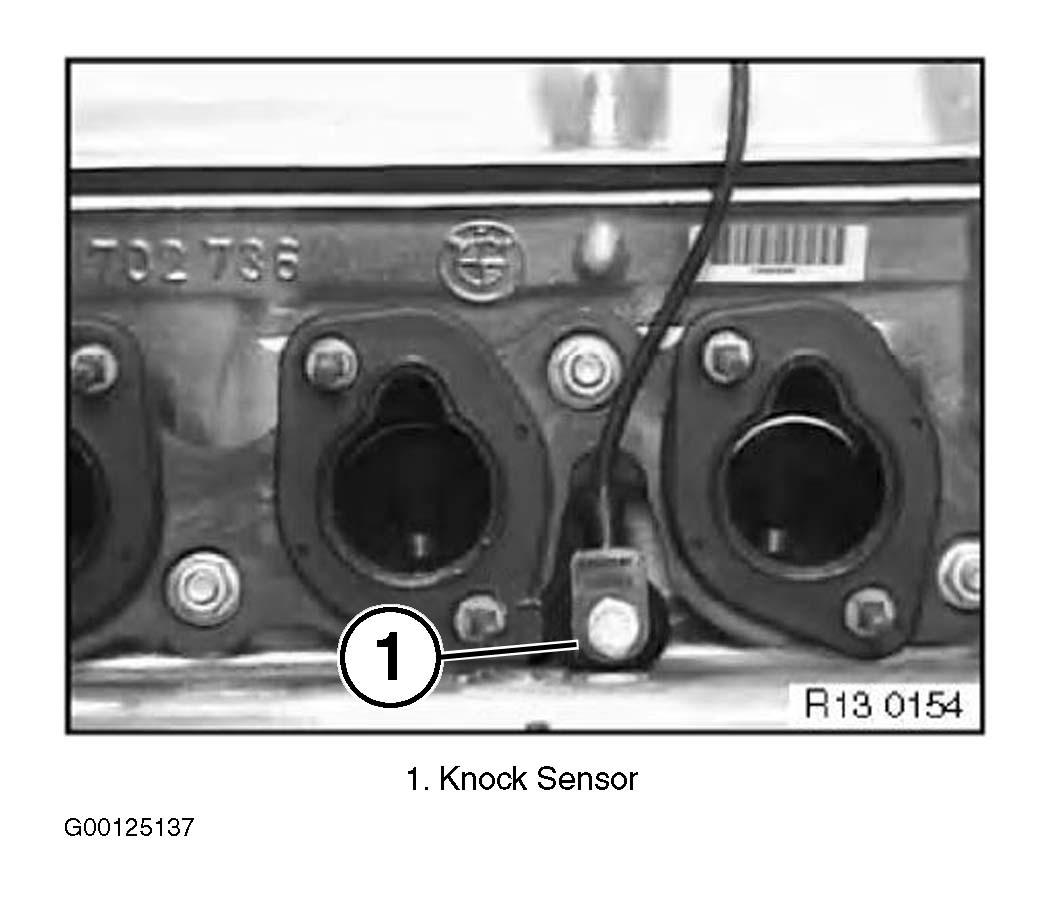

Fig 2: Removing Knock Sensor (Cylinders No. 4-6 Shown; Cylinders No. 10-12 Are Similar) (V12)

Courtesy of BMW OF NORTH AMERICA, INC.
