Removal & Installation (6-Cylinder)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove air intake ducting. Disconnect electrical connection from retainer at cable duct. See Fig 1. Remove bolt from knock sensor for cylinders No. 1-3, and bolt from knock sensor for cylinders No. 4-6. See Fig 2 and Fig 3 . Remove knock sensors, located on side of engine block. To install, reverse removal procedure. Clean knock sensor contact surface. When tightening knock sensors, ensure sensor and wiring do not interfere or chafe on brackets or other components. See TORQUE SPECIFICATIONS .

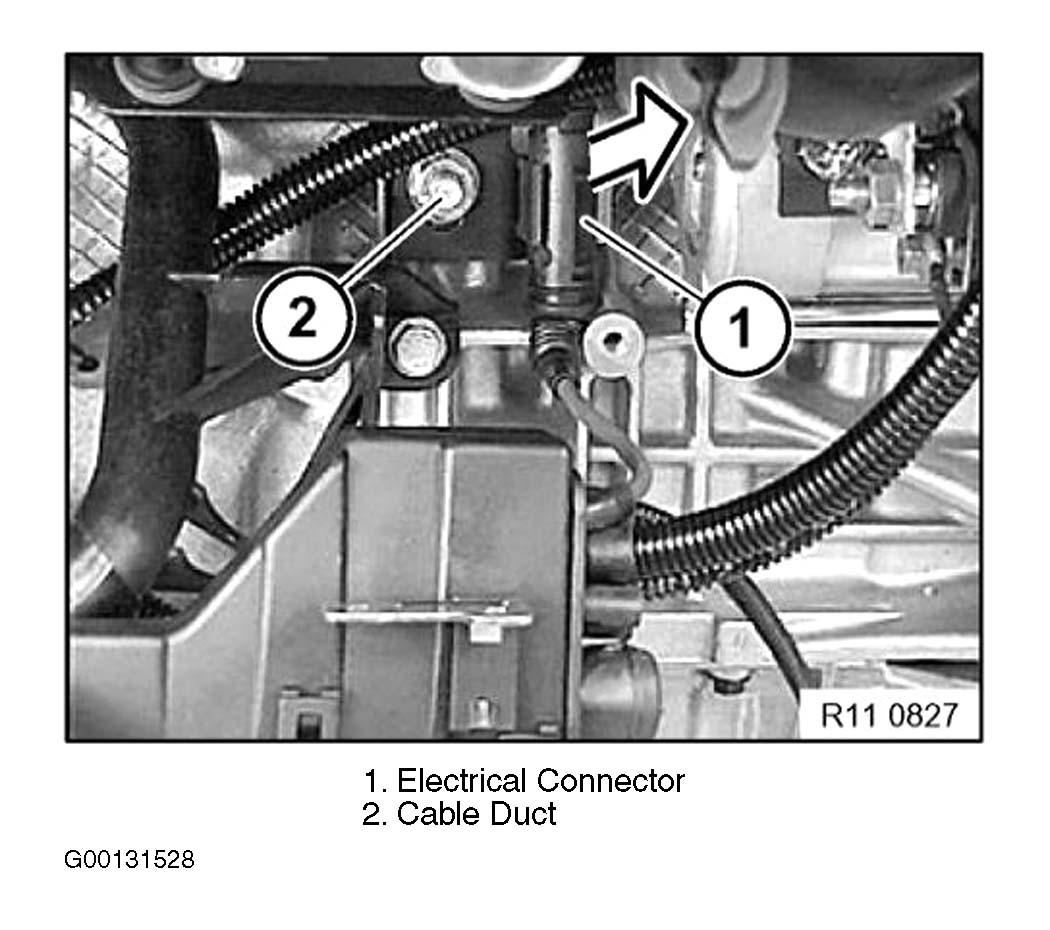

Fig 1: Locating Knock Sensor Electrical Connector (6-Cyl.)

Courtesy of BMW OF NORTH AMERICA, INC.

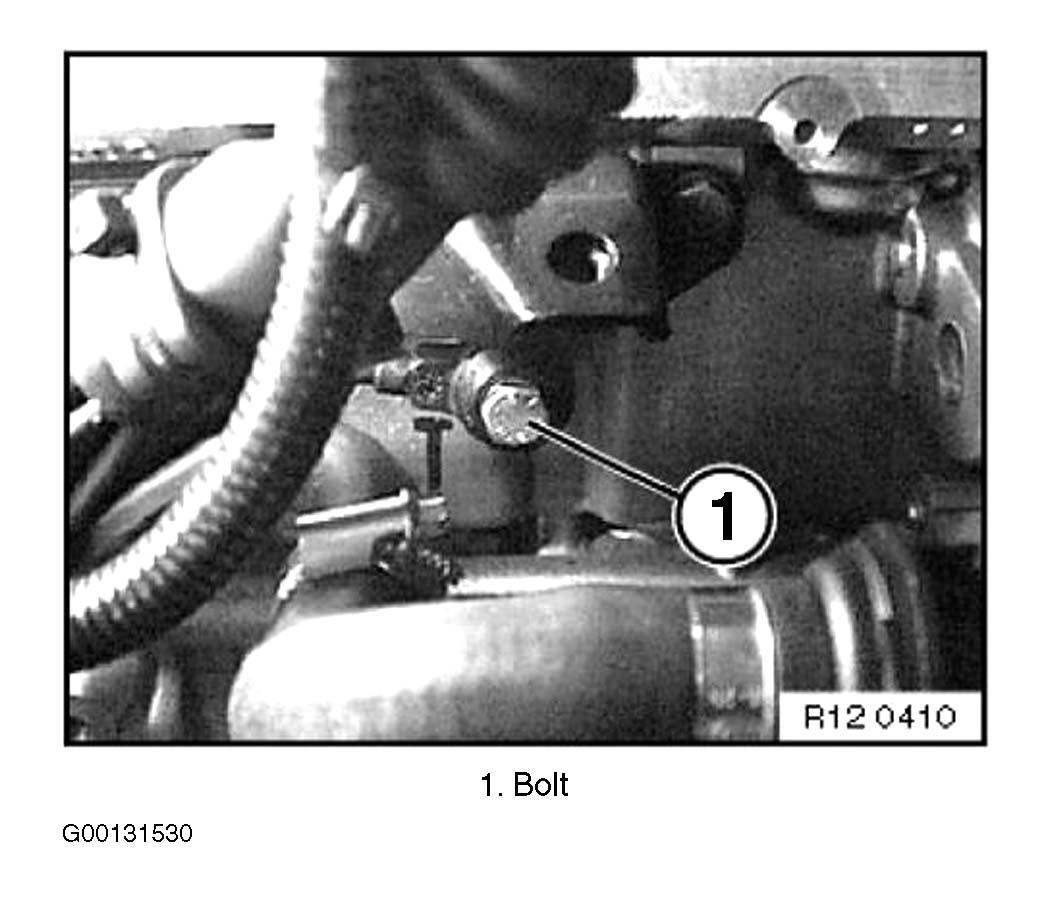

Fig 2: Removing Knock Sensor (Cylinders No. 1-3) (6-Cyl.)

Courtesy of BMW OF NORTH AMERICA, INC.

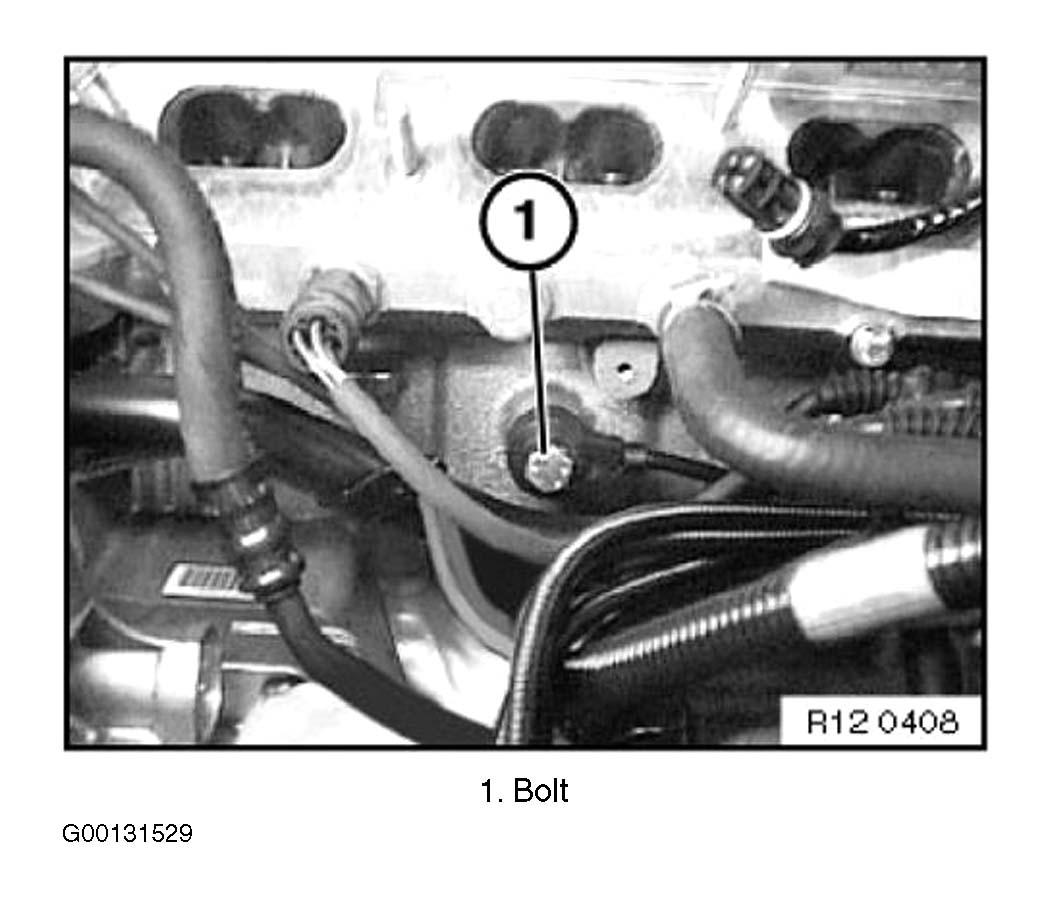

Fig 3: Removing Knock Sensor (Cylinders No. 4-6) (6-Cyl.)

Courtesy of BMW OF NORTH AMERICA, INC.
