Removal & Installation (Right Side)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition off. Press interlock and remove connector. See Fig 1. Open clips on air filter housing. Unfasten hose clip from auxiliary hose for air pump. Pull off hose. Disconnect plug-in connection. Release hose clamp and withdraw hose. Remove upper section of suction filter housing style with mass airflow sensor. See Figure. Pull air hose off air intake hose.
Unclip air hoses from bracket. Unclip diagnosis connector from bracket. Unfasten screw connection for ignition wiring harness from manifold. Remove spark plug connectors. Unfasten cable tie on protective cap for distributor cap. Unfasten 3 clips and remove protective cap for distributor cap. See Fig 2-Fig 5 . Remove ignition wires as necessary. To install, reverse removal procedure.

Fig 1: Disconnecting Electrical Connector (V12)
Courtesy of BMW OF NORTH AMERICA, INC.

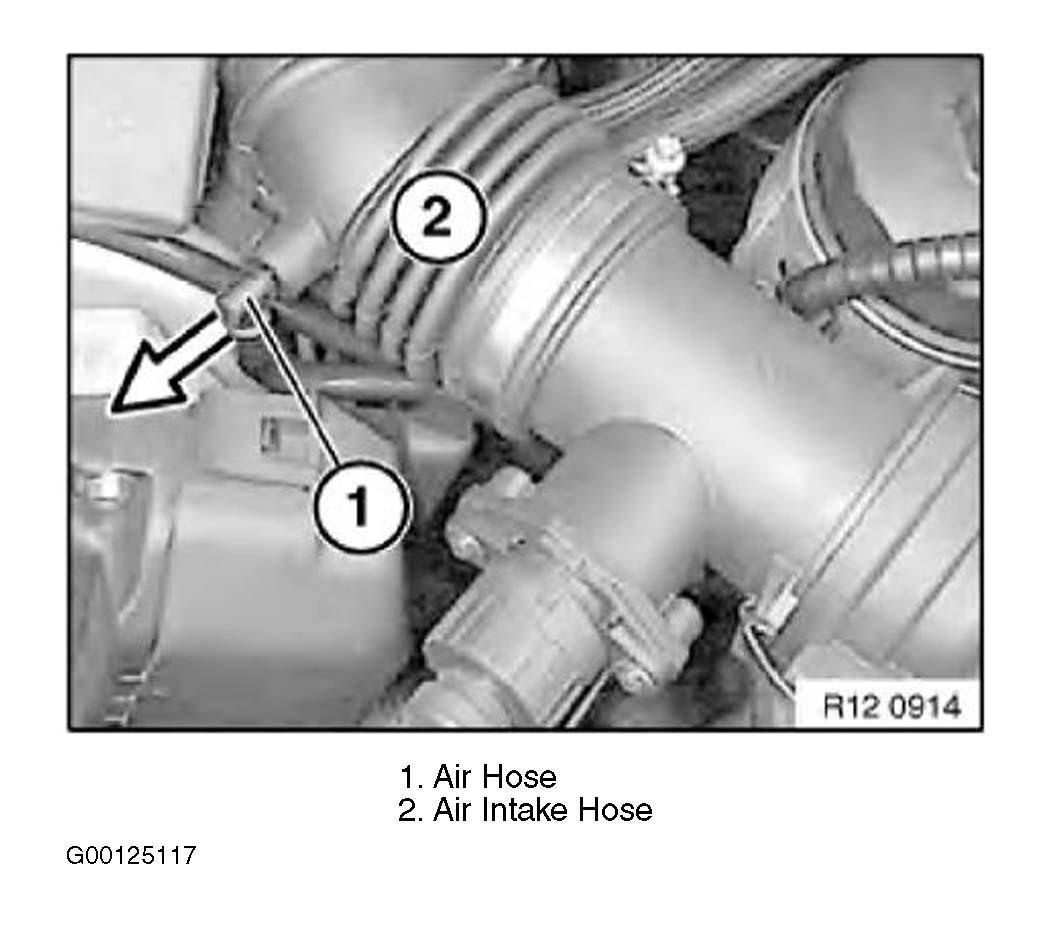

Fig 2: Removing Air Hose From Air Intake Hose (V12)
Courtesy of BMW OF NORTH AMERICA, INC.

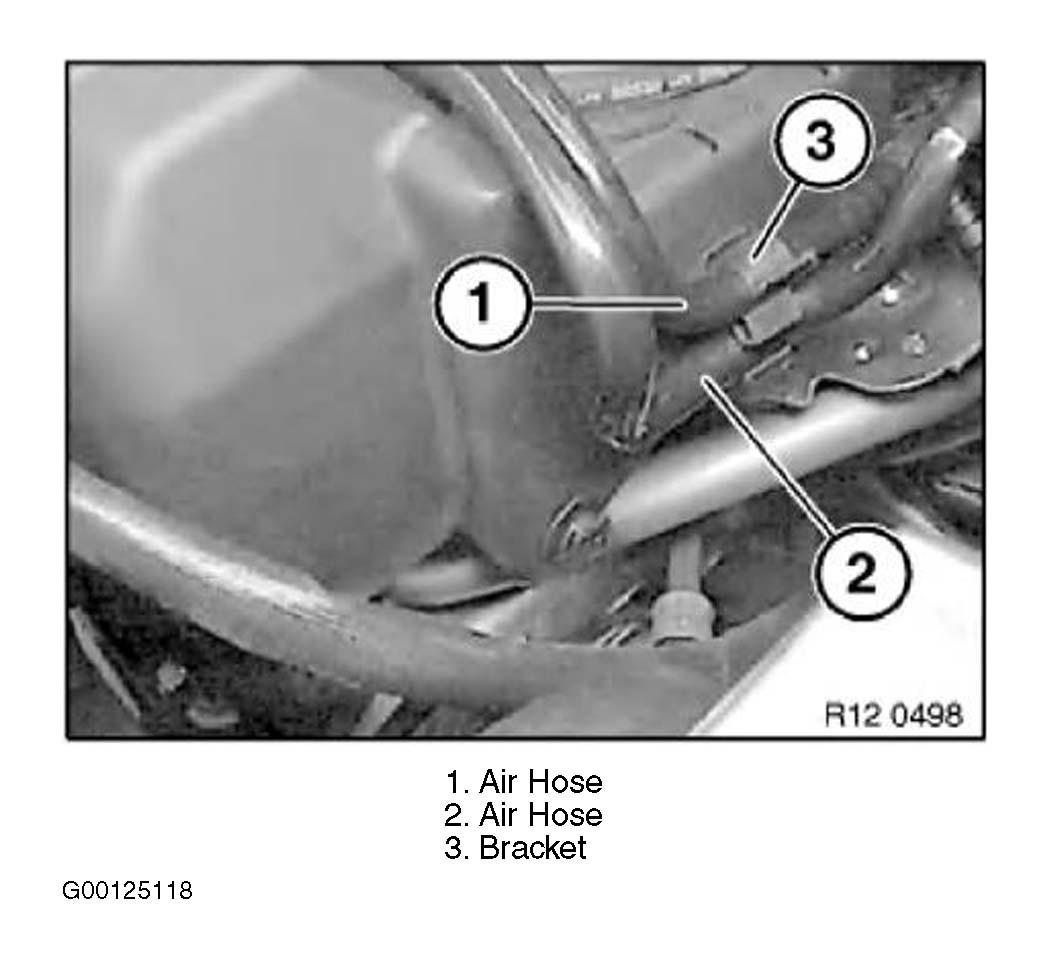

Fig 3: Unclipping Air Hoses No. 1 & 2 From Bracket (V12)
Courtesy of BMW OF NORTH AMERICA, INC.

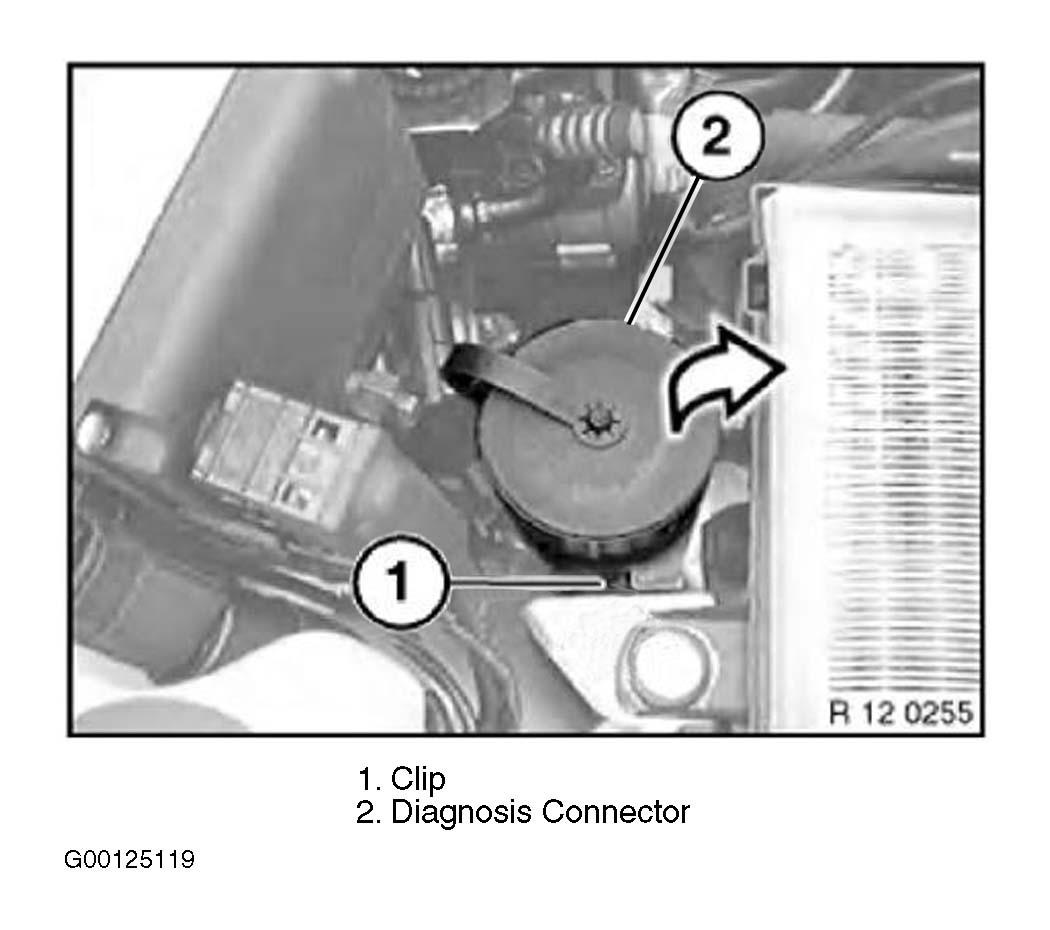

Fig 4: Unclipping Diagnosis Connector From Bracket (V12)
Courtesy of BMW OF NORTH AMERICA, INC.

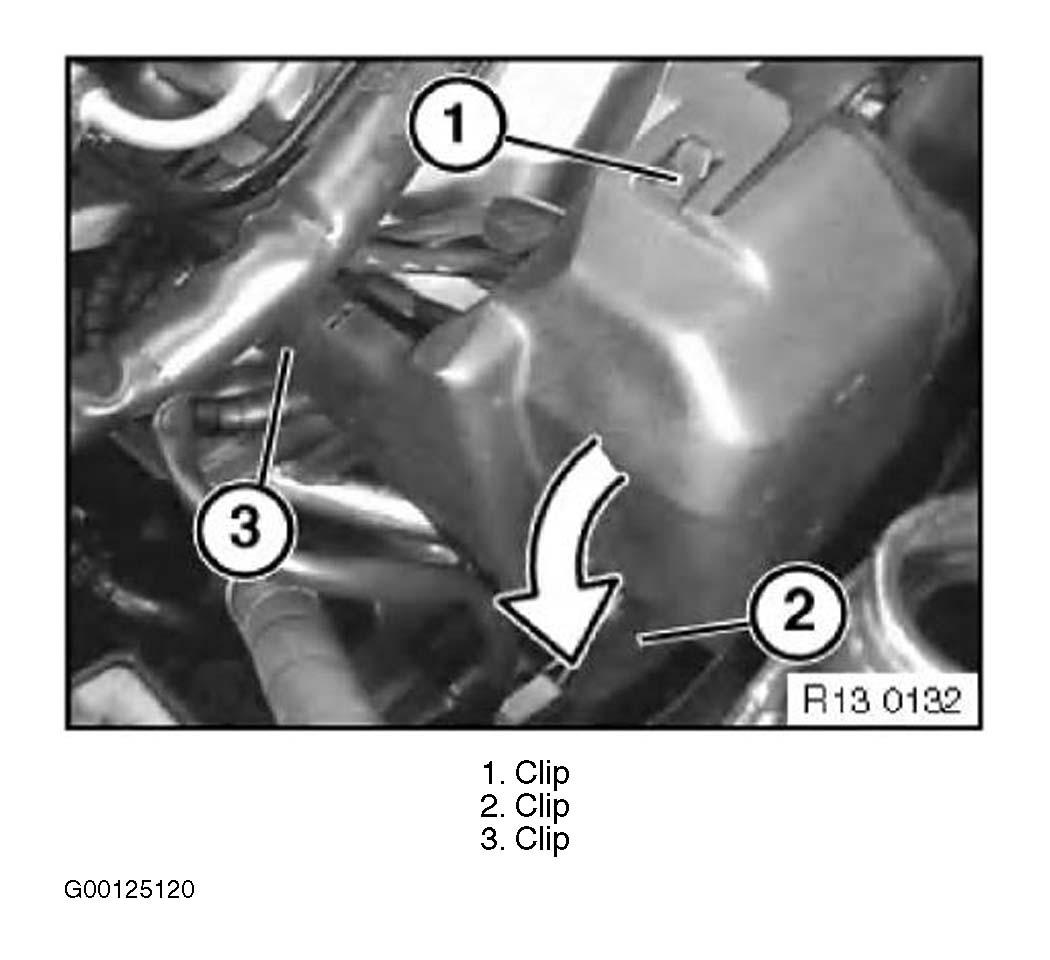

Fig 5: Unfastening Clips No. 1-3 On Distributor Cap (V12)
Courtesy of BMW OF NORTH AMERICA, INC.
