Removal & Installation

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove distributor. See DISTRIBUTOR CAP (V12) . Remove 3 rotor bolts. See Fig 1. Remove rotor. To install, reverse removal procedure.

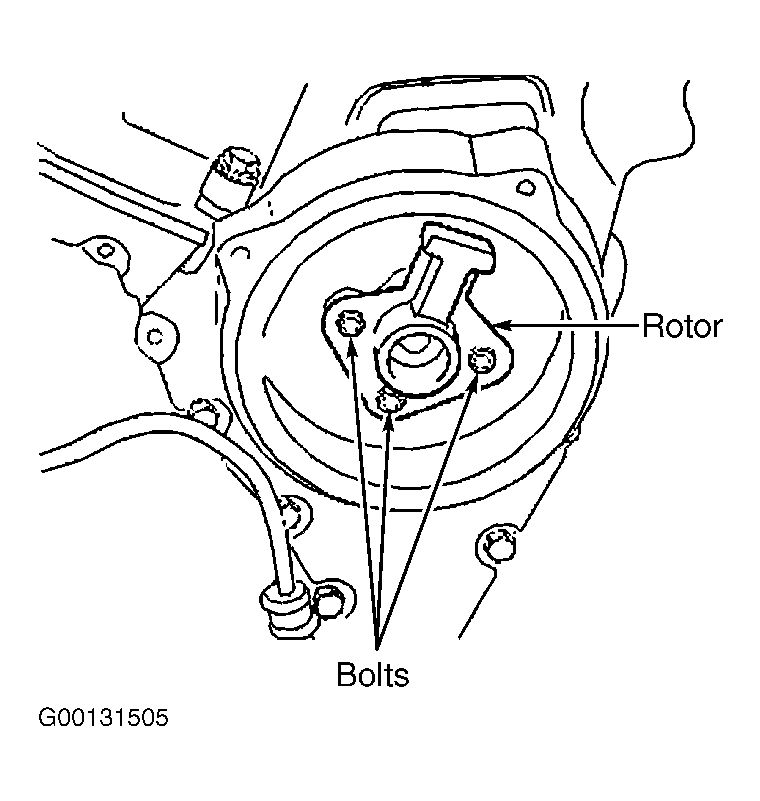

Fig 1: Removing Distributor Rotor (V12)
G00131505Courtesy of BMW OF NORTH AMERICA, INC.
