Removal & Installation (6-Cylinder)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

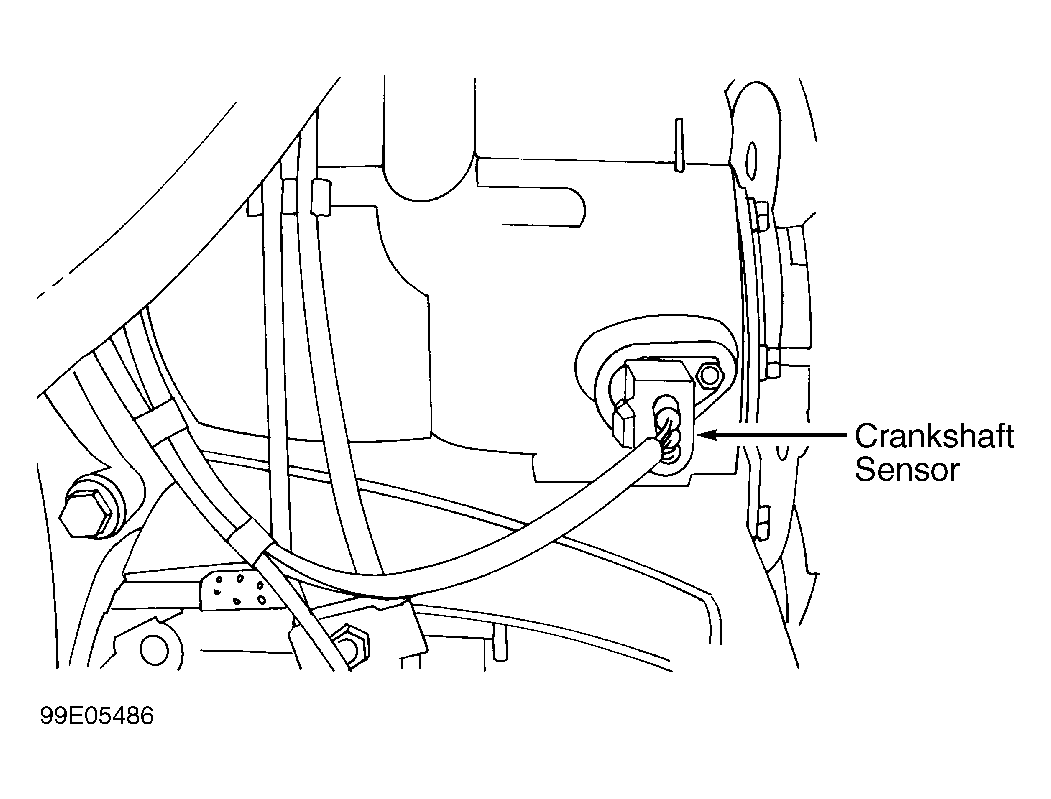

Crankshaft position sensor is located below starter. Remove cover under engine. Disconnect crankshaft position sensor connector. Remove crankshaft position sensor screw. Remove crankshaft position sensor. To install, reverse removal procedure. Replace sealing ring as necessary.
