Removal & Installation (V12)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

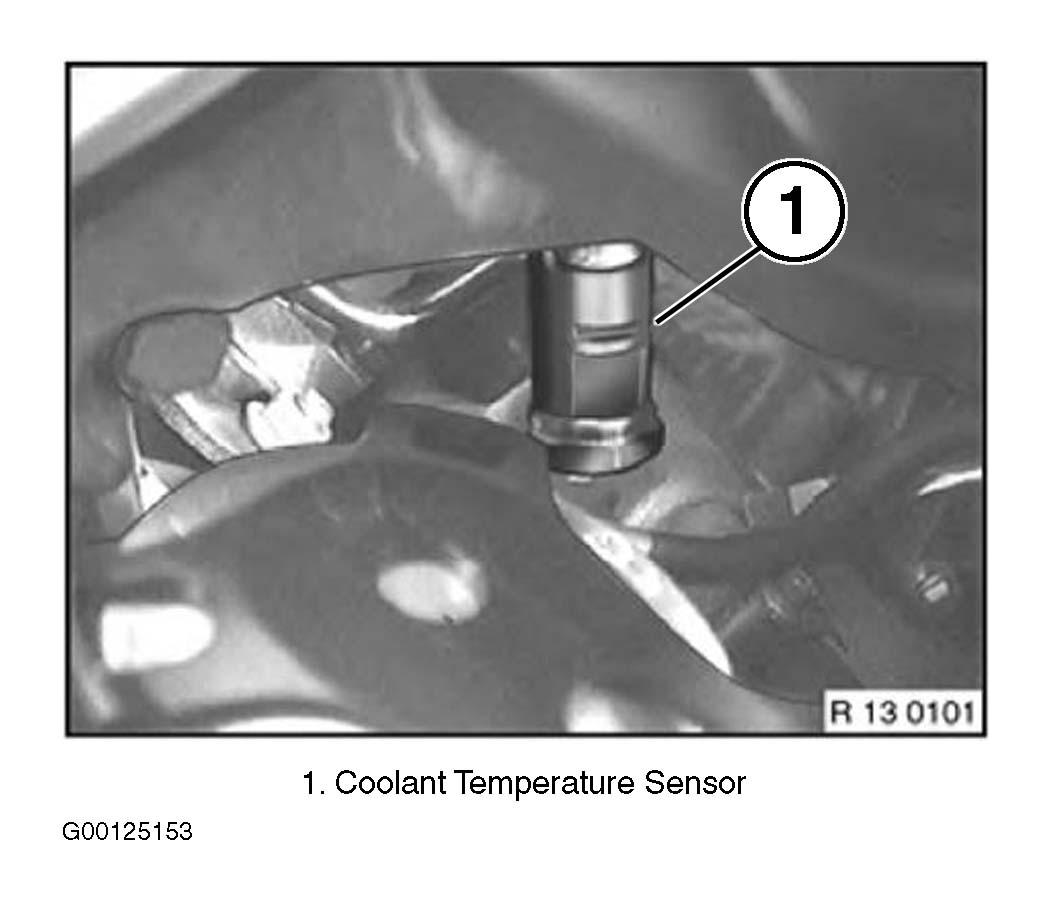

Coolant temperature sensor is located under front cable duct on water pump housing. Turn ignition off. Remove non-return valve on cylinders No. 1-6. See NON-RETURN VALVE . Disconnect sensor electrical connector. Remove temperature sensor. See Fig 1. To install, reverse removal procedure.
