Removal & Installation (6-Cylinder)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

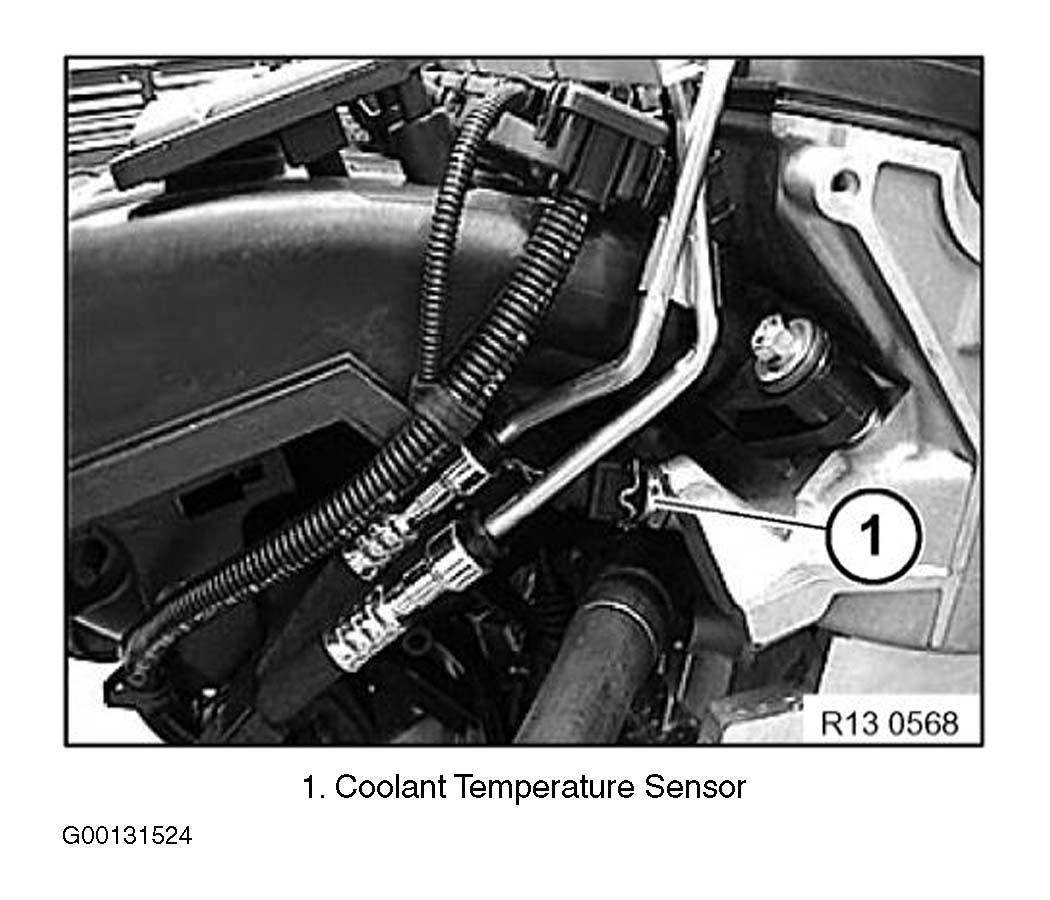

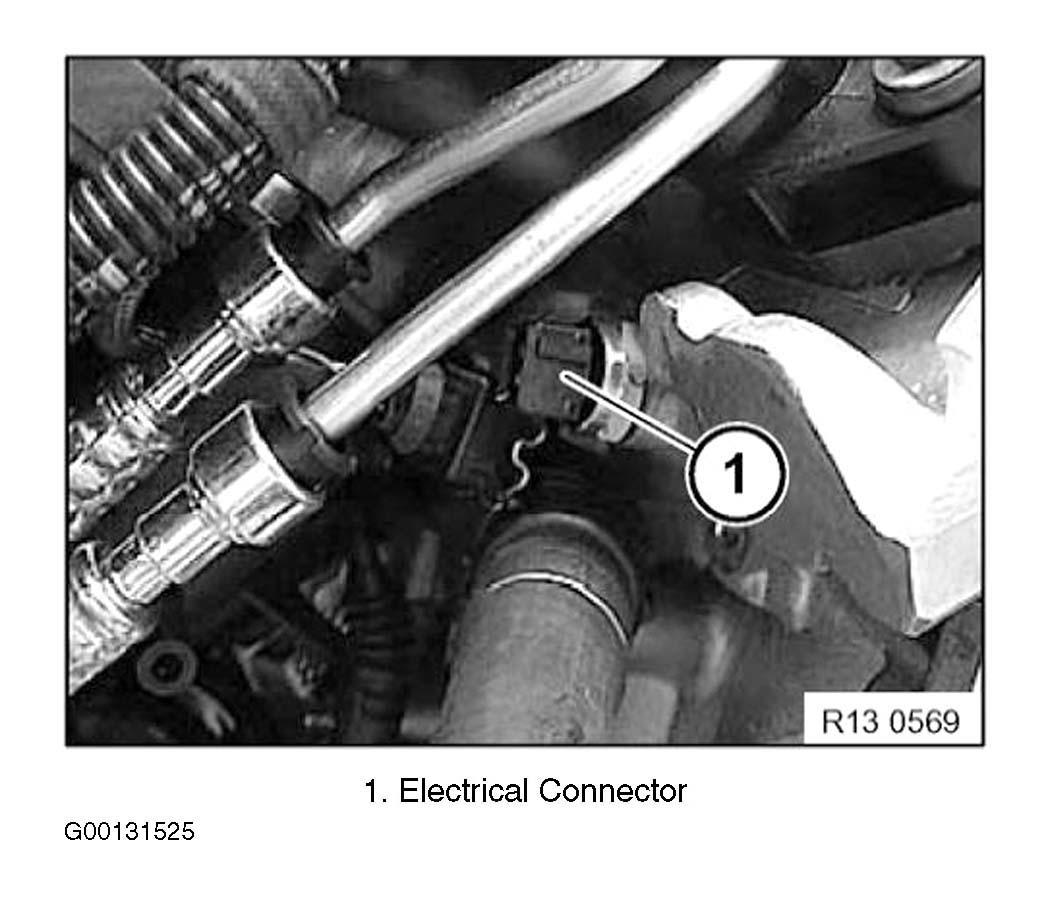

Coolant temperature sensor is located under intake air manifold in cylinder head on cylinder No. 6. See Fig 1. Disconnect intake manifold. Disconnect electrical connector and unscrew temperature sensor. See Fig 2. Remove coolant temperature sensor. To install, reverse removal procedure. Check coolant level and top up coolant if necessary. Read out fault memory of DME control module, check stored fault messages, rectify faults, and cancel fault memory.
