Removal & Installation (V8)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine cover. See Figure. Locate sensor on front of right cylinder head. Remove sensor. See Fig 1. Disconnect connector located on top of engine at harness conduit. To install, reverse removal procedure.

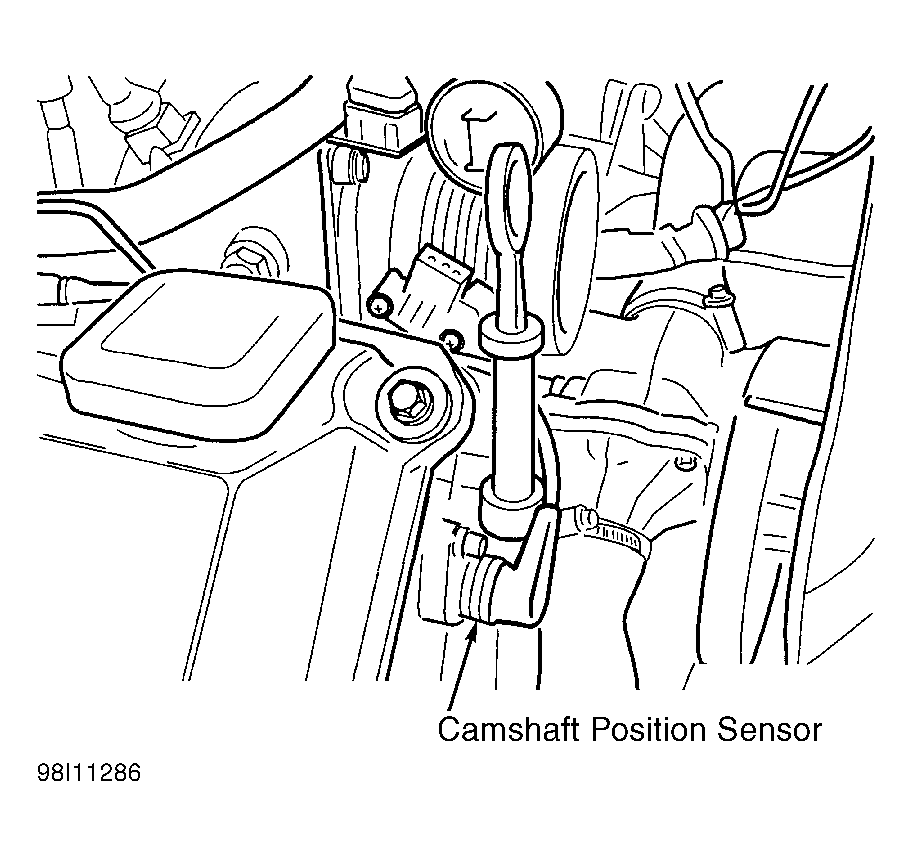

Fig 1: Removing Camshaft Position Sensor (V8)

Courtesy of BMW OF NORTH AMERICA, INC.
