Removal & Installation (V8)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine cover. See Figure. Disconnect mass airflow sensor, idle speed control actuator and throttle position sensor connectors. See Fig 1. Remove top of air cleaner housing.
Disconnect throttle cable, hoses and idle speed control actuator from throttle body. See Fig 2. Remove 6 throttle body bolts. See Fig 3. Remove throttle body. To install, reverse removal procedure.

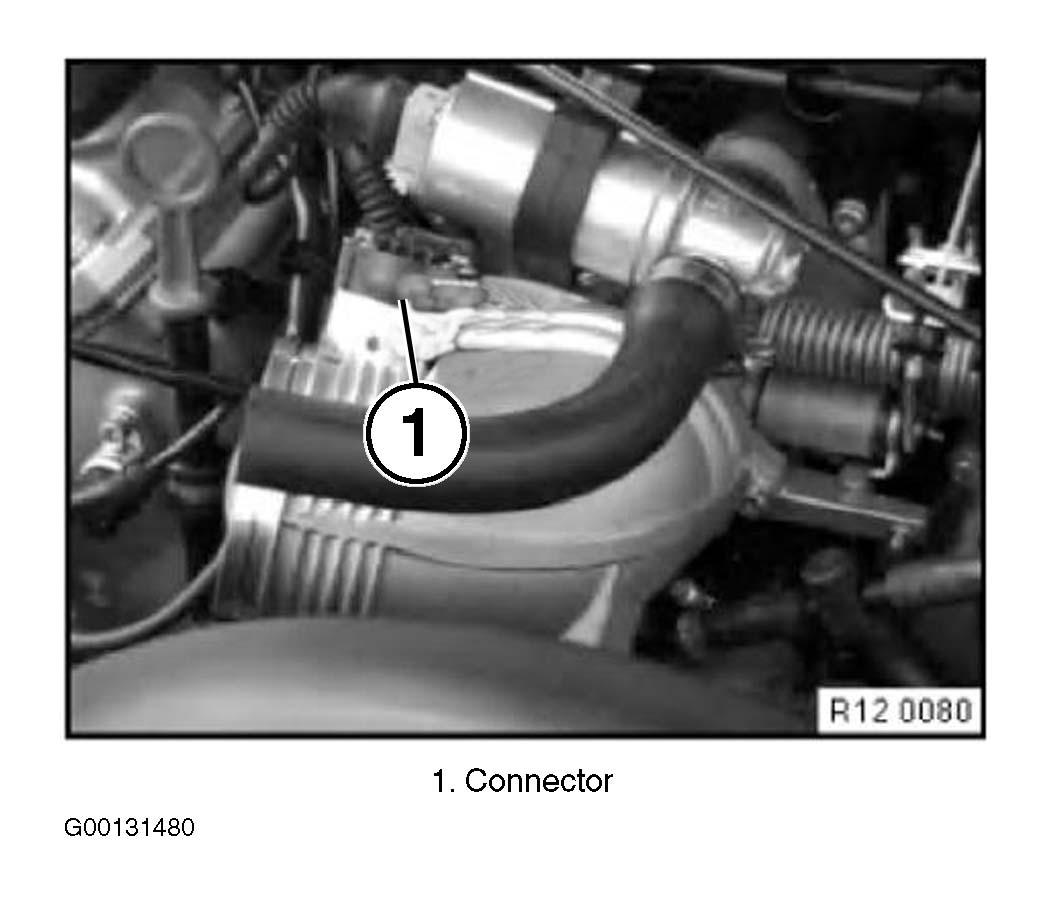

Fig 1: Disconnecting Idle Speed Control & Throttle Position Sensor Connectors (V8)

Courtesy of BMW OF NORTH AMERICA, INC.

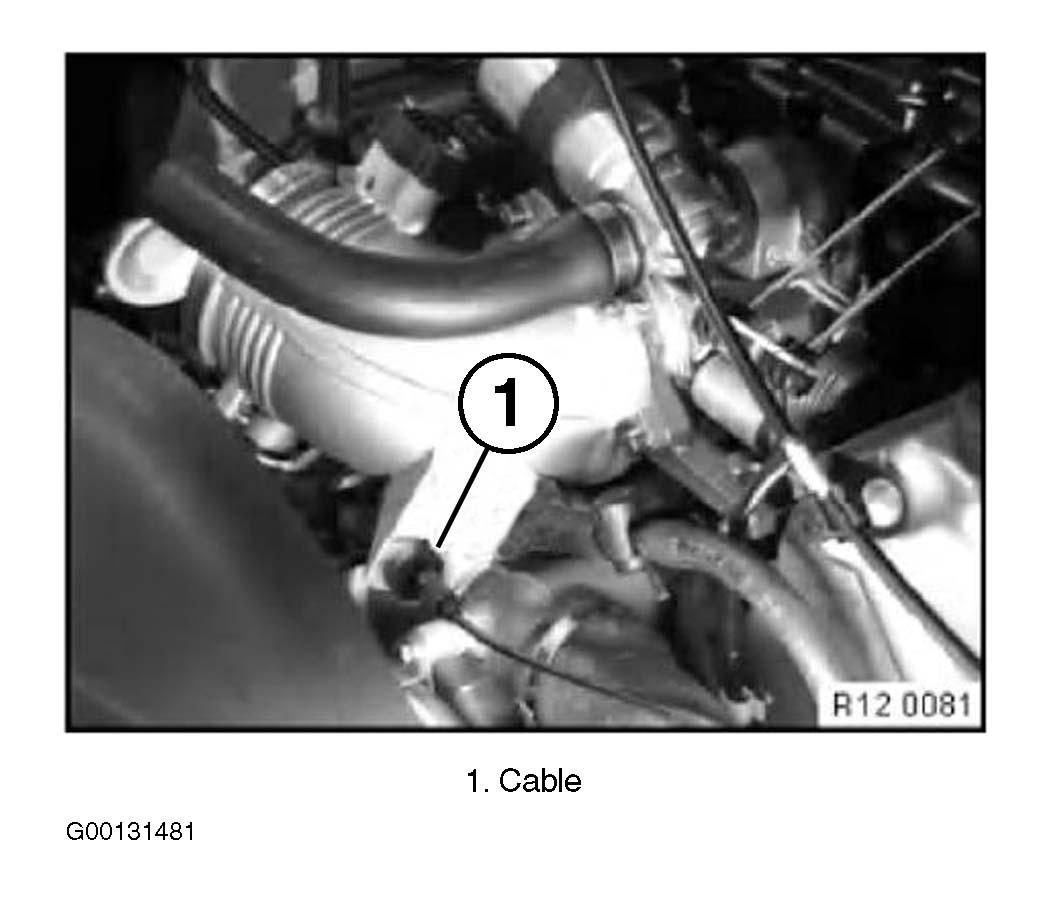

Fig 2: Disconnecting Throttle Cable (V8)

Courtesy of BMW OF NORTH AMERICA, INC.

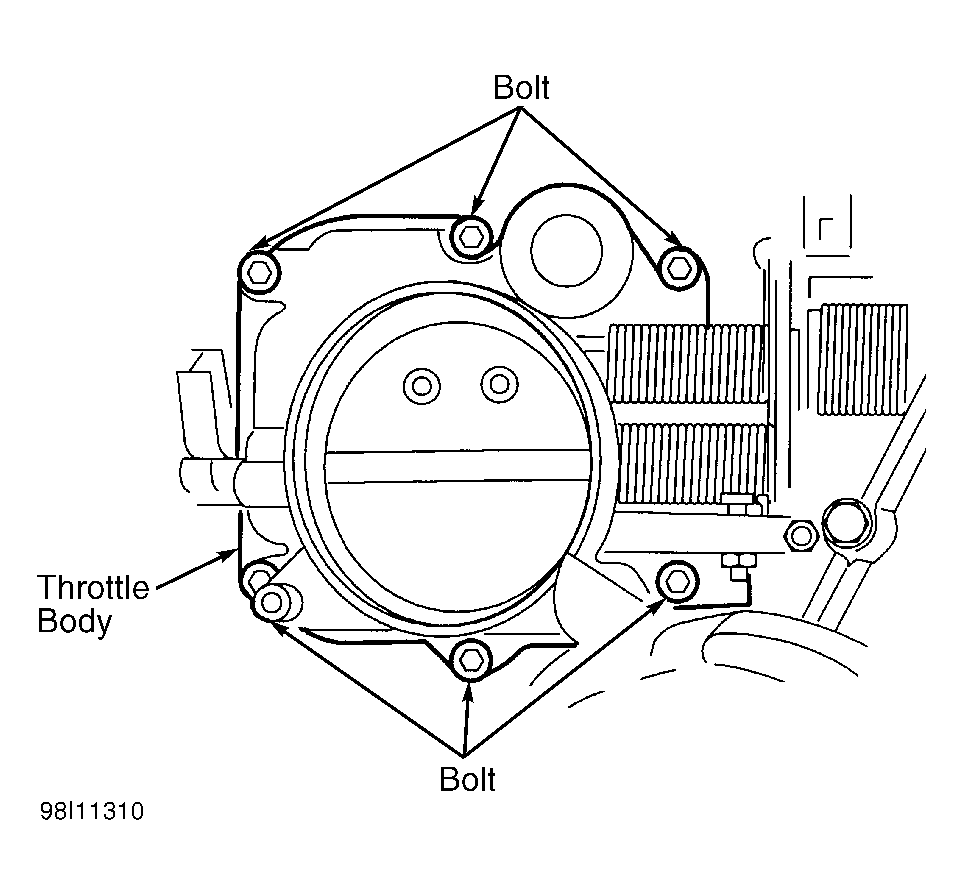

Fig 3: Removing Throttle Body (V8)

Courtesy of BMW OF NORTH AMERICA, INC.
