Removal & Installation (V12)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition off. Disconnect batteries. Remove engine cover. To remove throttle body for cylinders 7-12, remove suction hose from throttle body. Disconnect electrical connector. Remove bolts. Remove bracket with positive battery terminal. Remove hose clamp and withdraw hose. Remove hose. If installed, remove faulty air valve. To remove throttle body on cylinders 1-6, remove suction hose on throttle body. Disconnect electrical connector. Remove bolts. Remove hose clip and remove hose. See Fig 1-Fig 4 . Remove air relief valve. To install, reverse removal procedure. Replace gasket, fuel hose to tank vent valve, and hose clips.

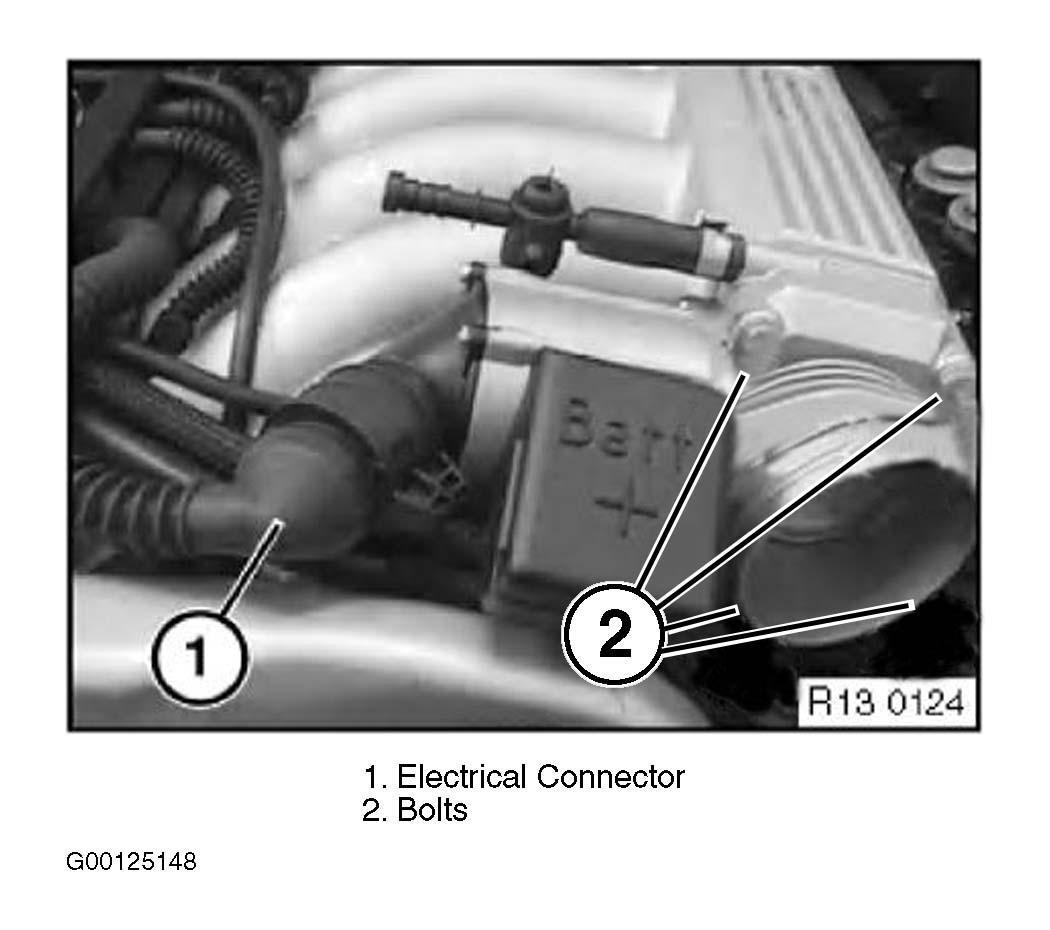

Fig 1: Removing Throttle Body Bolts (Cylinders No. 7-12) (V12)

Courtesy of BMW OF NORTH AMERICA, INC.

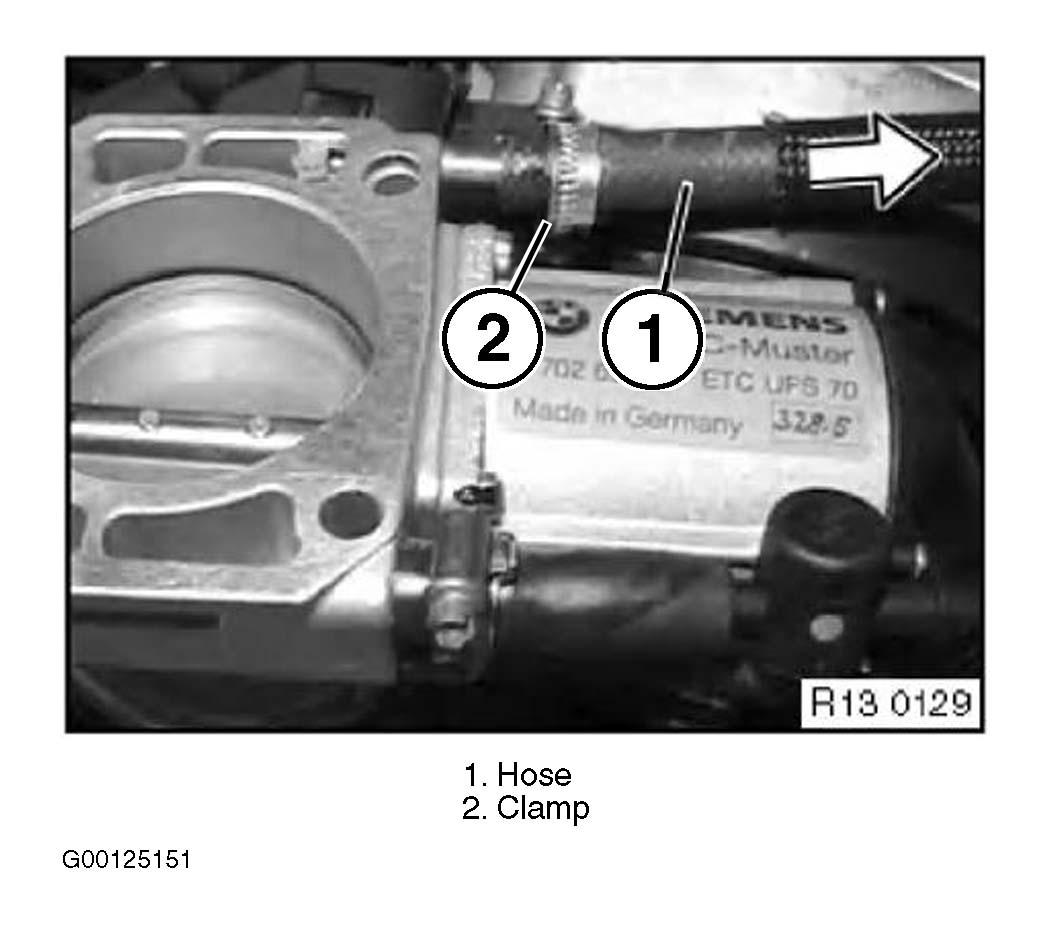

Fig 2: Removing Fuel Hose & Clamp (V12)

Courtesy of BMW OF NORTH AMERICA, INC.

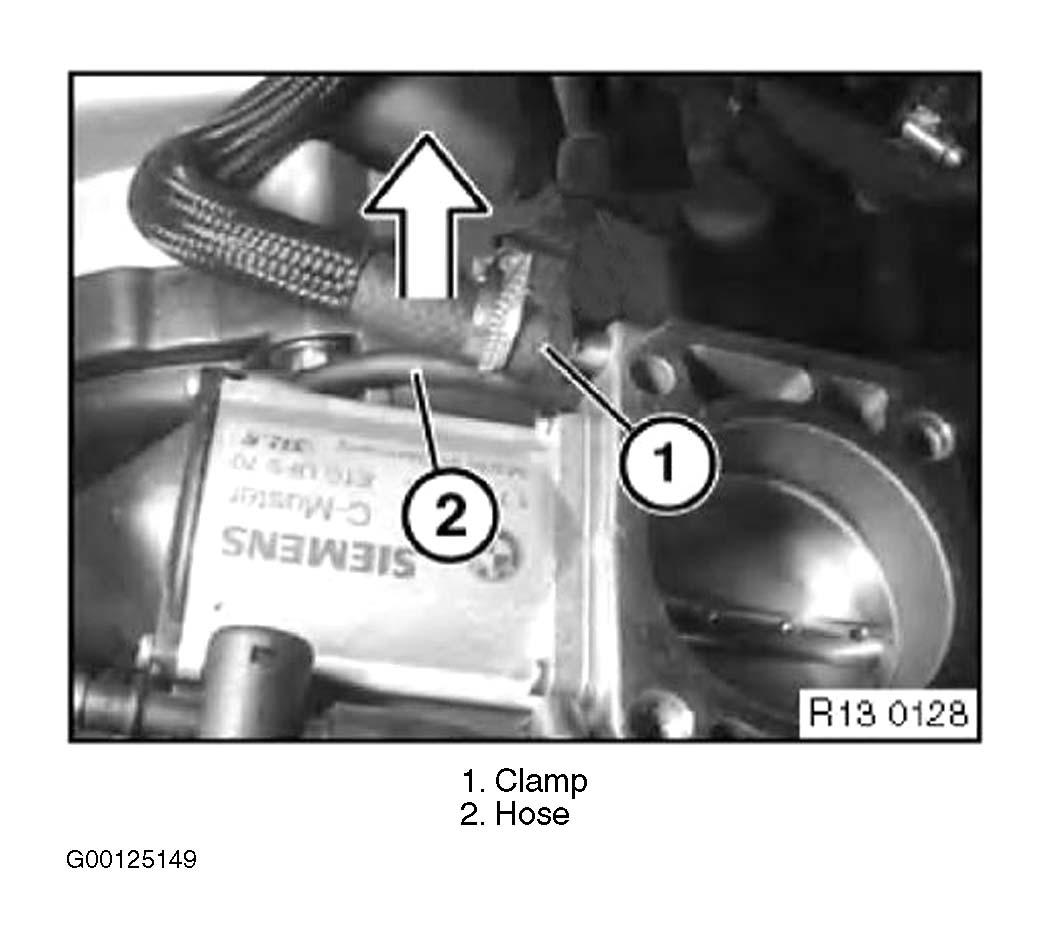

Fig 3: Removing Throttle Body Bolts (Cylinders No. 1-6) (V12)

Courtesy of BMW OF NORTH AMERICA, INC.

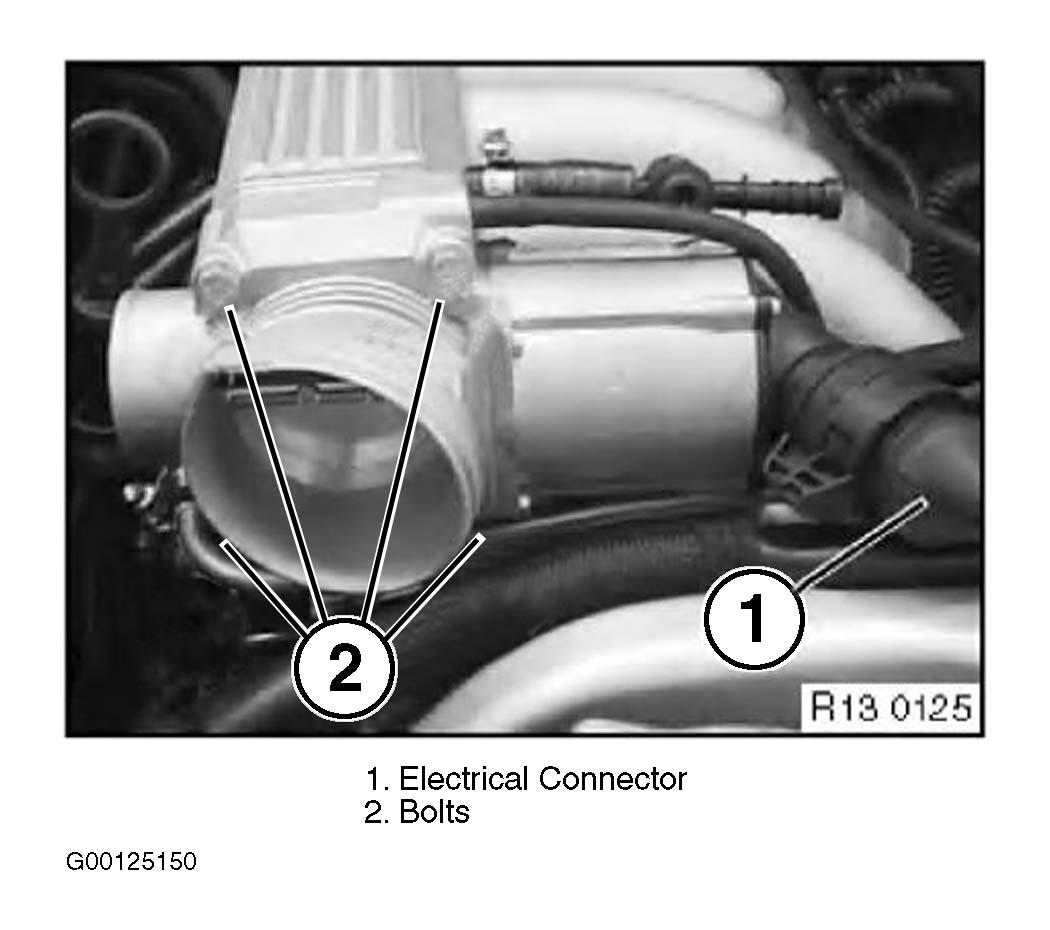

Fig 4: Removing Throttle Body Fuel Hose (V12)

Courtesy of BMW OF NORTH AMERICA, INC.
