Removal & Installation (V12)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition off. Press down retaining ring. Disconnect electrical connector. Unclip and remove temperature sensor. See Fig 1. To install, reverse removal procedure.

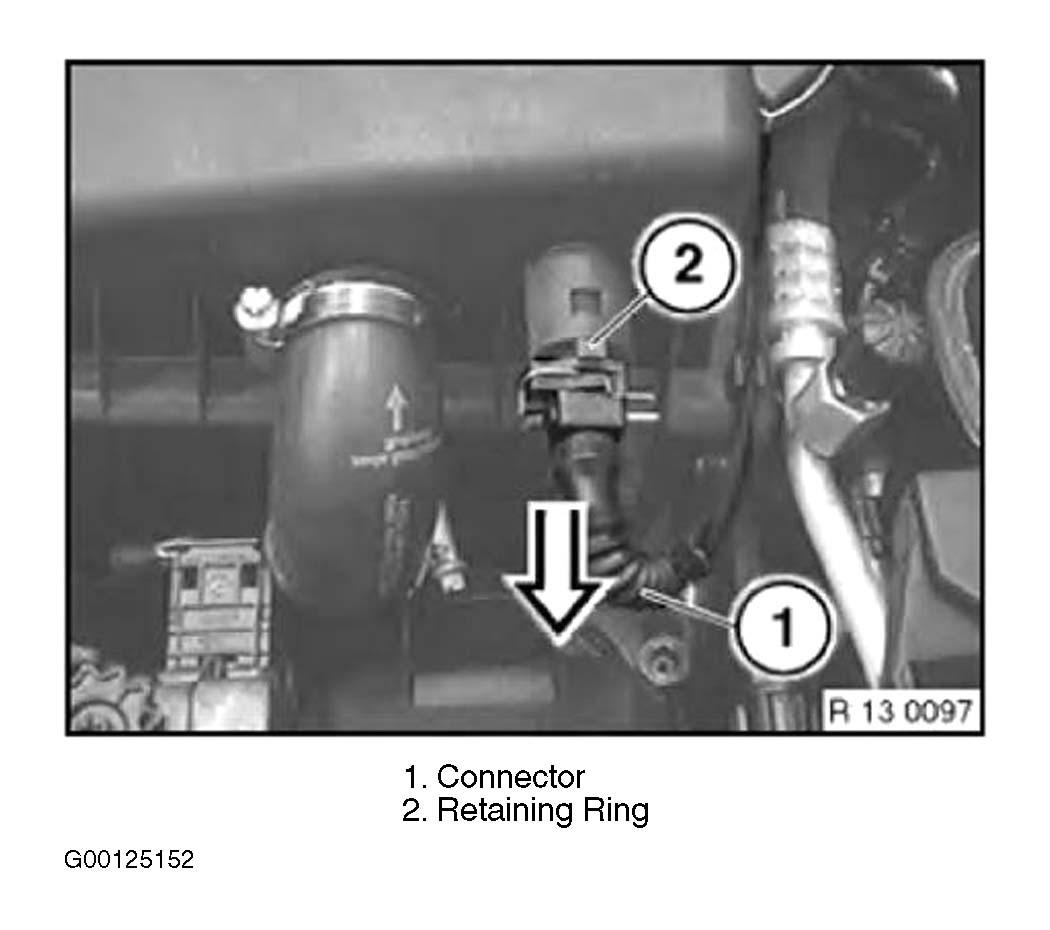

Fig 1: Removing Intake Air Temperature Sensor (V12)

Courtesy of BMW OF NORTH AMERICA, INC.
