Removal & Installation (6-Cylinder - E36)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

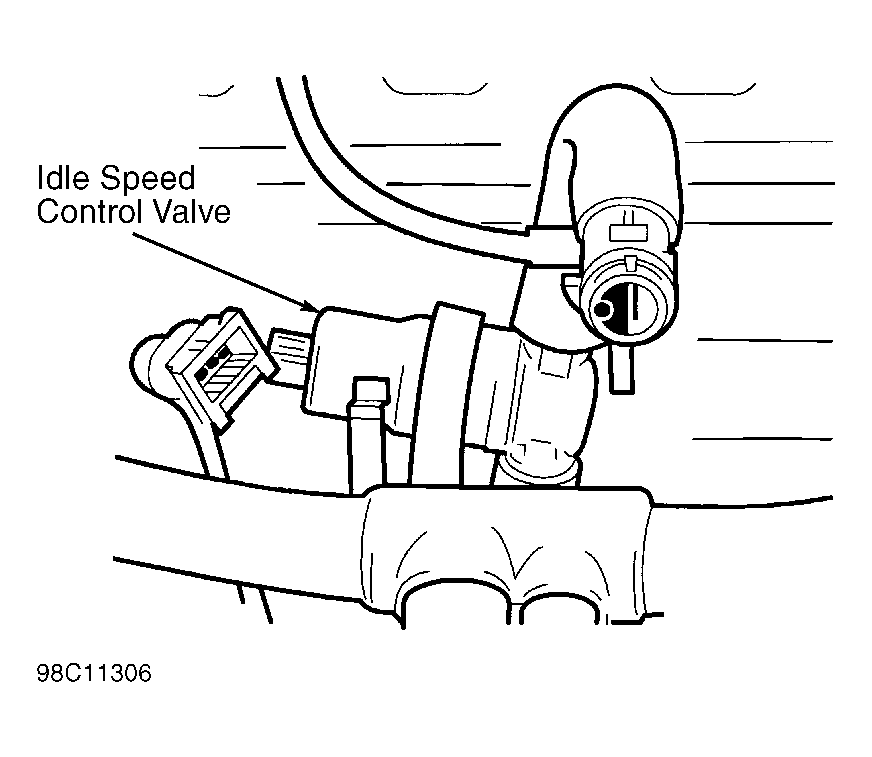

Remove air filter housing. Remove throttle valve extension. Disconnect dip stick guide tube. Disconnect idle speed control valve electrical connector. Remove 2 bolts. Remove idle speed control valve. See Fig 1. Remove gasket and rubber clip. To install, reverse removal procedure.
