Removal & Installation (3-Series - Z3)

Remove fuel from fuel tank. On right tank section, disconnect fuel pump connection for fuel pump and fuel level sensor. On left tank section, disconnect fuel level sensor connection. Disconnect fuel return hose and tank compensating hose. Disconnect fuel hoses with special tool (13 3 010) and remove supply and return lines. Remove heat baffle plate screws. Remove heat baffle plate. Remove complete propeller shaft. Unfasten cable on handbrake lever. Press cable out of clips and pull through retaining brackets. Release hose clamp and remove fuel filler hose. Remove tank mounting screws, lower and remove tank. Disconnect tank vent pipe. Unclip vent pipe to carbon canister. Disconnect tank vent pipe. Disconnect filler vent pipe. Remove fuel tank. To install, reverse removal procedure. Replace all hose clamps. Install washers between retaining strap at right outside and crossmember (rear take-up) at front. See Fig 1-Fig 12 .

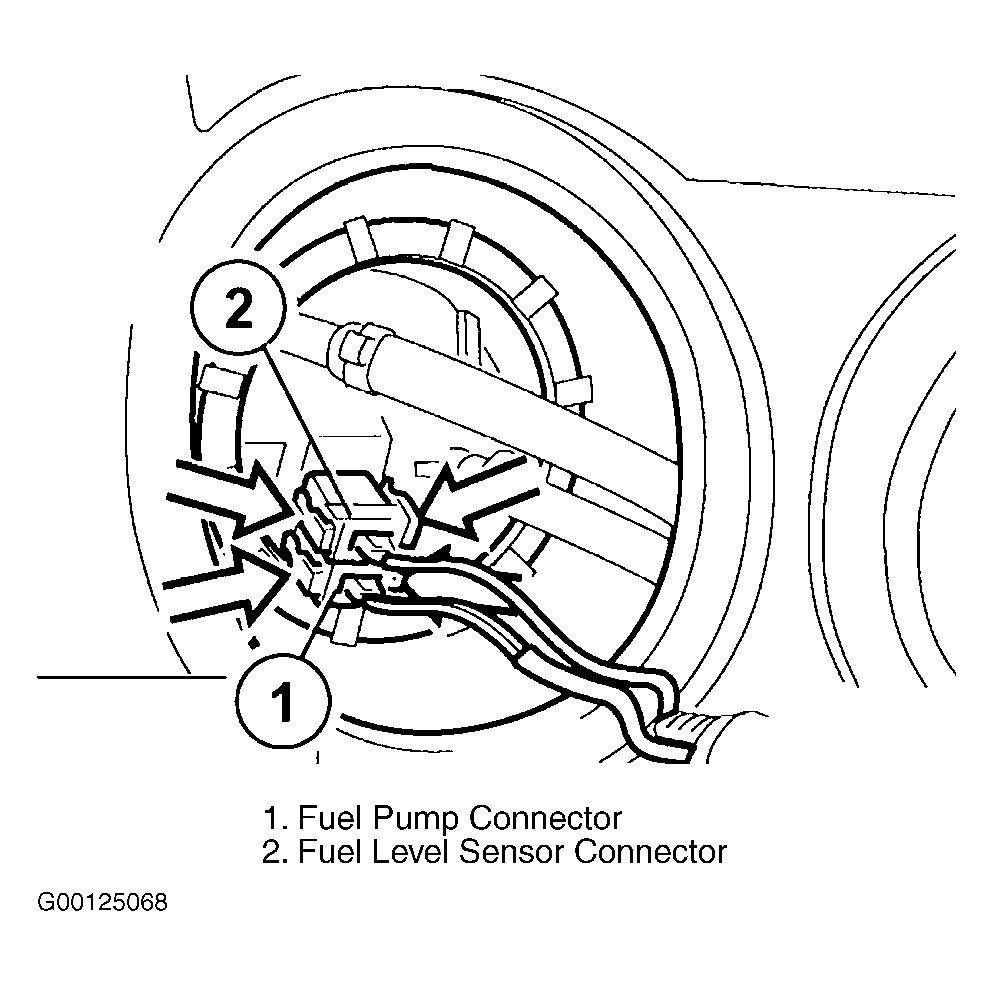

Fig 1: Disconnecting Fuel Tank Connectors (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

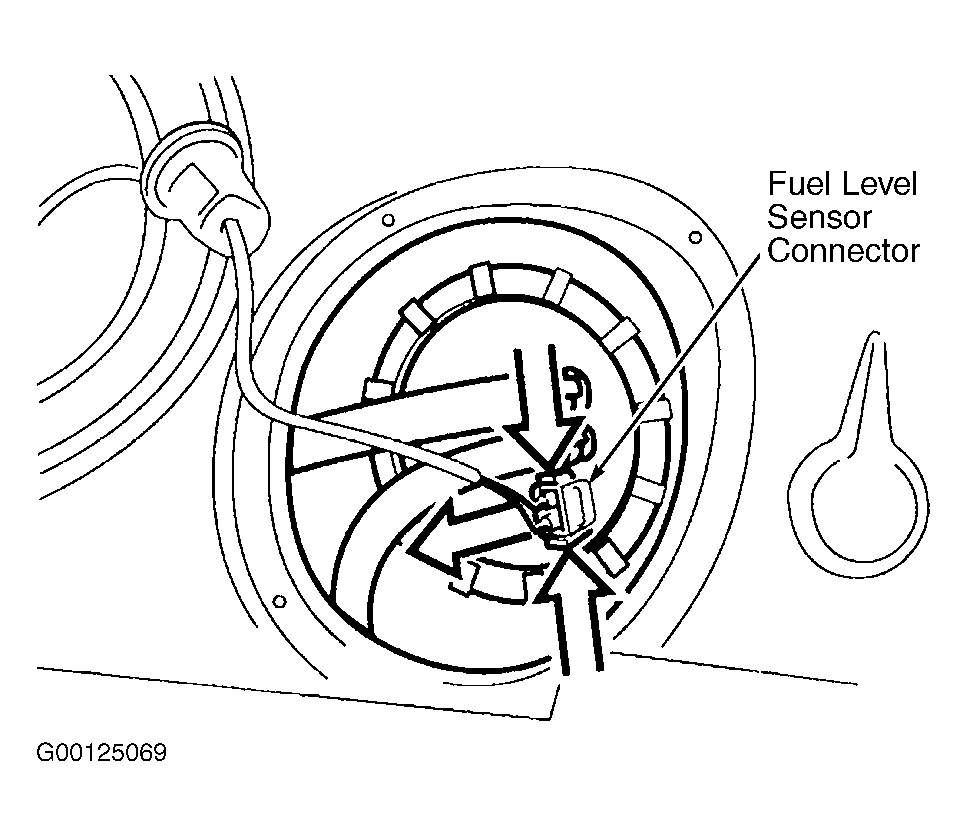

Fig 2: Disconnecting Left Tank Section Fuel Level Sensor (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

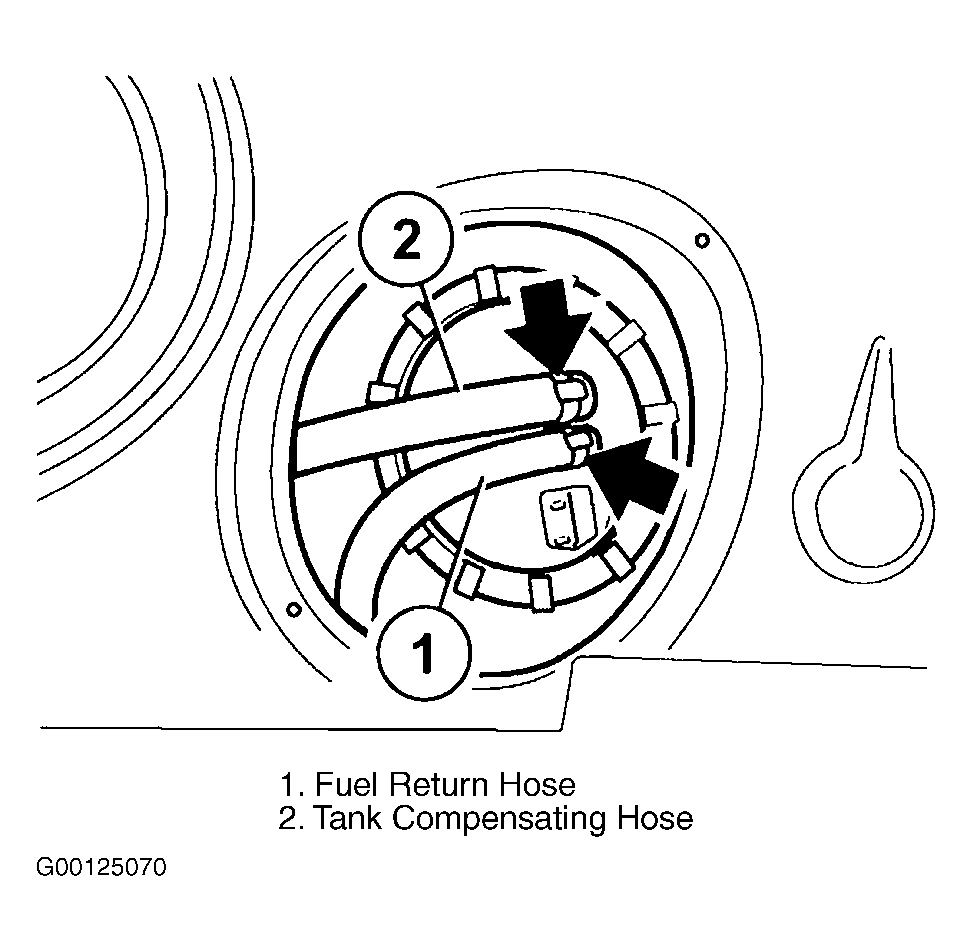

Fig 3: Disconnecting Left Tank Section Fuel Return Hose & Tank Compensating Hose (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

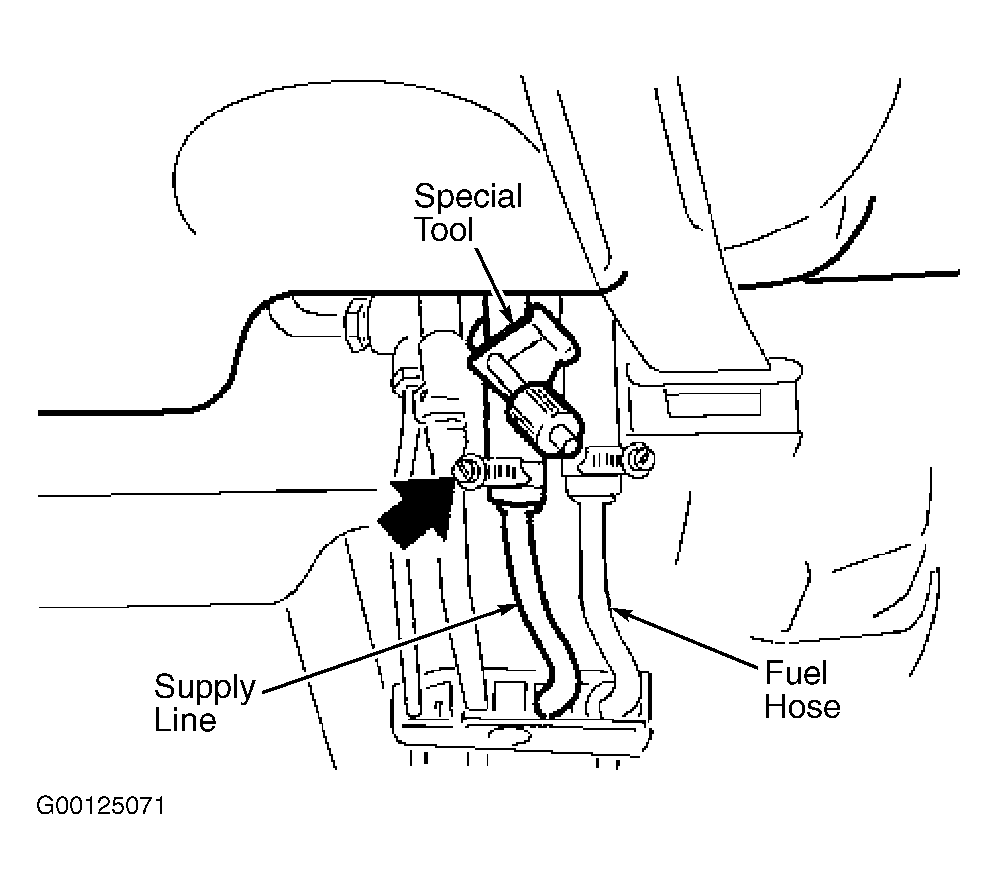

Fig 4: Removing Supply Line & Fuel Hose (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

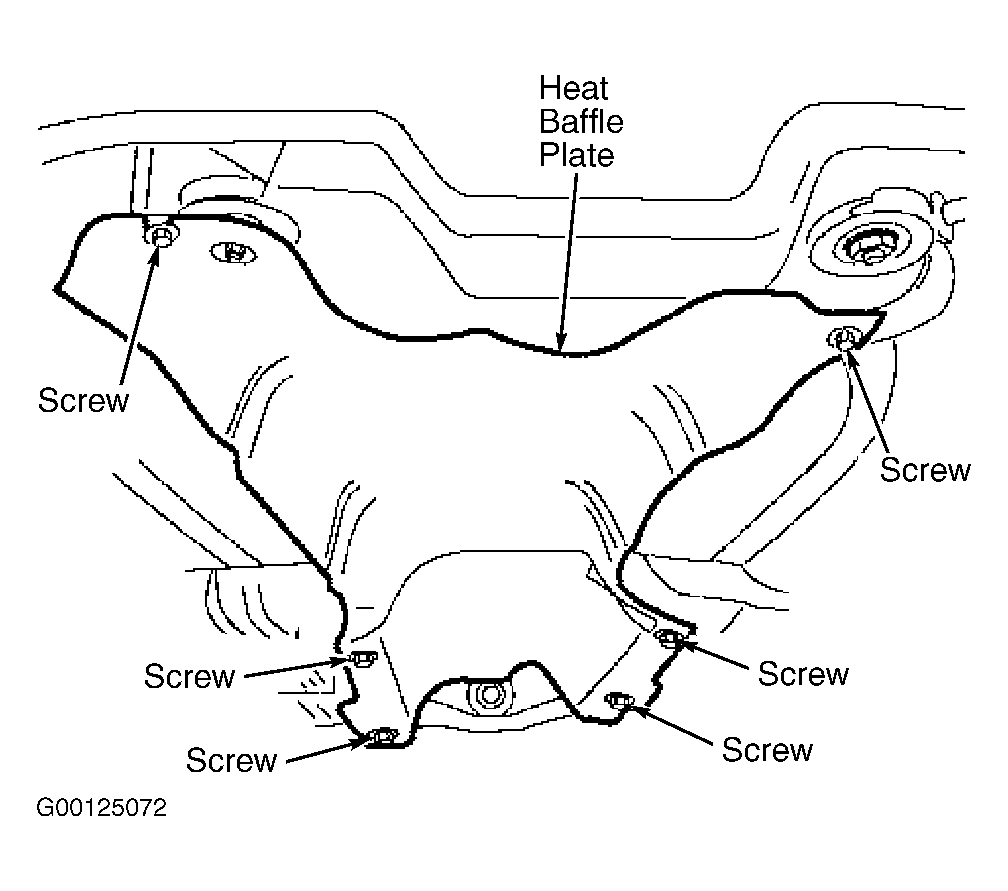

Fig 5: Removing Heat Baffle Plate (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Removing Propeller Shaft (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Unfastening Bowden Cable On Handbrake Lever (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

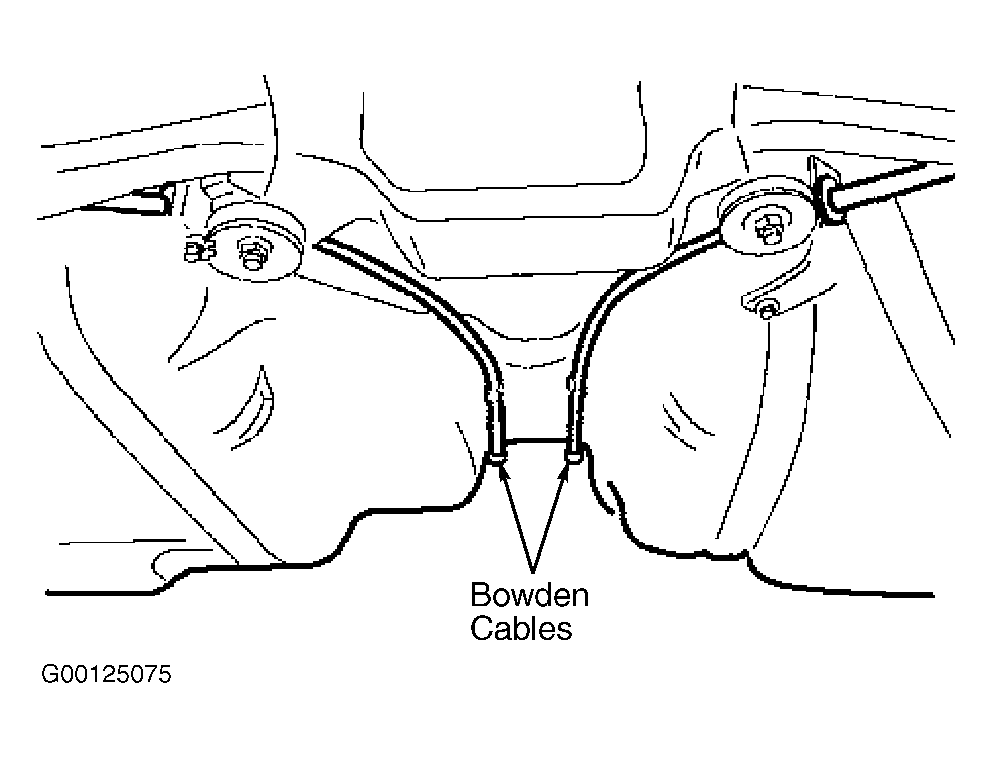

Fig 8: Pressing Bowden Cable From Clips (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

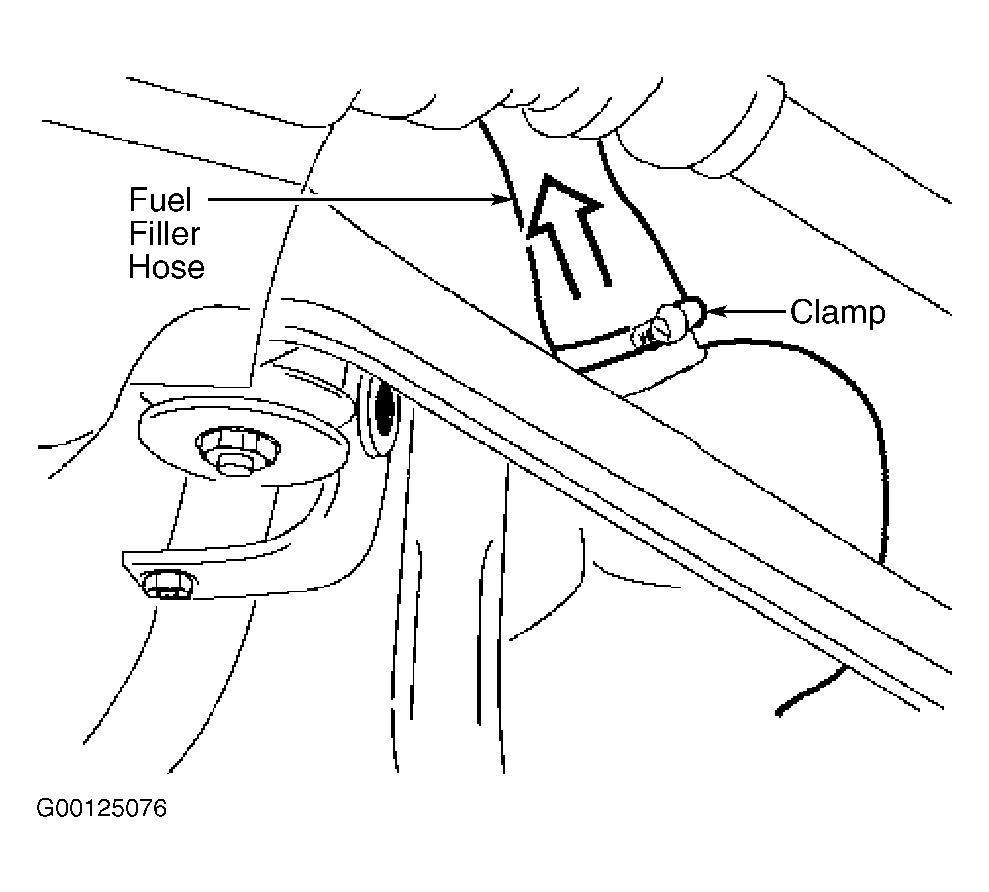

Fig 9: Removing Clamp & Fuel Filler Hose (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

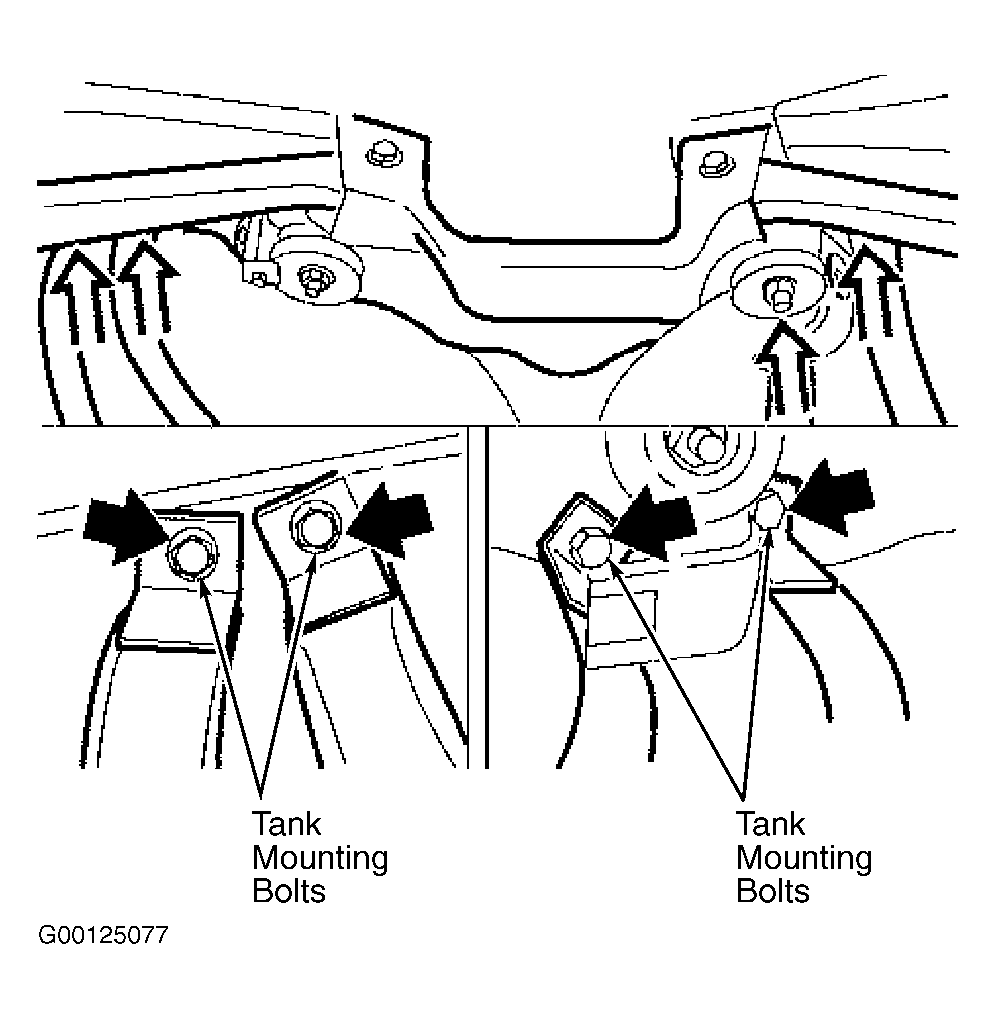

Fig 10: Removing Tank Mounting Bolts (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Disconnecting Tank Vent Pipe (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

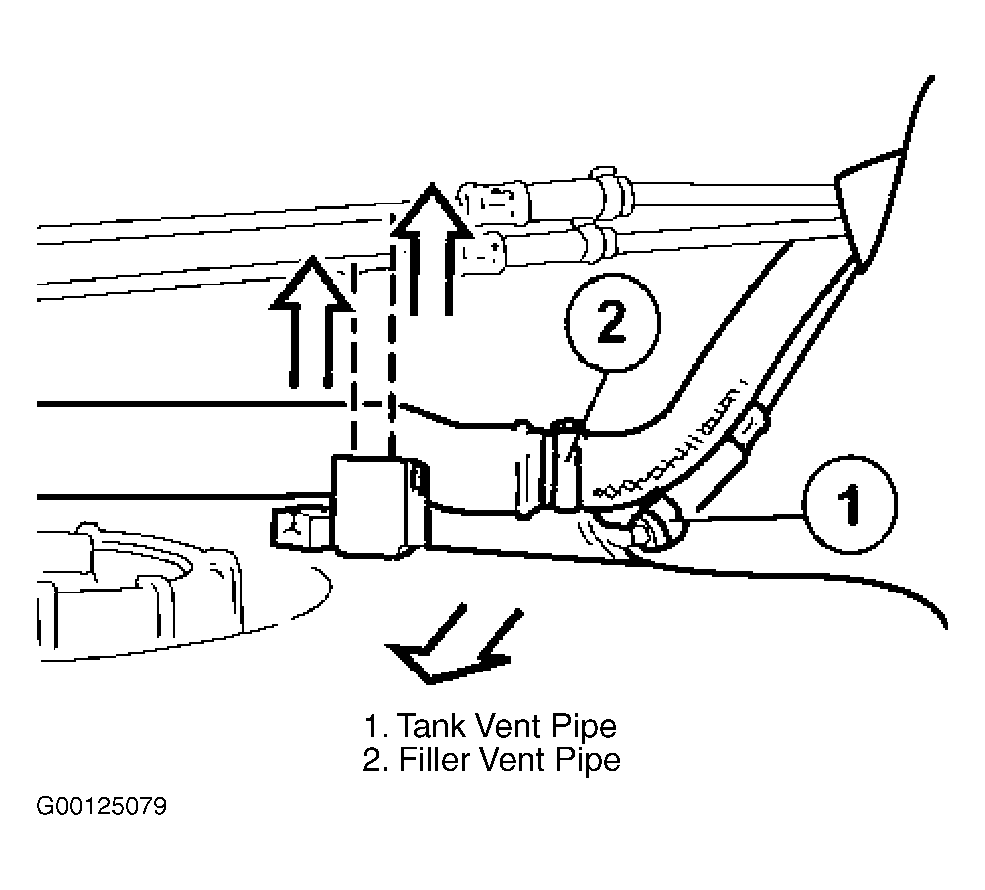

Fig 12: Disconnecting Tank Vent Pipe & Filler Vent Pipe (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.
