Removal & Installation (3-Series - E46)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel from fuel tank. Unfasten Bowden cable on handbrake lever. Remove exhaust system. Remove propeller shaft. Remove under-car tank trim on left side of vehicle. See Fig 1.
  2. Remove lip behind wheel on left side of vehicle. See Fig 2. Remove tank trim on right. See Fig 3. Remove lip on right. See Fig 4. Remove handbrake cables from guide tubes. See Fig 5.
  3. Release hose clips and detach fuel feed and return lines. See Fig 6. Release hose clip and detach fuel filler pipe/fuel tank connecting hose from fuel tank. See Fig 7. Support tank over a wide area with lifting equipment. Unfasten hex nut. See Fig 8. Release nut and remove retaining strap on both sides. See Fig 9.
  4. Lower fuel tank and disconnect electrical connections. Release hose clip and detach vent line. See Fig 10. Remove fuel tank toward bottom. To install, reverse removal procedure. Note position of guide on lip during installation. Replace hose clips.
Fig 1: Removing Fuel Tank Trim (Left) (3-Series - E46)
G00131533Courtesy of BMW OF NORTH AMERICA, INC.

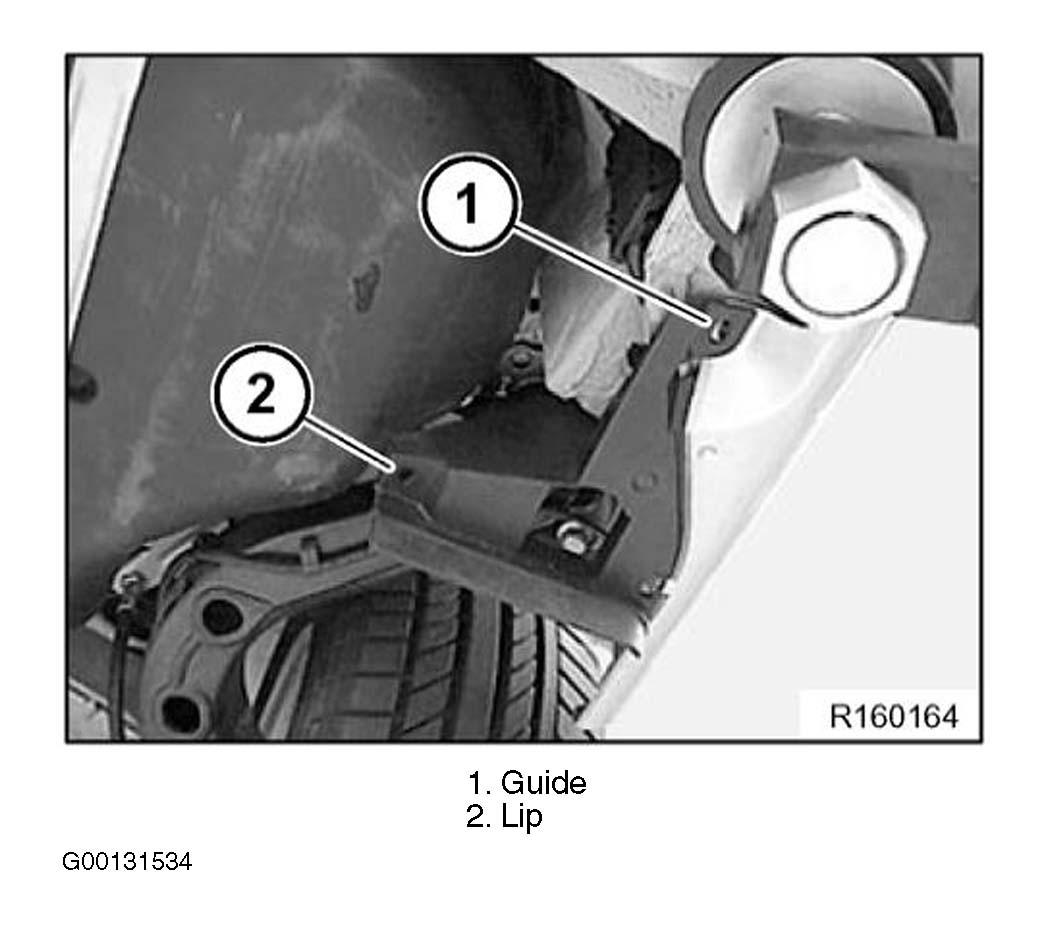

Fig 2: Removing Lip On Left Side Of Vehicle (3-Series - E46)
G00131534Courtesy of BMW OF NORTH AMERICA, INC.

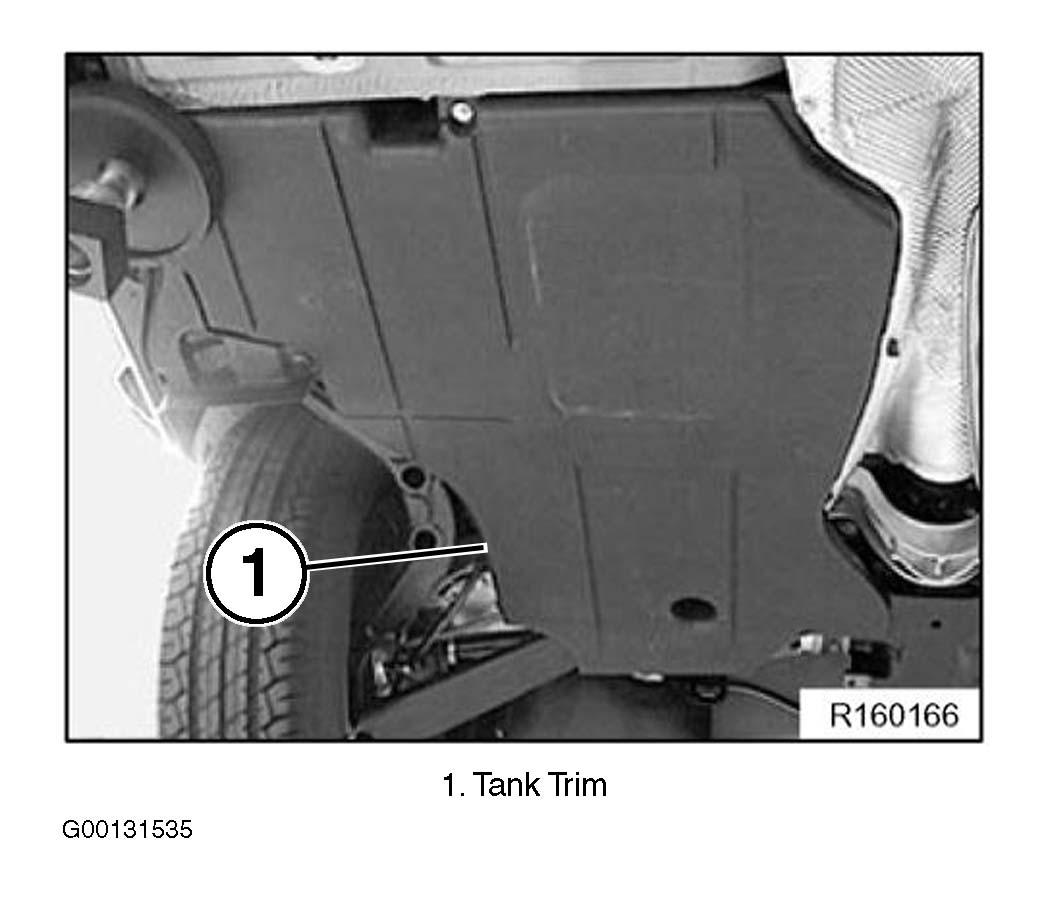

Fig 3: Removing Fuel Tank Trim (Right) (3-Series - E46)
G00131535Courtesy of BMW OF NORTH AMERICA, INC.

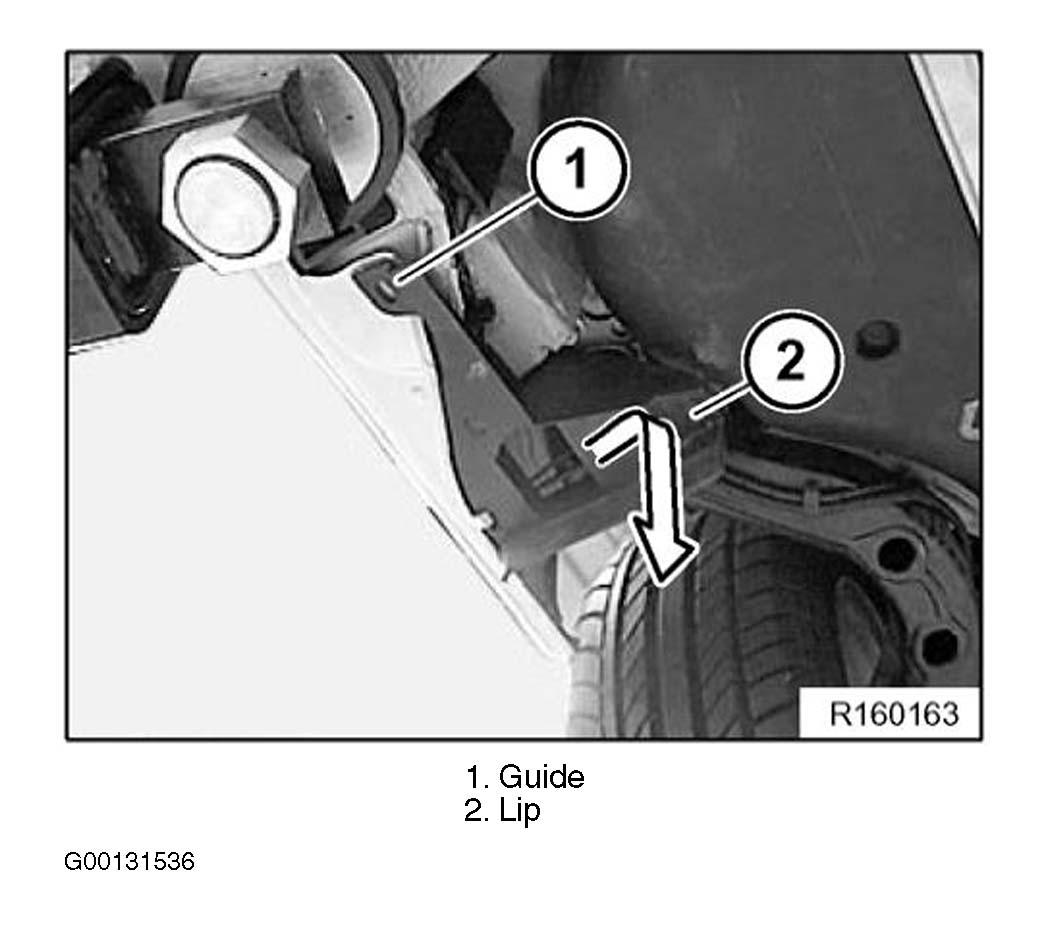

Fig 4: Removing Lip On Right Side Of Vehicle (3-Series - E46)
G00131536Courtesy of BMW OF NORTH AMERICA, INC.

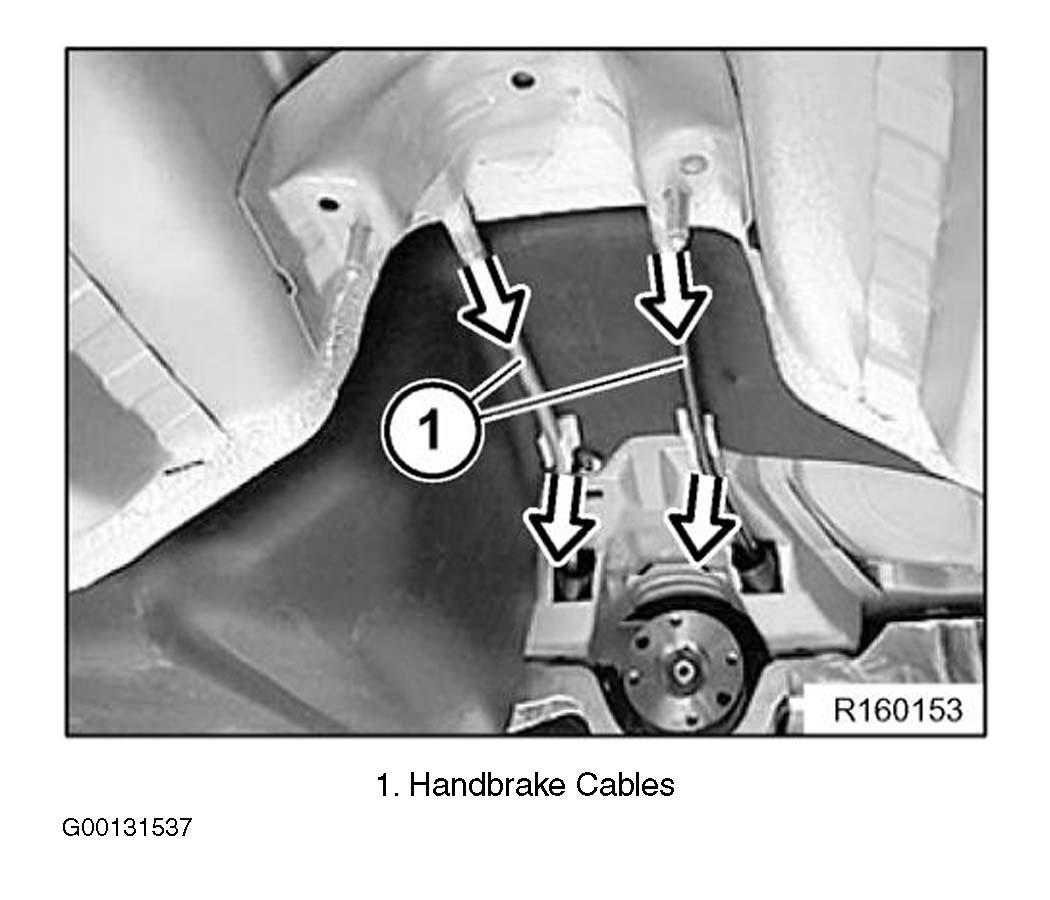

Fig 5: Removing Handbrake Cables (3-Series - E46)
G00131537Courtesy of BMW OF NORTH AMERICA, INC.

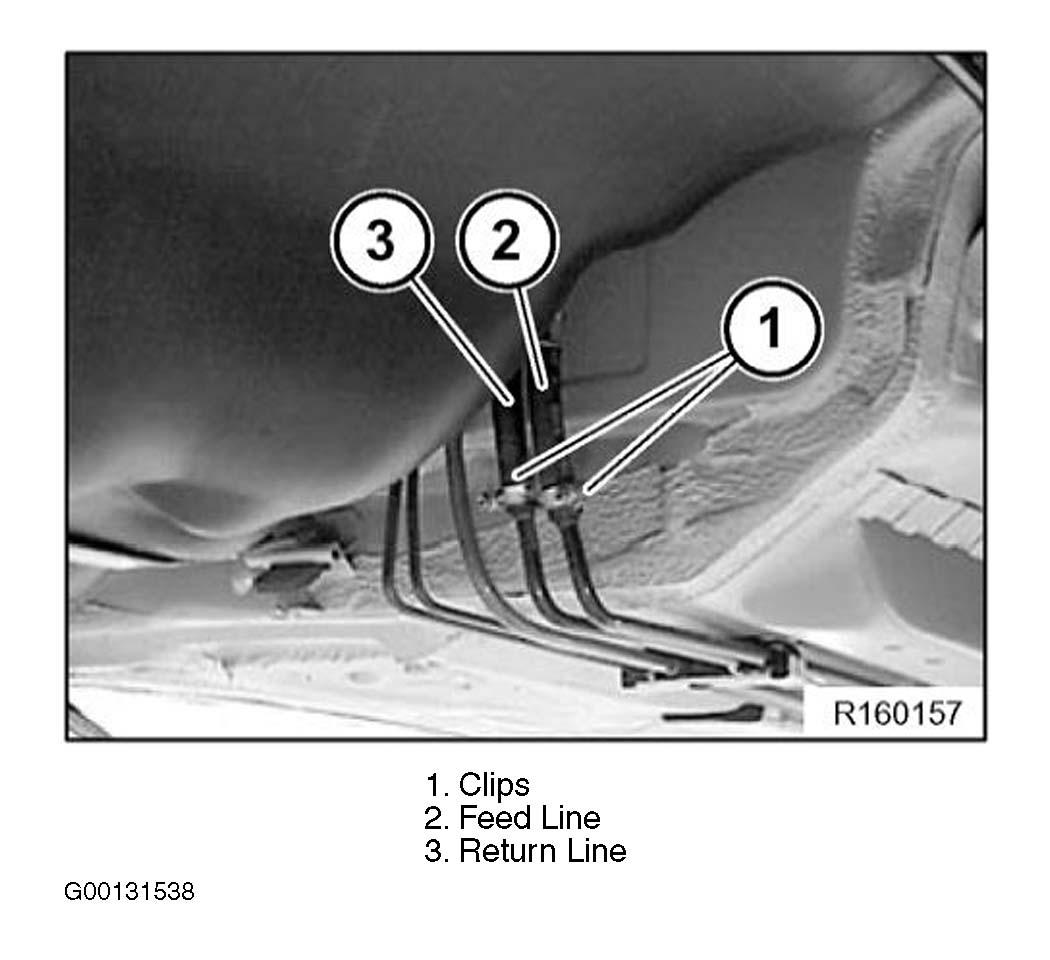

Fig 6: Releasing Hose Clips & Detaching Fuel Lines (3-Series - E46)
G00131538Courtesy of BMW OF NORTH AMERICA, INC.

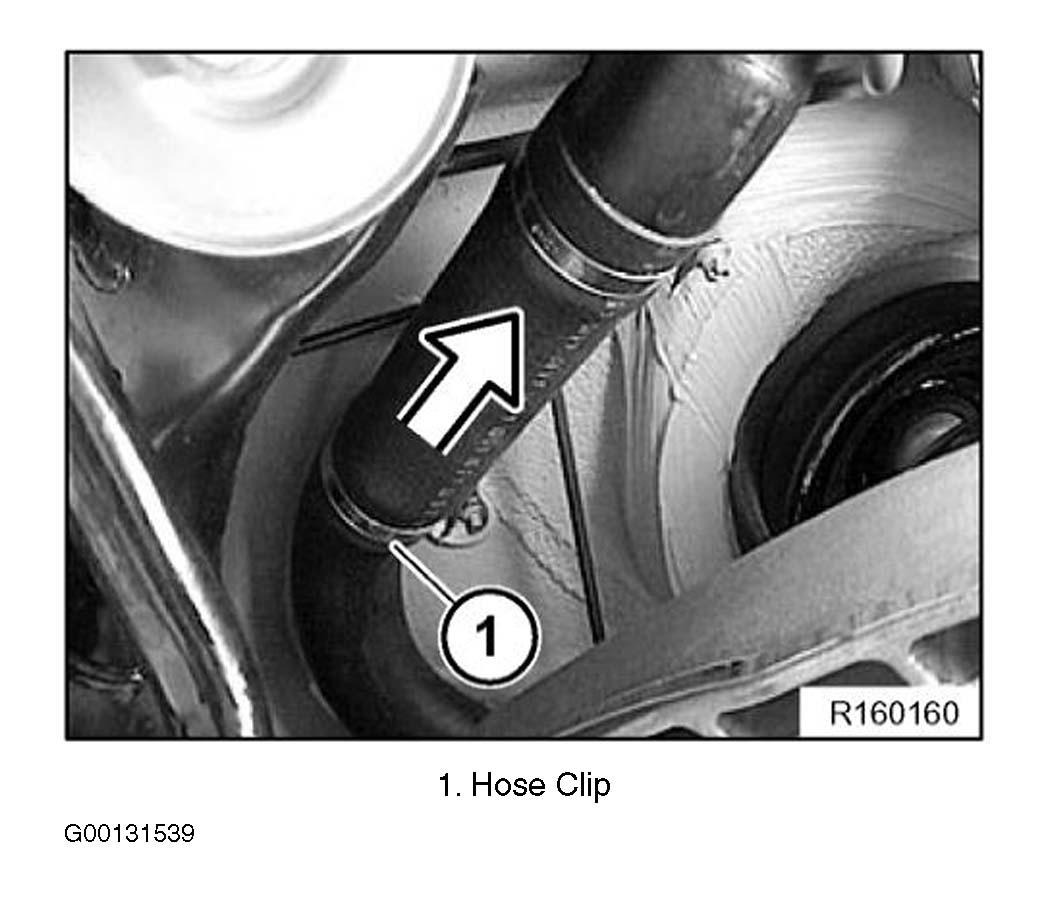

Fig 7: Removing Fuel Filler Pipe/Fuel Tank Connecting Hose (3-Series - E46)
G00131539Courtesy of BMW OF NORTH AMERICA, INC.
Fig 8: Unfastening Hex Nut (3-Series - E46)
G00131540Courtesy of BMW OF NORTH AMERICA, INC.
Fig 9: Removing Retaining Strap (3-Series - E46)
G00131541Courtesy of BMW OF NORTH AMERICA, INC.

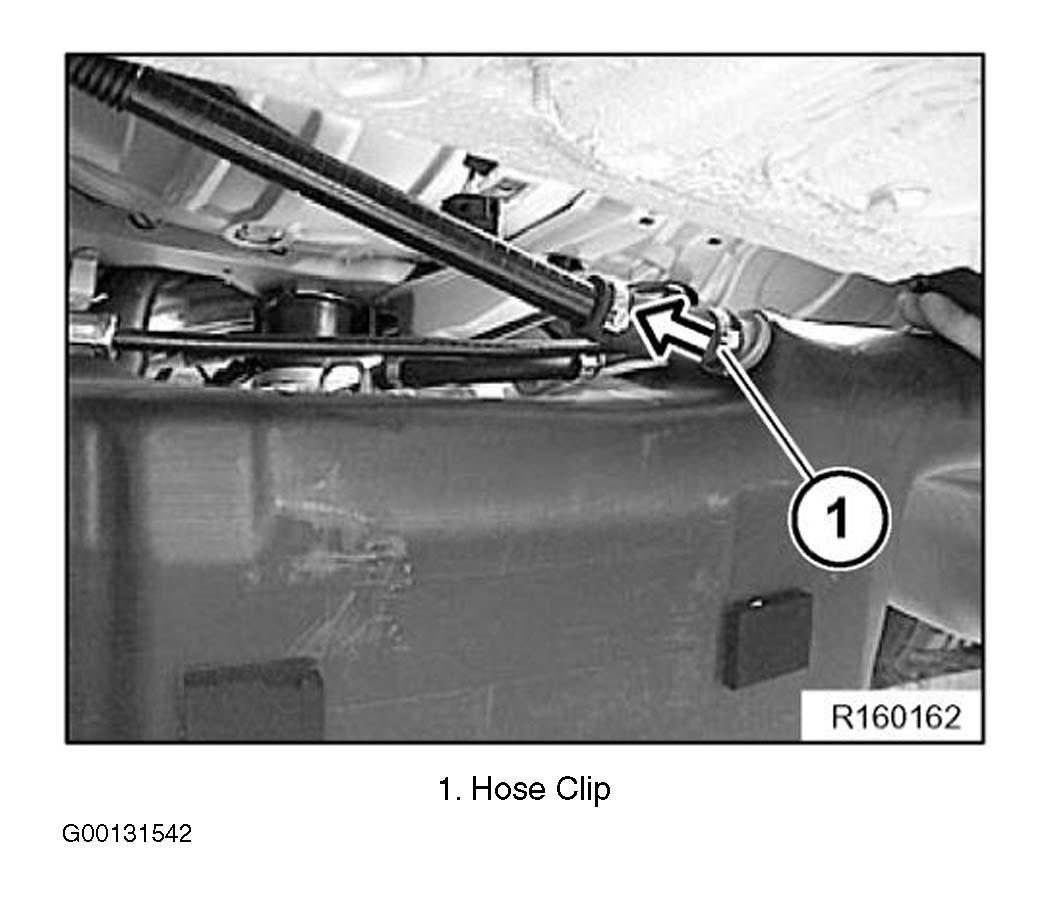

Fig 10: Detaching Vent Line (3-Series - E46)
G00131542Courtesy of BMW OF NORTH AMERICA, INC.
