Removal & Installation (V8)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

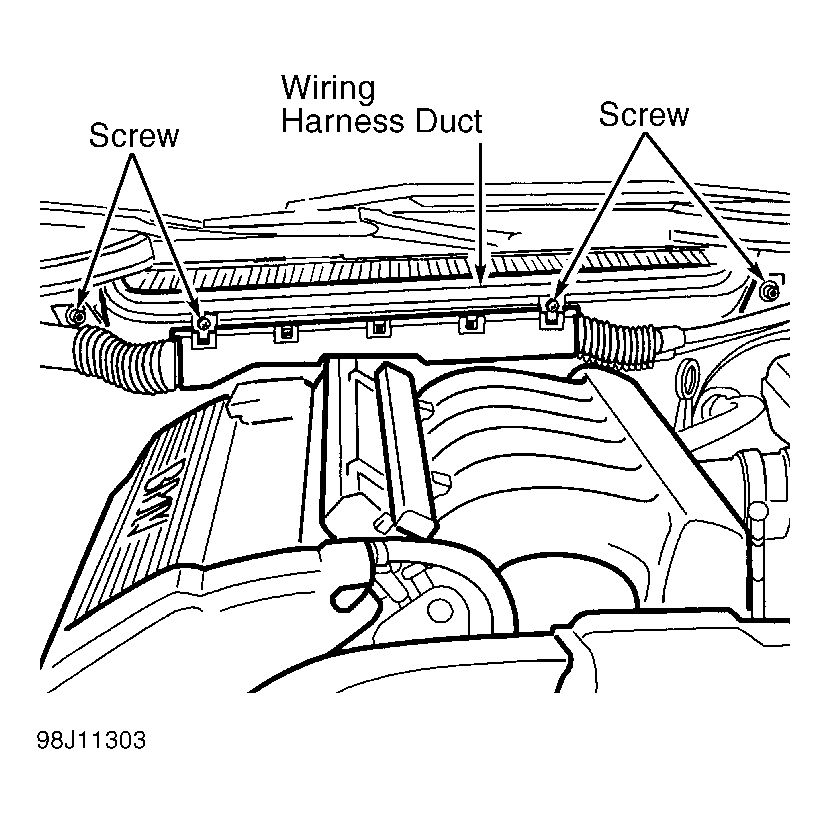

- Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove engine cover. See Figure. Disconnect throttle cable at throttle body. Disconnect ignition coils and fuel injectors.
- Disconnect fuel lines from fuel rail. Remove fuel rail mounting screws and pull off fuel rail with injectors. Remove retainer from top of fuel injector. Remove fuel injector(s). To install, reverse removal procedure. Coat injector "O" rings with petroleum jelly.
