Removal (6-Cylinder)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel pump is integral with right fuel level sensor. Siphon out as much fuel as possible from fuel tank. Remove passenger seat cushion (Z3) or rear seat cushion (all others). Remove or cut insulation mat along perforated line and fold open.

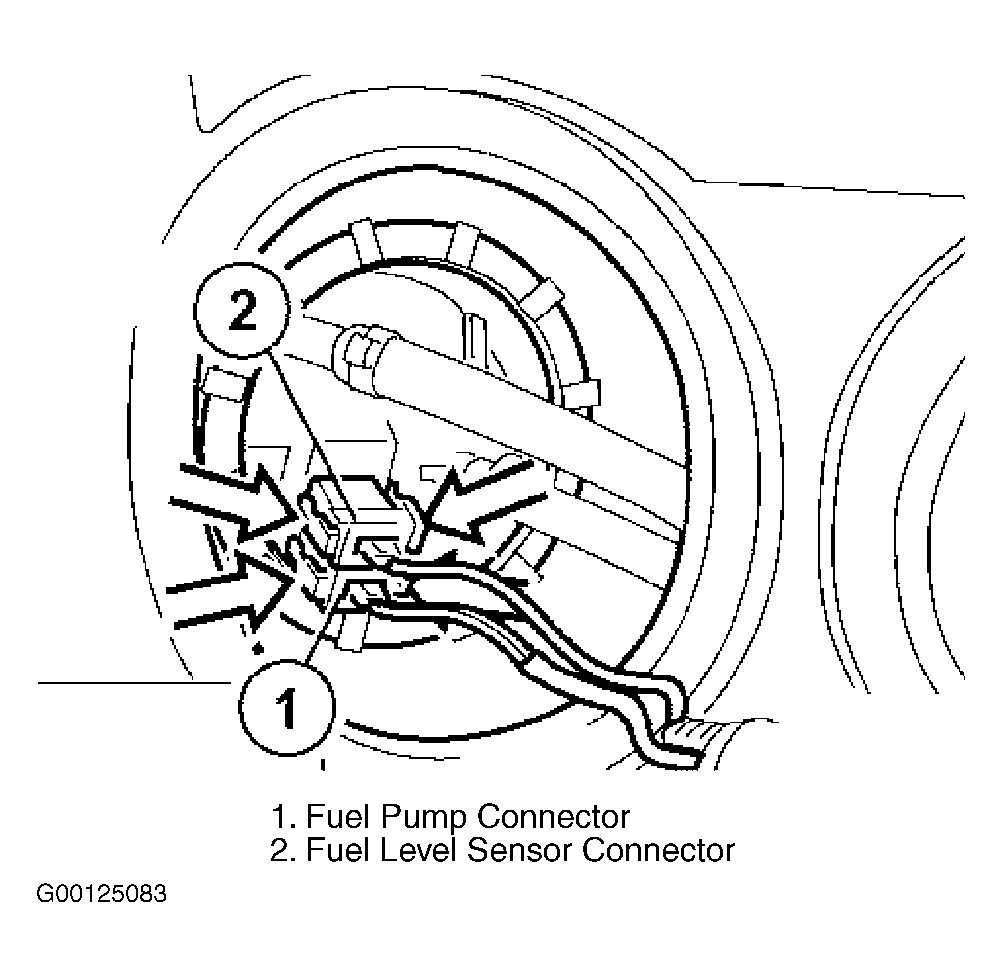

- Remove fuel pump access cover (if equipped). Press Green unlocking ring and detach fuel delivery hose (M3), or mark fuel hoses for installation reference and disconnect hoses (all others). Disconnect electrical connectors. See Figure. Loosen screw cap with Special Tool (161020). Remove screw cap and sealing ring. See Figure. Remove fuel pump assembly.
