Removal & Installation (V12)
WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

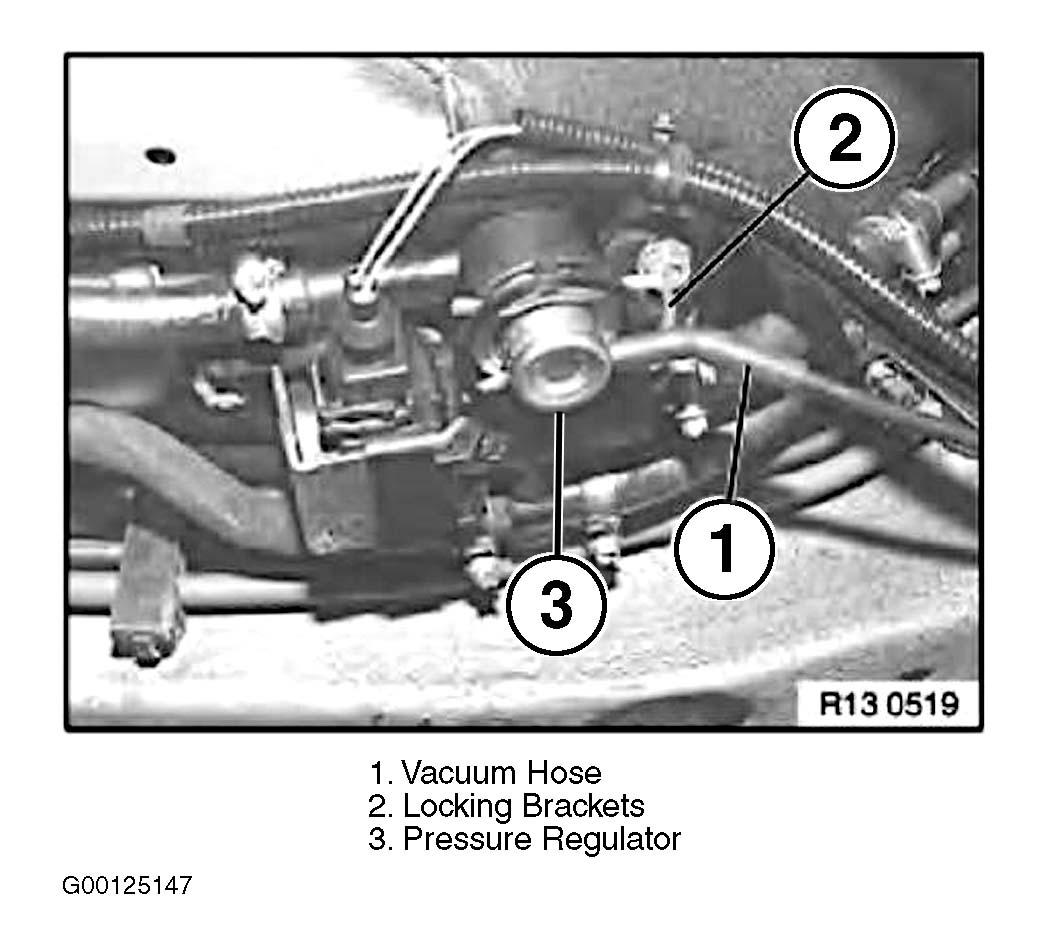

Release screws and clips on cover on underbody on passenger side. See Fig 1. Remove cover. Catch and dispose of escaping fuel. Pull off vacuum hose. Pull out locking bracket. Remove fuel pressure regulator. See Fig 2. To install, reverse removal procedure.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
