Removal & Installation (3-Series - Z3)

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten screws and nuts. Remove right rear wheel trim. Unfasten hose clips and remove hose. Remove 2 nuts. Press back of expansion tank upward and remove. Release hose clamps and remove hoses. To install, reverse removal procedure. See Fig 1-Fig 3

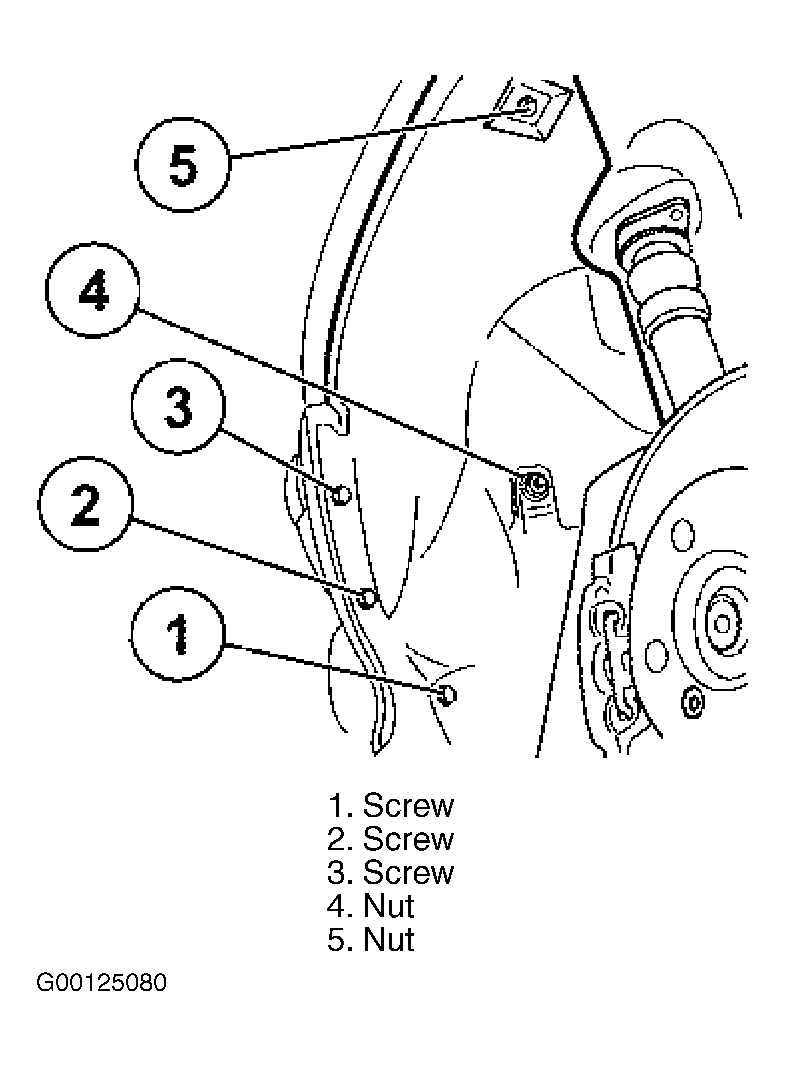

Fig 1: Removing Right Rear Wheel Trim Screws & Nuts (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

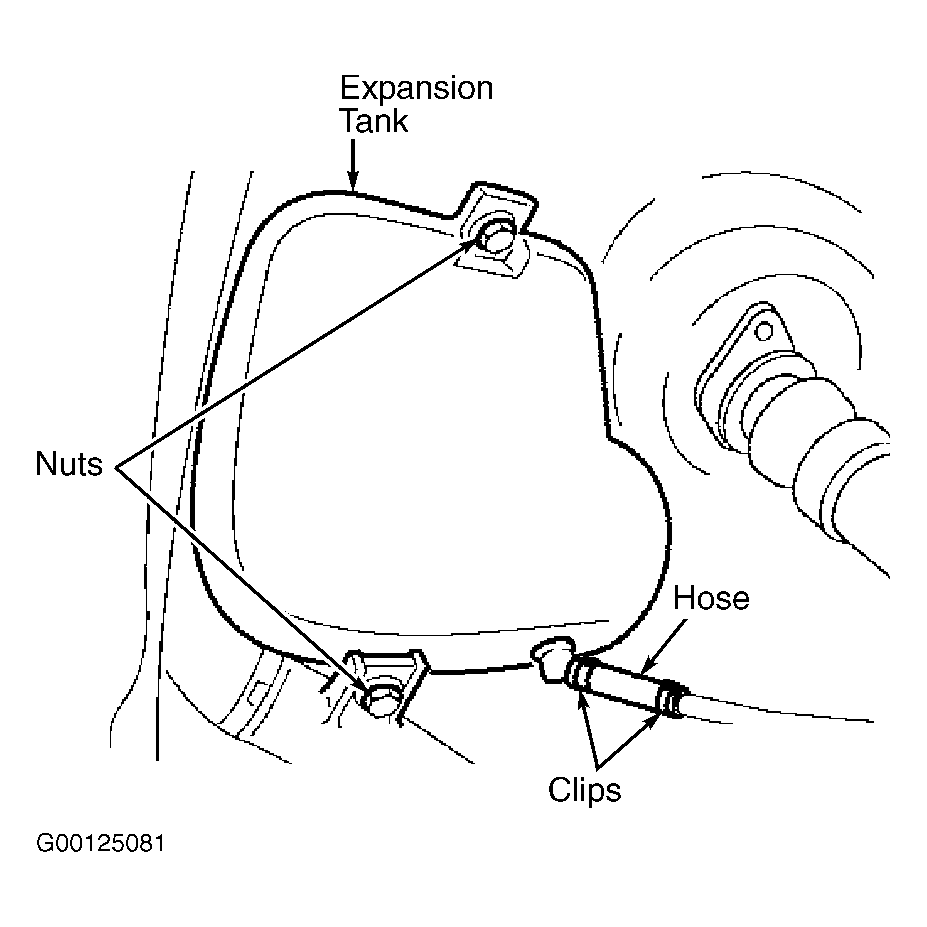

Fig 2: Removing Expansion Tank Nuts & Hose (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.

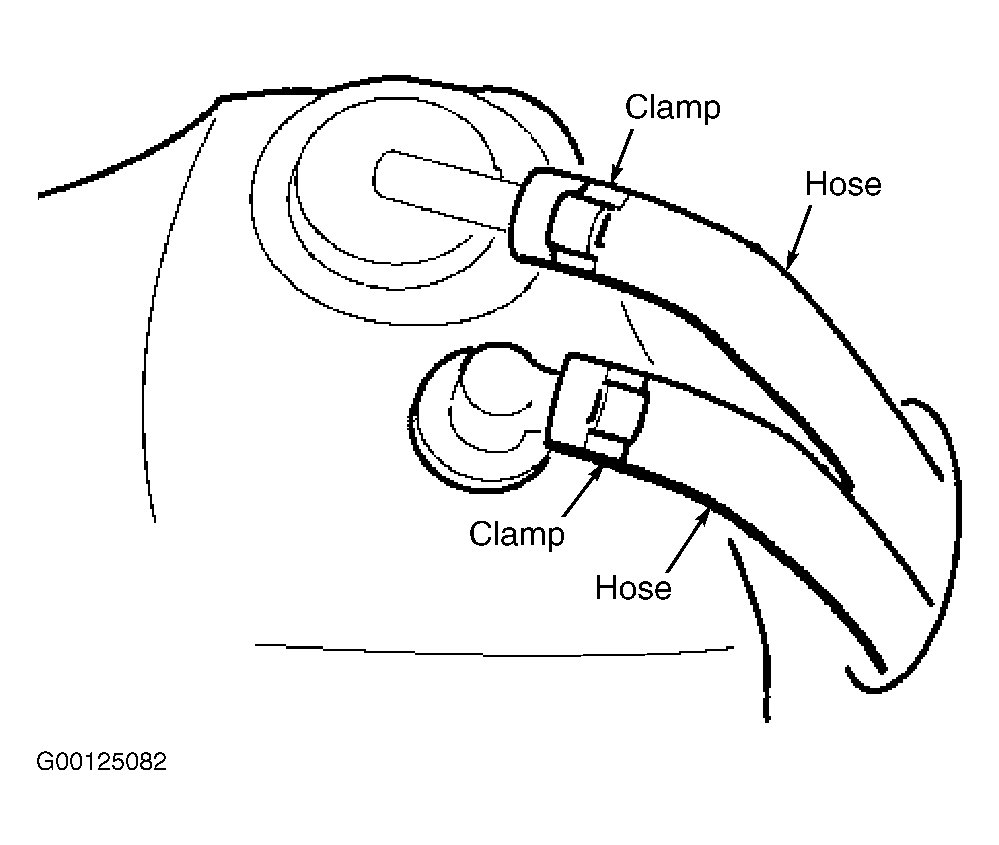

Fig 3: Removing Hose Clamps & Hoses (Z3)

Courtesy of BMW OF NORTH AMERICA, INC.
