Removal & Installation

WARNING: This page does not describe the selected car, but rather 82 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove bolts and cover under vehicle. Clamp fuel lines with Clamp (13 3 010).

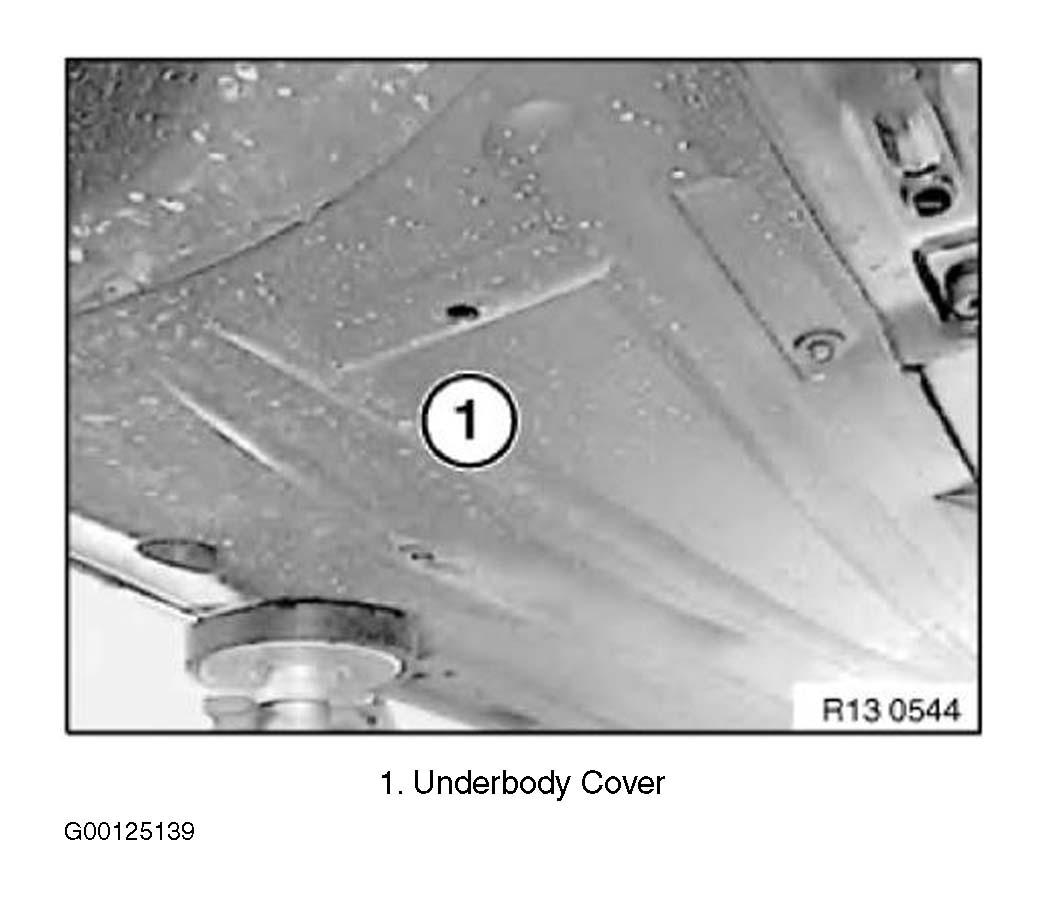

  2. Interrogate fault memory of DME control unit. Turn ignition off. On 3-Series, remove underbody cover. See Fig 1. On 5-Series, remove front underbody cover on left side. See Fig 2. On 7-Series, remove front underbody cover on right side. Release screws and clips. Remove cover. See Figure.
  3. On all models, seal off all fuel hoses using Clamp (13 3 010). See Fig 3. Disconnect vacuum hose from pressure regulator. Remove hose clips No. 2-5 and remove fuel hoses. Catch escaping fuel. Disconnect electrical connector. Remove nuts and 3/2 way valve. See Fig 4. To install, reverse removal procedure. On 3-Series, ensure seal is correctly located. See Fig 5. Replace fuel lines and hose clips.

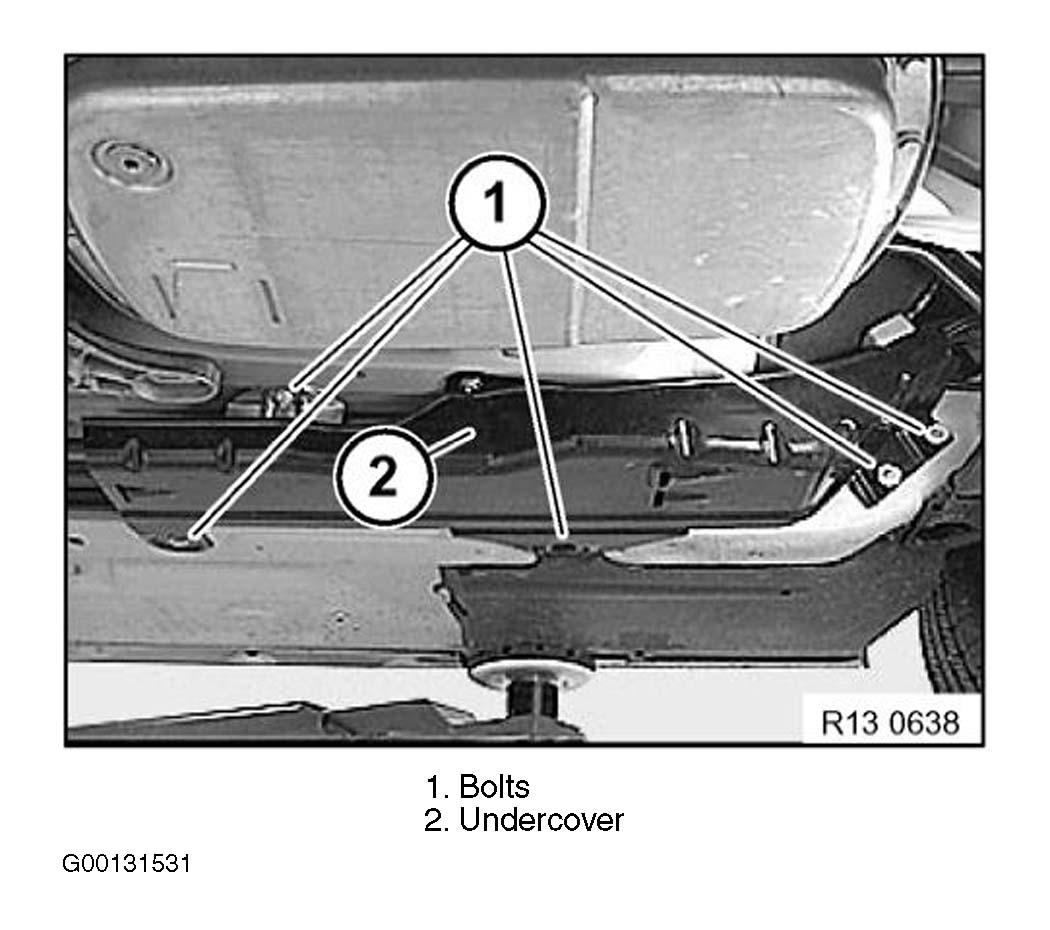

Fig 1: Removing Underbody Cover (3-Series) (6-Cylinder)
G00131531Courtesy of BMW OF NORTH AMERICA, INC.

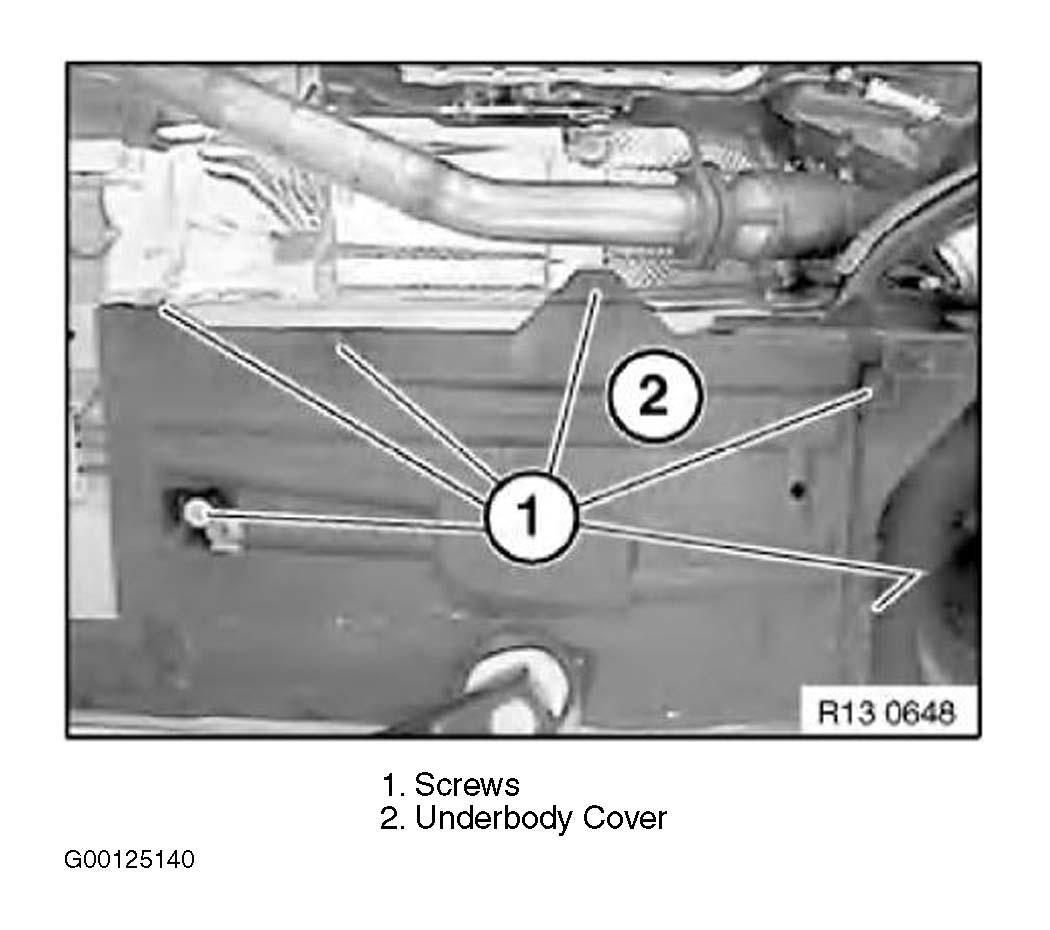

Fig 2: Removing Underbody Cover (5-Series) (6-Cylinder)
G00125140Courtesy of BMW OF NORTH AMERICA, INC.

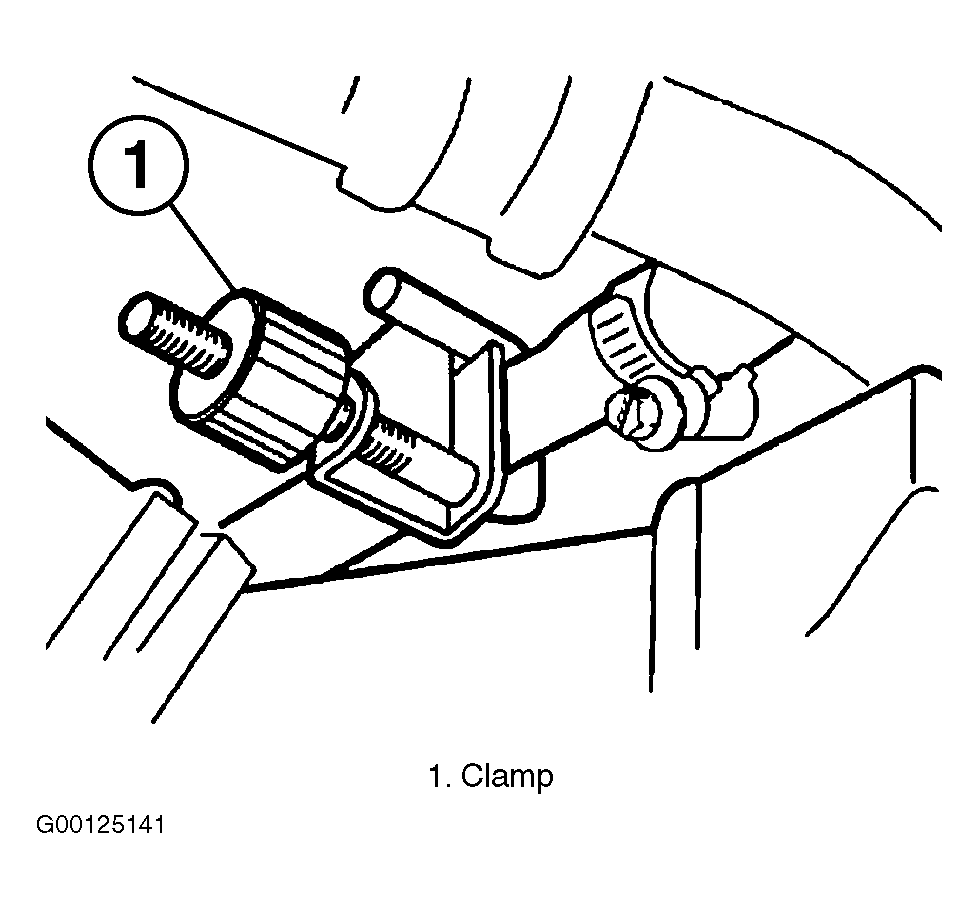

Fig 3: Sealing Fuel Hoses With Clamp (13 3 010) (6-Cylinder)
G00125141Courtesy of BMW OF NORTH AMERICA, INC.

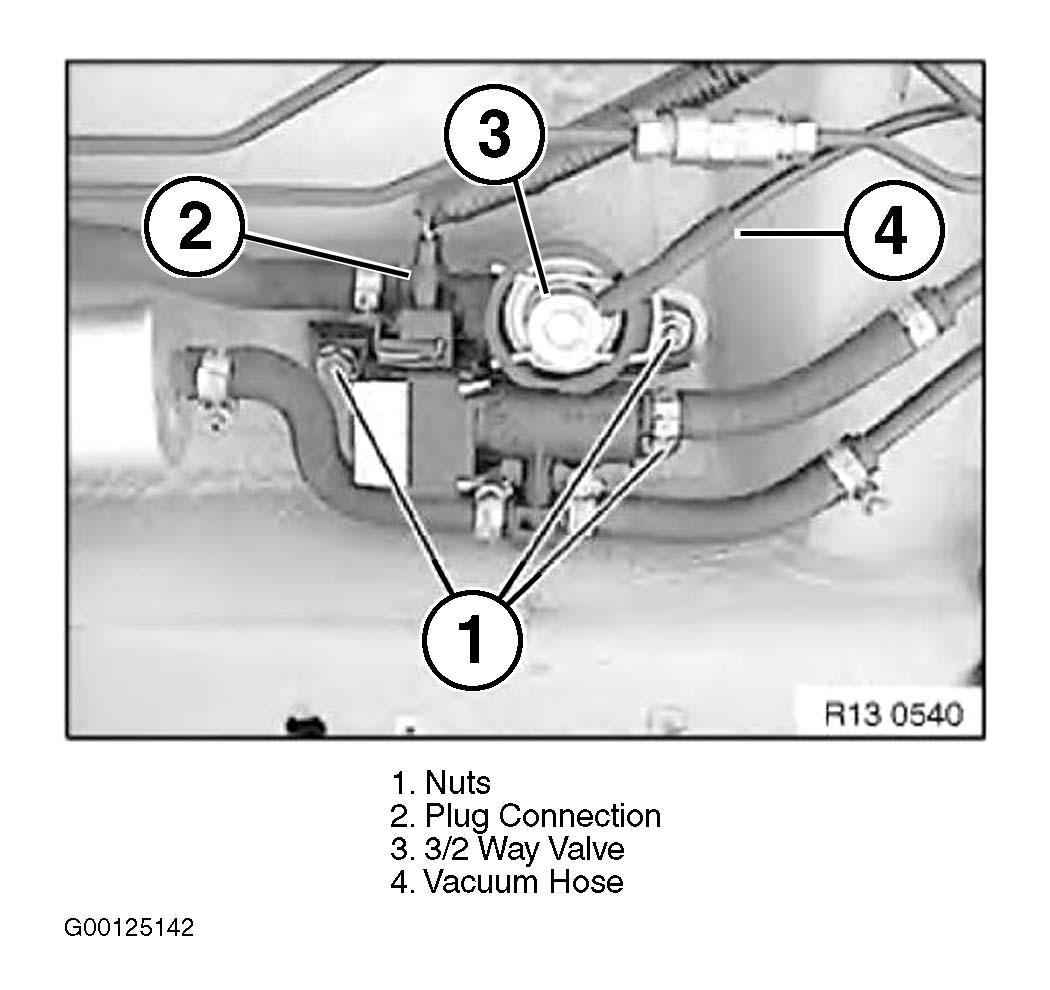

Fig 4: Removing 3/2 Way Valve (6-Cylinder)
G00125142Courtesy of BMW OF NORTH AMERICA, INC.

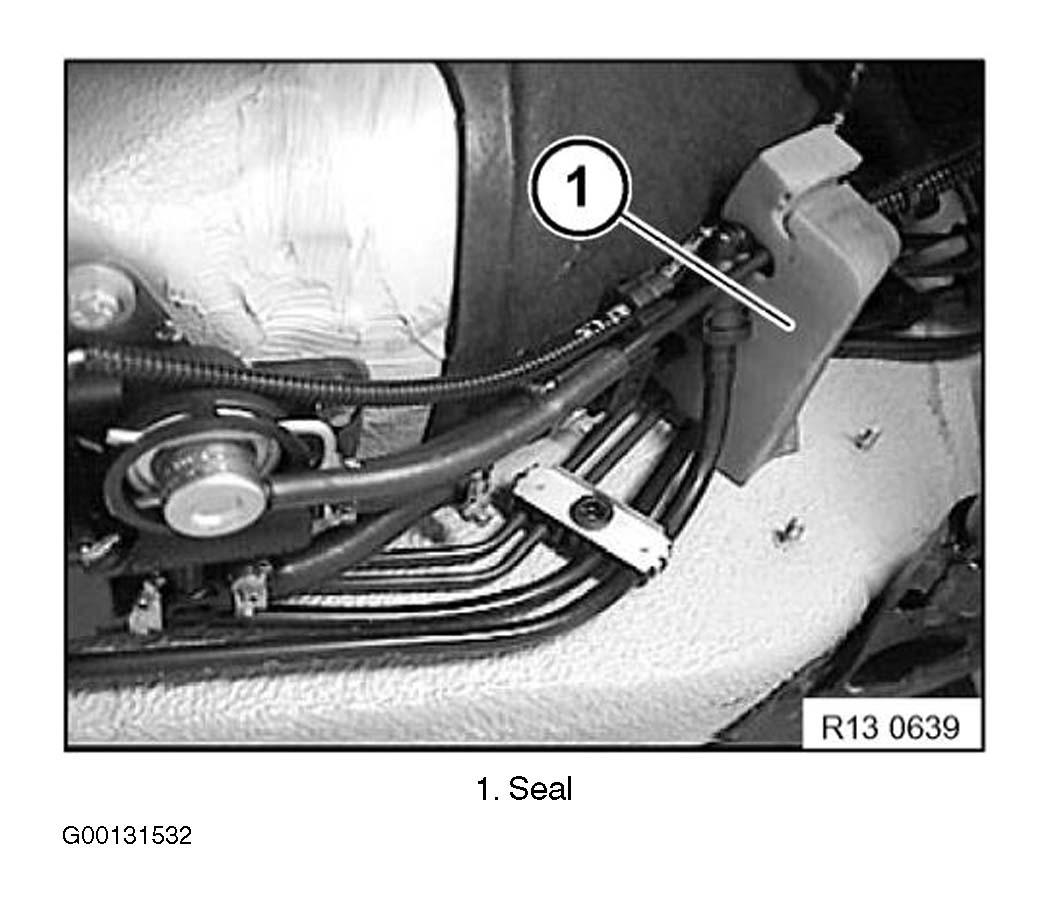

Fig 5: Locating Seal (6-Cylinder)
G00131532Courtesy of BMW OF NORTH AMERICA, INC.
