Variable Camshaft Timing Control System -- Repair (G42)
>>
11 36 Variable Camshaft Timing Control System (VANOS)
>>
11 36 044 Remove and install/replace the exhaust camshaft adjuster (230i)
>>
Removing bottom deformation element
Removing bottom deformation element

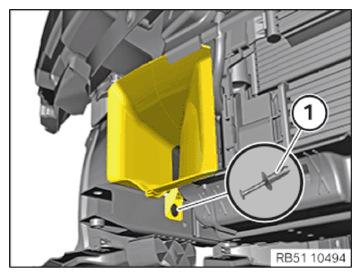

Release expanding rivet (1).
Courtesy of BMW OF NORTH AMERICA, INC.

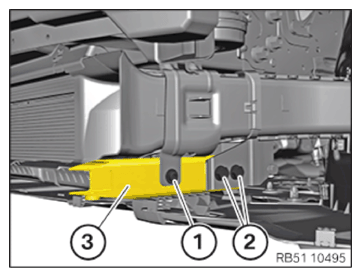

Release the screw (1).
Loosen screws (2).
Feed out and remove the deformation element (3) to the front.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
