11 36 Variable Camshaft Timing Control System (VANOS)
>>
11 36 042 Removing and installing/replacing intake adjuster (230i)
>>
Removing intake adjuster
Removing intake adjuster
NOTE:

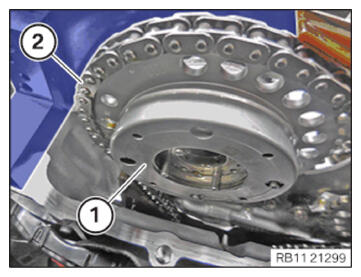

The figure shows the rear of the engine.
Pull out and remove intake adjuster
(1)
from the timing chain
(2)
.
