When replacing intake camshaft: Remount camshaft sensor wheel

• Rotate intake camshaft, if necessary in the position shown up to the recess (2)  .
• Loosen screw (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

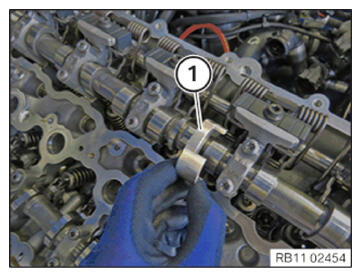

• Guide out and remove the camshaft sensor wheel (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Guide the camshaft sensor wheel (1)  into the new intake camshaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

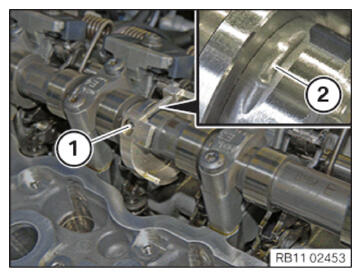

• Rotate intake camshaft, if necessary in the position shown.

NOTE: The recess (2) must point up.

• Position camshaft sensor wheel and tighten the screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Camshaft sensor wheel to intake camshaft
  M4 x35	Tightening torque	4.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
